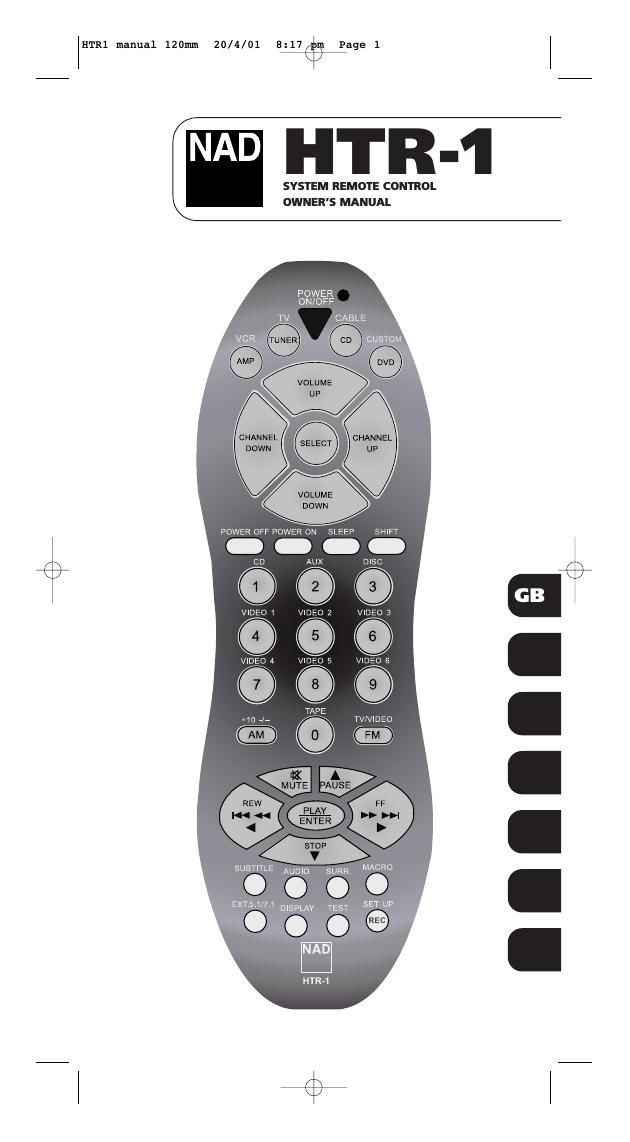

Nad HTR 1 Owners Manual
This is the 16 pages manual for Nad HTR 1 Owners Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Nad HTR 1 Owners Manual (Ocr-read)
Page 1
2 GB HTR1 manual 120mm 20/4/01 8:17 pm Page 2
Page 2
3 GB NAD HTR-1 UNIVERSAL REMOTE CONTROL Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6 General . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6 Inserting & replacing batteries & back-up . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 Key Backlighting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 Operating range . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 Using the HTR-1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6 Device keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 Status LED . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 Setting up Pre-programmed codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7 By Library search . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 By Manufacturing ID code . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 Code Recall. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 Learning remote commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9 Setting up Macros . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10 Reset to factory default settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11 Code listing table . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12 HTR1 manual 120mm 20/4/01 8:17 pm Page 3
Page 3
4 GB USING THE NAD HTR-1 UNIVERSAL REMOTE CONTROL WITH THE NAD T761 AV RECEIVER The NAD HTR-1 Universal Remote control packed with your NAD T761 AV receiver has been pre-configured to operate all controls. Besides operating the receiver, the HTR-1 can replace up to eight remote controls for different devices. It has a database of remote control commands built-in for a large range of different brands and devices. In case your particular brand or model isnt featured in the database, the HTR-1 can also learn remote commands from the original remote control of the device. Refer to the HTR-1 instruction manual on how to program. The table below indicates the locations and functions available; the numbers refer to the drawing in the NAD HTR- 1 manual. Refer to the T761 instruction manual for explanation of specific functions. Make sure the AMP mode has been selected when using the HTR-1 Universal Remote Control to operate your receiver. No. Key description T761 function 2 POWER ON/OFF Power On/Off 3 AMP (VCR), TUNER (TV), CD (CABLE), DVD (AUX) Select AMP for T761 4 VOLUME UP/DOWN Master Volume Up/Down 5 CHANNEL UP/DOWN Preset/Tune Up/Preset/Tune Down 6 SELECT Preset/Tune mode 7 POWER OFF & POWER ON Power Off & Power On 8 SLEEP Sleep 9 SHIFT -- 10 1 (CD), 2 (AUX), 3 (DISC),... ...9 (VIDEO 6), 0 Input select 11 AM (+10 -/-) Select AM 12 FM (TV/VIDEO) Select FM 13 PAUSE OSD Cursor Up 14 MUTE Volume Mute 15 & OSD Cursor Right & Left 16 PLAY/ENTER Enter 17 STOP OSD Cursor Down 18 AUDIO Tone Control 19 SUBTITLE Dynamic Range 20 EXT 5.1/7.1 Ext 5.1 21 DISPLAY Display 22 SURR. Surround Mode 23 MACRO -- 24 SETUP/REC Channel select 25 TEST Surround Test On/Off HTR1 manual 120mm 20/4/01 8:17 pm Page 4
