Nad C 717 Brochure
This is the 3 pages manual for Nad C 717 Brochure.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Nad C 717 Brochure (Ocr-read)

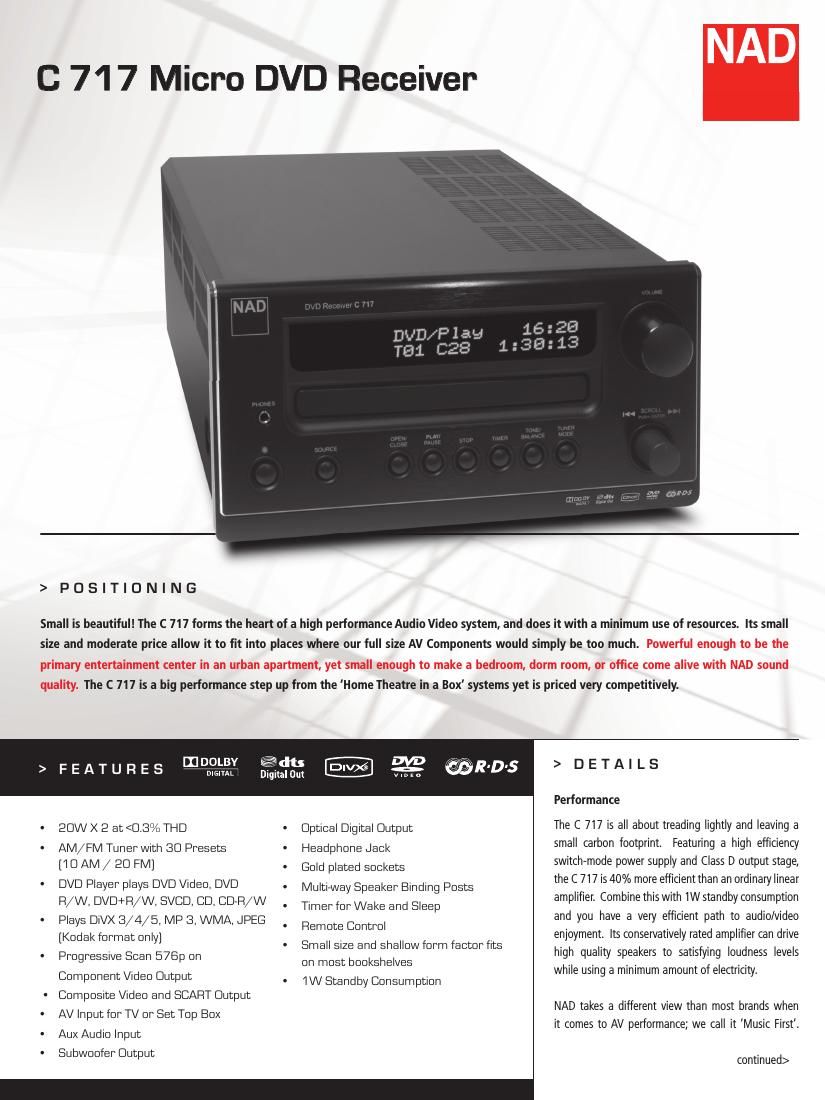

Page 1
Our philosophy states that pure music listening requires a higher level of sonic performance than movie or TV dialog. Music First demands that our AV products meet the same high standards for sonic performance as our highly acclaimed stereo components. Video performance is also exemplary whether you use the progressive scan feature for digital TVs or the standard interlaced output with older analog sets. These settings are available via Component and SCART to interface with any modern TV. Picture is crisp but natural without any exaggerated sharpness added. Colors are natural and vibrant with excellent contrast and detail, even in the shadows. Features The C 717 is plush with useful features. The included disc spinner plays a wide variety of formats from DVD videos to MP3s burned on a CD-R. Also on board is a high performance AM/FM tuner with 30 preset station memory and RDS text display. The C 717 can be set to wake you with music from the FM Tuner or the DVD drive. All functions can be controlled via the wireless remote handset. There are also extra inputs and outputs to allow for system expansion. Popular options are the addition of an active subwoofer, and the ability to feed your satellite box via the C 717. The picture will be forwarded to your TV and the sound sent to your stereo speakers. The DVD Player allows you to Search, Zoom and Scan DVDs both Fast and Slow. For CD playback there are options to Program speci c tracks, Random Play and Repeat Play. Bass and Treble controls allow ne tuning of the sound to match the music and your speakers. Value By keeping things simple NAD is able to offer very high levels of performance at a remarkable price. The ability to use a wide variety of loudspeakers in a 2.0 or 2.1 con guration provides system options unavailable with all-in-one systems, and allows you to select the perfect speaker combination for your listening environment. Additionally the very high ef ciency ampli cation will save you money every time you watch a movie or listen to music. The C 717s small size allows it to occupy desktops and bookshelves where similarly high performance components would never t. > DETAILS > REAR LINE DRAWING
Page 2
C 717 Micro DVD Receiver NAD Electronics International reserves the right to change specifi cations or features without notice. NAD is a registered trademark of NAD Electronics International. All rights reserved. No part of this publication may be reproduced, stored, or tr ansmitted in any form whatsoever without the written permission of NAD Electronics International. © 10/08 NAD Electronics International. www.NADelectronics.com > SPECIFICATIONS Continuous output power into 6 Ω 20 W IHF dynamic power 6 Ω 30 W Tone controls Treble ±10dB Bass ±10 dB Damping factor > 30 Input impedance (R & C) 47 kΩ Input sensitivity 300 mV Voltage gain 33 dB Frequency response ± 3 dB (ref. 10 Hz to 20 kHz) Signal/noise ratio, A-weighted 90 dB Total harmonic distortion at rated power 0.3 % FM BAND Tuning range 87.50 MHz to 108.00 MHz Usable Sensitivity 20 dBu (98 MHz, SN 30dB) Signal/Noise Ratio (60 dBµ IHF-WTD Mono) 65 dB 60 dBµ IHF-WTD Stereo) 60 dB Channel separation (60 dBµ) 1 kHz 30 dB Capture ratio (40 dBµ) 3 dB AM suppression 40 dB Total harmonic distortion Mono 1.0 % Stereo 1.0 % AM BAND Tuning range 522 kHz to 1629 kHz Usable sensitivity 73 dB Signal/Noise ratio 32 dB Total harmonic distortion 3 % DVD/CD PLAYER Frequency response CD ± 3 dB (ref. 10 Hz to 20 kHz) DVD ± 3 dB (ref. 10 Hz to 20 kHz) Signal-to-noise ratio (audio) CD 95 dB DVD 95 dB Signal-to-noise ratio (video) 65 dB Dynamic range (audio) 75 dB Total Harmonic Distortion 0.007% Dimension and Weight Dimensions (W x H x D) Net 8.5 x 5 5/8 x 12 1/2 218 x 119 x 316 mm Net weight 6.4lbs (2.9 kg) Shipping weight 9.7lbs (4.4 kg) Note: Gross dimensions not available at this time.
