Nad C 565 BEE Owners Manual
This is the 3 pages manual for Nad C 565 BEE Owners Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Nad C 565 BEE Owners Manual (Ocr-read)

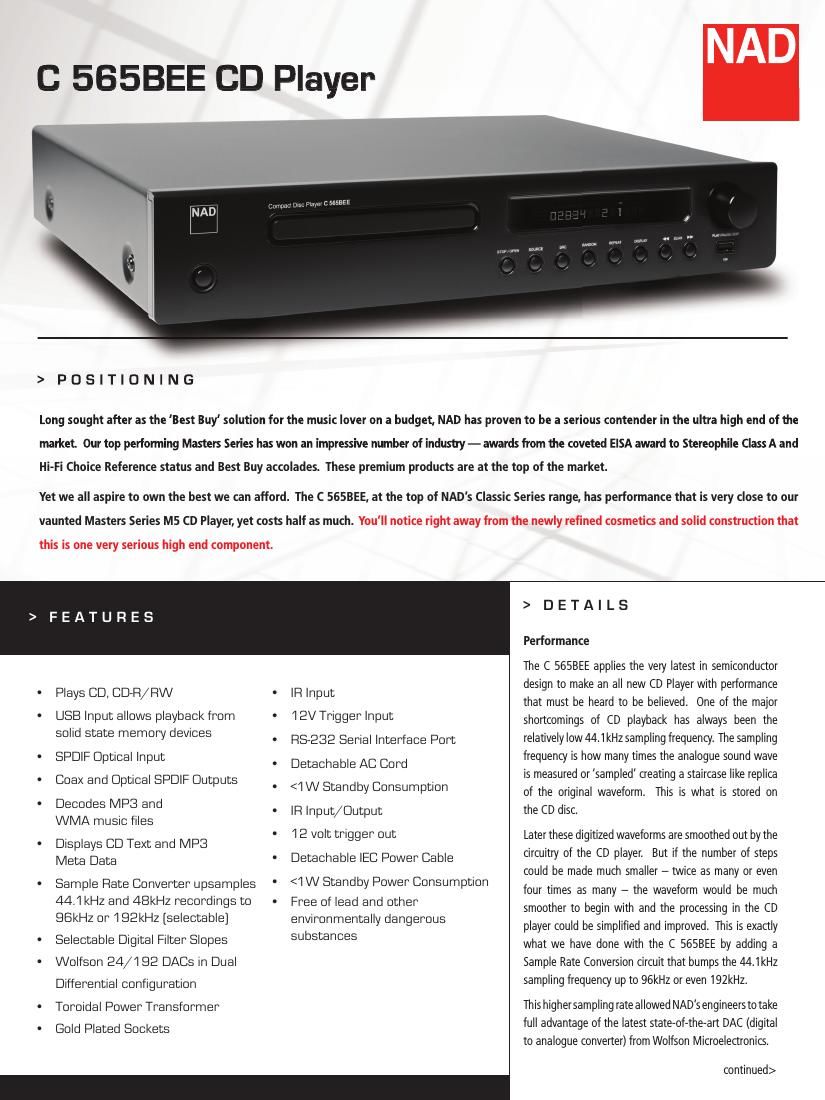

Page 1
Offering 24 bit resolution and up to 192kHz sampling rate, this DAC is a perfect complement to our Sample Rate Converter. Although the Signal to Noise Ratio of this DAC is speci ed at a very high 128dB, we use two of them in a Dual Differential con guration for even better performance. But just having premium parts is no guarantee of performance. We use ultra clean multiple regulated power supplies to feed the different types of circuits and mechanical parts that make up the C 565BEE. Careful circuit layouts, short signal paths, and rigorous attention to every detail insure that performance is maximized. Because the Sample Rate Converter pushes the sampling frequency very high, we can use a better sounding digital lter with less group delay. This lter also has a user selectable roll off slope to allow ne tuning by ear. The analogue circuitry too must be at the cutting edge of performance. NAD uses the best quality FET audio OpAmps selected for their very wide bandwidth and low noise. Able to deliver ample current and with a very low source impedance, the C 565BEE is less sensitive to cable capacitance. Features The C 565BEEs superb digital and analogue performance can also be applied to other types of media besides CD. The rear panel optical digital input caters to a wide variety of digital playback devices and the front panel USB port allows music les stored on a USB Memory Key or USB Hard Disc Drive to be played back using the superior performance capability of the C 565BEE. MP3 and WMA as well as uncompressed WAV les are fully supported whether they are stored on CD-R, digital tape or mini-disc or USB storage device. Source inputs are easily selectable from either the front panel or via the supplied IR remote. CD Text and Metadata from MP3 les is displayed on the front panel two line display, along with time, track, and other program data simultaneously. Display icons indicate selected input, lter slope and sampling rate. We have also designed the front panel controls to make it faster and easier to browse large collections of music les by adding a rotary knob that controls both skip and play/pause functions. Twist the knob clockwise and you skip forward; counterclockwise skips back. Push the knob to initiate play. It is so intuitive to operate that youll soon wonder how you lived before without it. Green Features NAD has responded quickly and responsibly to the new awareness of environmental damage caused by human activity. The C 565BEE is manufactured without the heavy metals that have been identi ed as harmful to the environment and manufacturing processes meet the latest stringent international standards. Standby power consumption is best in class at <1 watt. Value Purchasing the C 565BEE, with its expanded capabilities, is much more than just buying a new CD Player. Not only does it make an instant improvement in the sound of every CD in your collection, but also it allows the introduction of new media into your stereo system via the USB input. The convenience of database storage with audiophile sound quality is an addictive combination! Quickly browsing and selecting from the expanded possibilities of new media makes listening to music on your stereo more enjoyable than ever before. We encourage you to compare the performance of the C 565BEE to CD players costing twice as much and more. The expertise and experience of NADs design engineers makes the difference. Innovative design and faultless execution, combined with NADs philosophy of frill-free simplicity, result in superb performance and value. > DETAILS C 565BEE CD Player
Page 2
C 565BEE CD Player NAD Electronics International reserves the right to change specifications or features without notice. NAD is a registered trademark of NAD Electronics International. All rights reserved. No part of this publication may be reproduced, stored, or tr ansmitted in any form whatsoever without the written permission of NAD Electronics International. © 10/08 NAD Electronics International. www.NADelectronics.com > SPECIFICATIONS General Parameters Output level Analog 2.2 ± 0.1 V Optical -22.5 ± 3.5 dBm Coaxial 650 ± 150 mV Frequency response ± 0.3 dB (ref. 0 dB 20 Hz-1 kHz) ± 0.5 dB (ref. 0 dB 1 kHz-20 kHz) Total harmonic distortion <0.01 % (ref. 1 kHz) Signal/Noise ratio 110 dB (A-weighted, ref. 1 kHz) Channel balance ± 0.5 dB (ref. 0 dB 1 kHz) Dynamic range >95 dB Channel separation >90 dB De-emphasis -3.73 to -5.33 dB (ref.0 dB 5 kHz) -8.04 to -10.04 dB (ref.0 dB 16 kHz) Linearity (ref. 0 dB 1 kHz) ± 0.01 dB (at -3 dB) ± 0.02 dB (at -6 dB) ± 0.05 dB (at -20dB) ± 0.15 dB (at -60dB) Physical Specifications Dimensions (W x H x D) Net 435 x 70 x 285 mm 17 1/8 x 2 3/4 x 11 1/4 Gross 435 x 86 x 293 mm 17 1/8 x 3 3/8 x 11 1/2 Net weight 11.46 lbs (5.2 kg) Shipping weight 14.5 lbs (6.6 kg) * Gross dimensions include volume knob / speaker ternimals / connectors\ / feet. Note: Installers should allow a minimum clearance of 2- 4 inches for wire managment. > REAR LINE DRAWING
