Nad C 542 Technical Bulletin
This is the 3 pages manual for Nad C 542 Technical Bulletin.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Nad C 542 Technical Bulletin (Ocr-read)
Page 1

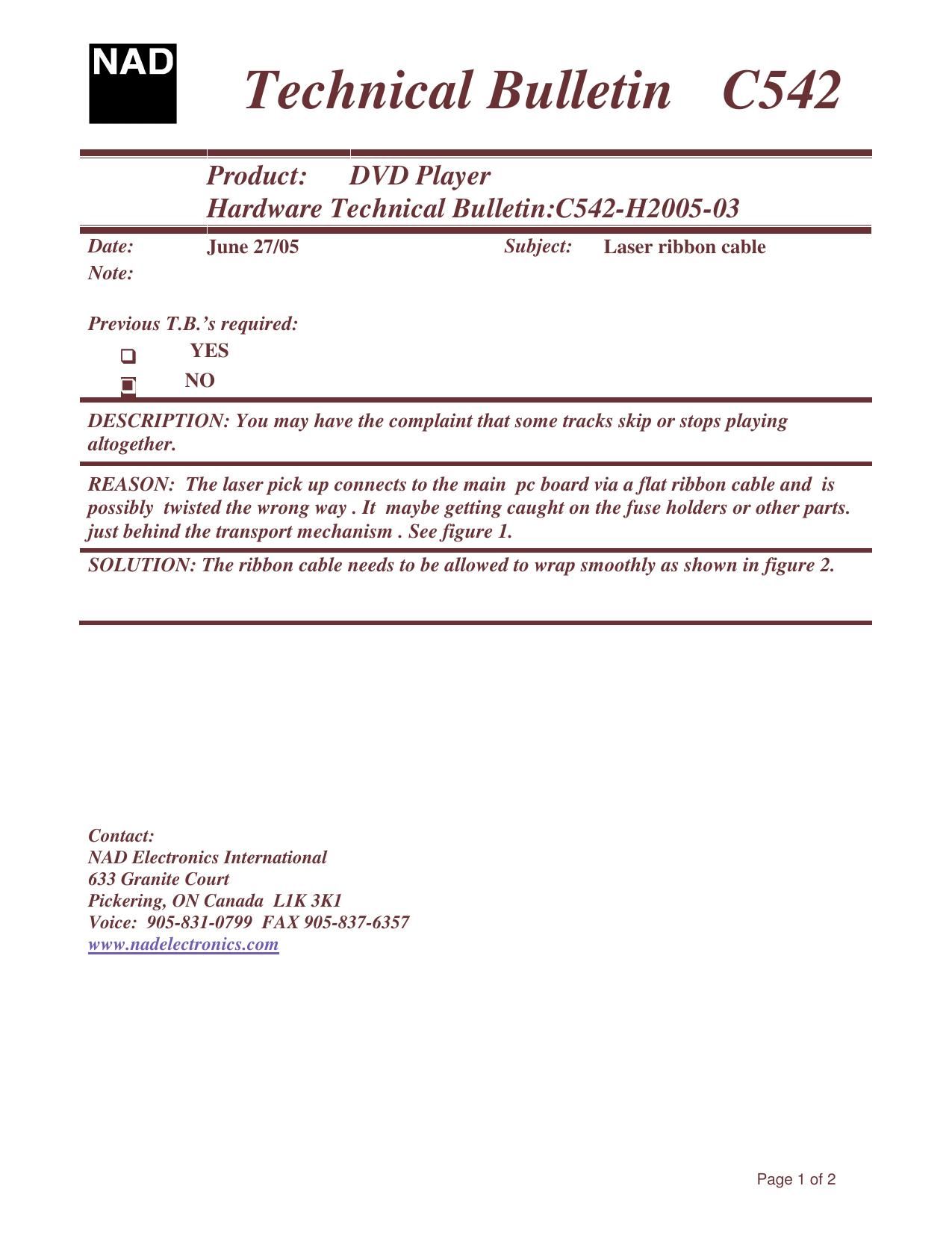

Page 2 of 2 Technical Bulletin C542 Product: DVD Player Hardware Technical Bulletin: C542-H2005-03 Figure 1 Figure 2 CORRECT INCORREC T
Page 2
Page 1 of 1 Technical Bulletin C542 Product: CD Player Hardware Technical Bulletin: C542-H2005-04 Date: June 27/05 Subject: Improved Playability Note: Implemented in production starting from serial #: G56C54224800 Previous T.B.s required: q qq q YES q qq q NO DESCRIPTION: You may have the complaint that some d iscs are difficult to play . REASON: The rf eyepattern level can be slightly lower than expected when reading some cds. SOLUTION: Increase rf level from laser pick up. Cha nge the following parts to increase the rf level. 1. Change resistor R227 from 100R to a jumper wire. 2. Change resistor R103 from 20K to 15K. 3. Change resistor R218 from 15K to 47K. 4. Change capacitor C221 from 0.1uF to 3900 pF. Contact: NAD Electronics International 633 Granite Court Pickering, ON Canada L1K 3K1 Voice: 905-831-0799 FAX 905-837-6357 www.nadelectronics.com
