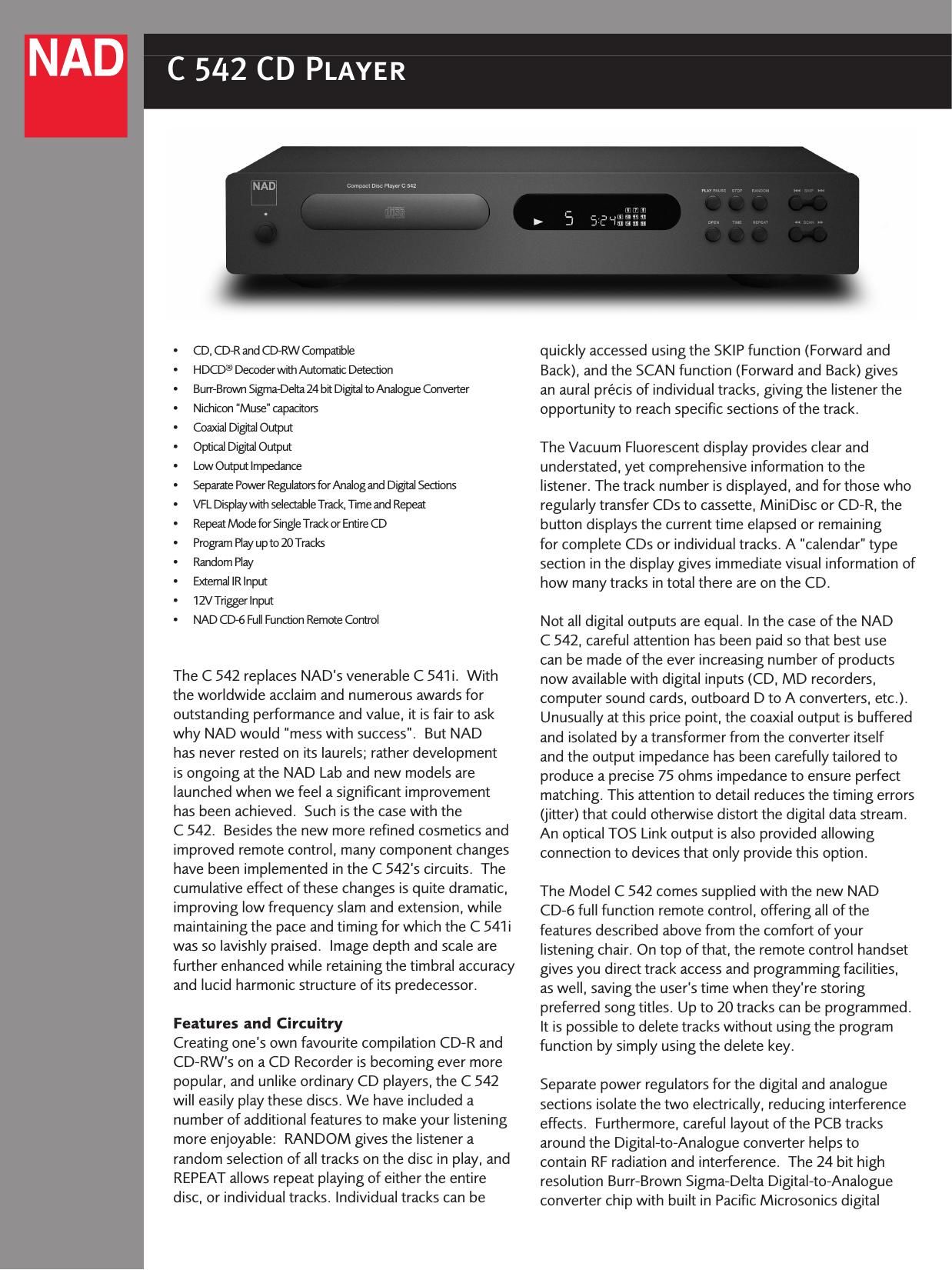

Nad C 542 Brochure

Page 1

NAD Electronics International reserves the right to change specifications or features without notice. NAD is a registered trademark of NAD Electronics International. All rights reserved. No part of this publication may be reproduced, stored, or transmitted in any form whatsoever without the written permission of NAD Electronics International. © 10/03 NAD Electronics International. www.NADelectronics.com filter was chosen for its excellent low-level linearity and detail retrieving capabilities. Metal film resistors and polypropylene capacitors are used in key areas to ensure a highly accurate frequency response. High quality Burr Brown 2134 professional grade op-amps are used instead of the much lower grade and type normally found at this price level. Apart from the single output capacitor, no other capacitors are used in the signal path. The output impedance is very low at 150 ohms, making the NAD C 542 less sensitive to cables or the ancillary equipment it is partnered with. We urge you to listen to the NAD C 542 with a wide range of program material and with the best ancillary equipment to fully appreciate the refinement of this modest looking – and by high end standards inexpensive – CD player. You can spend a lot more money for a CD player, but we think youll have a difficult task finding a more musically complete and rewarding performance than that offered by the NAD C 542. A new benchmark has been set. CD Section Disc Capacity Programming Capability Digital-to-analogue conversion Digital Filter Analogue filter Frequency Response 5Hz-20kHz De-emphasis error THD (at 0dB, 1kHz) Dynamic Range Linearity Signal/noise ratio, A-weighted Channel separation at 1kHz Channel separation at 10kHz Wow and flutter Output impedance Output level at 0dB Digital error correction Digital output Remote Control Physical Specifications Dimensions (W x H x D) Net Weight Shipping WeightShipping Weight 1 x 120mm or 80mmCD-R & CD-RW Compatible 20 Tracks 24 bit Sigma-Delta24 bit Sigma-Delta 8 x oversampled 4 pole active ±0.5dB <0.5dB 0.0035% 98dB ± 0.5dB; 0 to -90dB 108dB >110dB >80dB Quartz accuracy 150Ω 2.2V rms CIRC, double error correction in C1 and C2 Yes - Coaxial NAD CD 6 17 1/8 x 2 3/4 x 11 1/4 (435 x 70 x 285mm) 9.0 lbs (4.1kg) 10.8 lbs (4.9kg)
