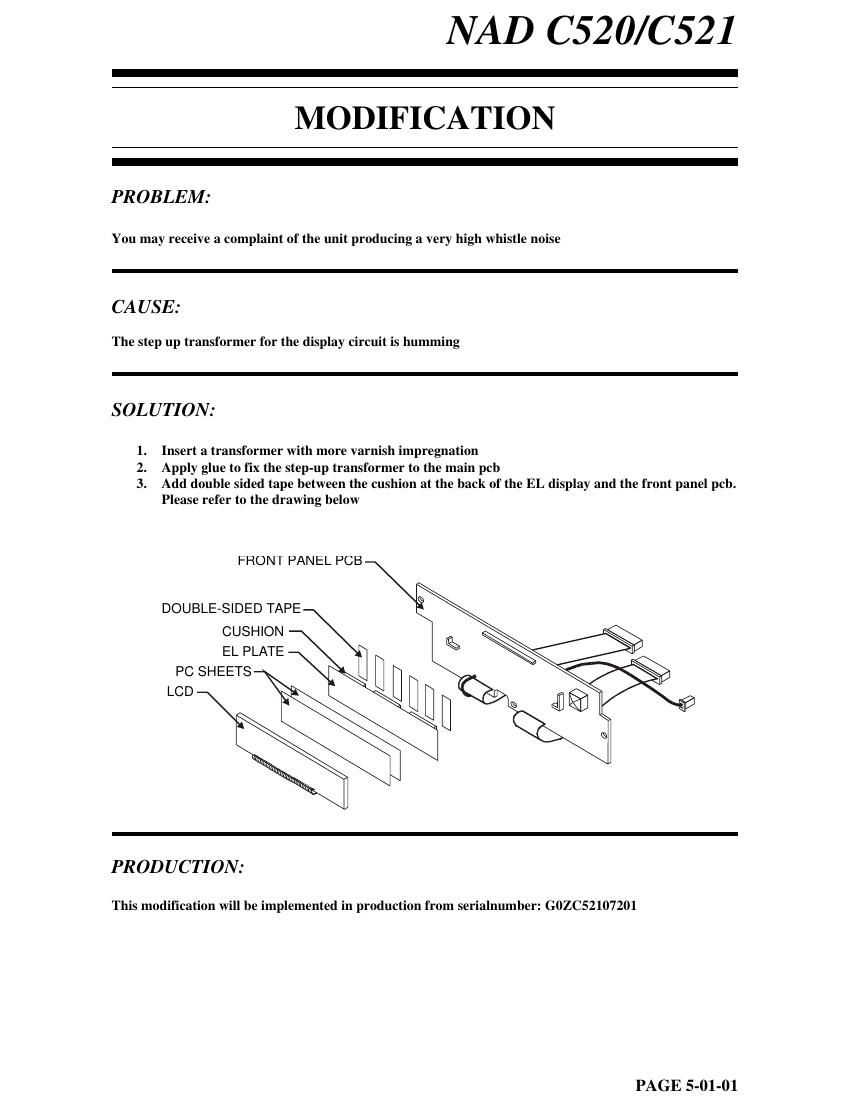

Nad C 520 Service Information 2

Extracted text from Nad C 520 Service Information 2 (Ocr-read)


Page 1

Page 1 of 2 Technical Bulletin C521BEE Product: DVD Player Hardware Technical Bulletin:C521BEE-H2005-04 Date: June 27/05 Subject: Laser ribbon cable Note: Previous T.B.s required: q qq q YES q qq q NO DESCRIPTION: You may have the complaint that some t racks skip or stops playing altogether. REASON: The laser pick up connects to the main pc board via a flat ribbon cable and possibly is twisted the wrong way . It maybe gett ing caught on the fuse holders or other parts. just behind the transport mechanism . See f igure 1. SOLUTION: The ribbon cable needs to be allowed to w rap smoothly as shown in figure 2. Contact: NAD Electronics International 633 Granite Court Pickering, ON Canada L1K 3K1 Voice: 905-831-0799 FAX 905-837-6357 www.nadelectronics.com

Page 2

Page 2 of 2 Technical Bulletin C521BEE Product: DVD Player Hardware Technical Bulletin: C521BEE-H2005-04 Figure 1 Figure 2 CORRECT INCORREC T
