Nad C 370 Service Information
This is the 4 pages manual for Nad C 370 Service Information.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Nad C 370 Service Information (Ocr-read)
Page 1
Service Information C370 Circuit Change PROBLEM: There is a small residual output when the volume is set to minimum. CAUSE: Not enough attenuation of the volume control when the input level is high. SOLUTION: Increase the attenuation of the volume control by changing the value of R514 and R614 from 3R0 to any value up to 3R6. PRODUCTION: This circuit change has been implemented in production from serial number: H08C37000055. Contact: NAD Electronics International 633 Granite Court Pickering, ON Canada L1K 3K1 Voice: 905-831-0799 FAX 905-837-6357 NAD@www.NADelectronics.com
Page 2
NAD C370 ERRATUM SERVICE MANUAL Although the manual has been thoroughly checked before printing there is an error in the part list. Ref no. Old part New part RV3 09-16203-22M 09-16103-12M This reference can be found on page 15 of the manual. PAGE 3-01-01
Page 3

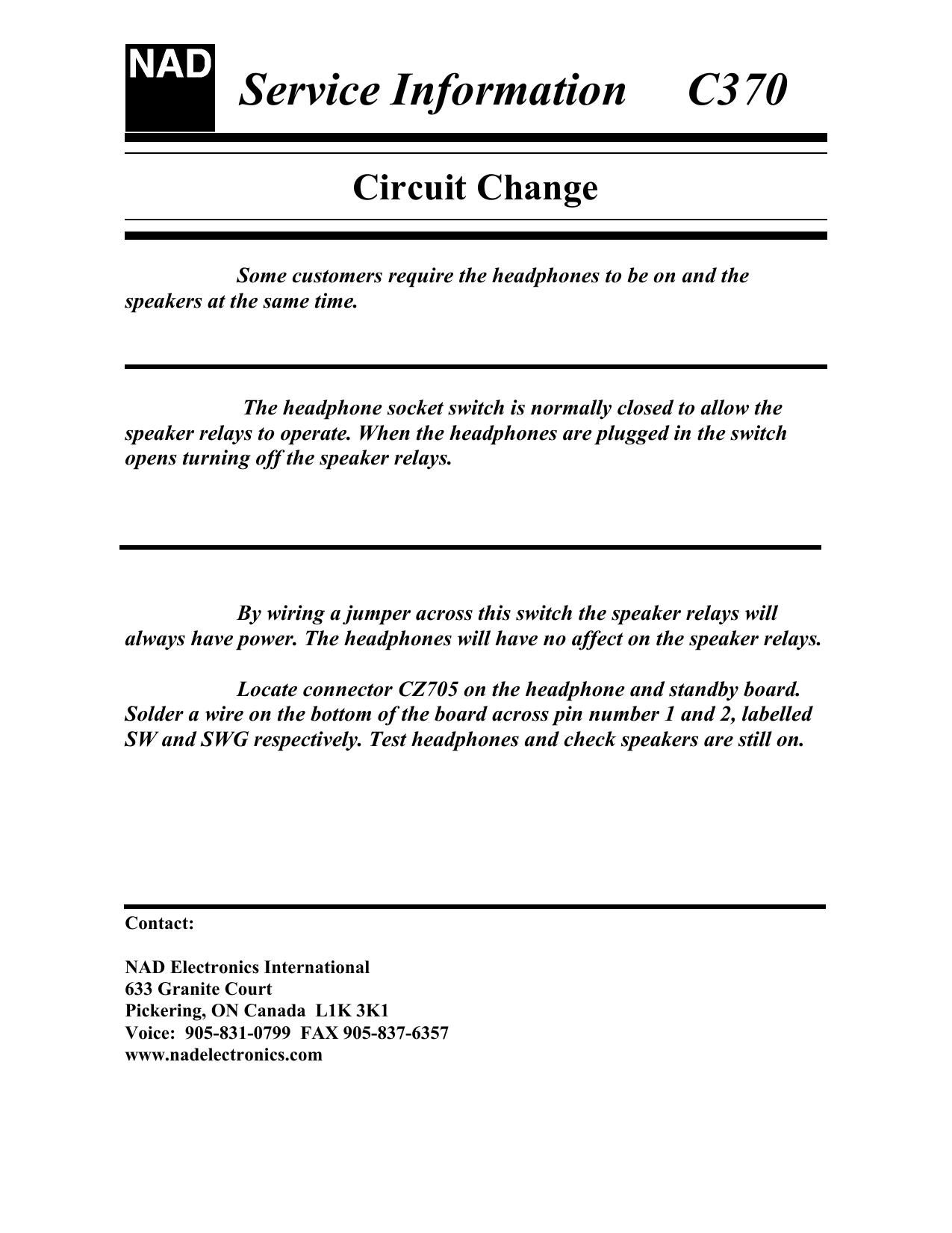

Service Information C370 Circuit Change Some customers require the headphones to be on and the speakers at the same time. The headphone socket switch is normally closed to allow the speaker relays to operate. When the headphones are plugged in the switch opens turning off the speaker relays. By wiring a jumper across this switch the speaker relays will always have power. The headphones will have no affect on the speaker relays. Locate connector CZ705 on the headphone and standby board. Solder a wire on the bottom of the board across pin number 1 and 2, labelled SW and SWG respectively. Test headphones and check speakers are still on. Contact: NAD Electronics International 633 Granite Court Pickering, ON Canada L1K 3K1 Voice: 905-831-0799 FAX 905-837-6357 www.NADelectronics.com
