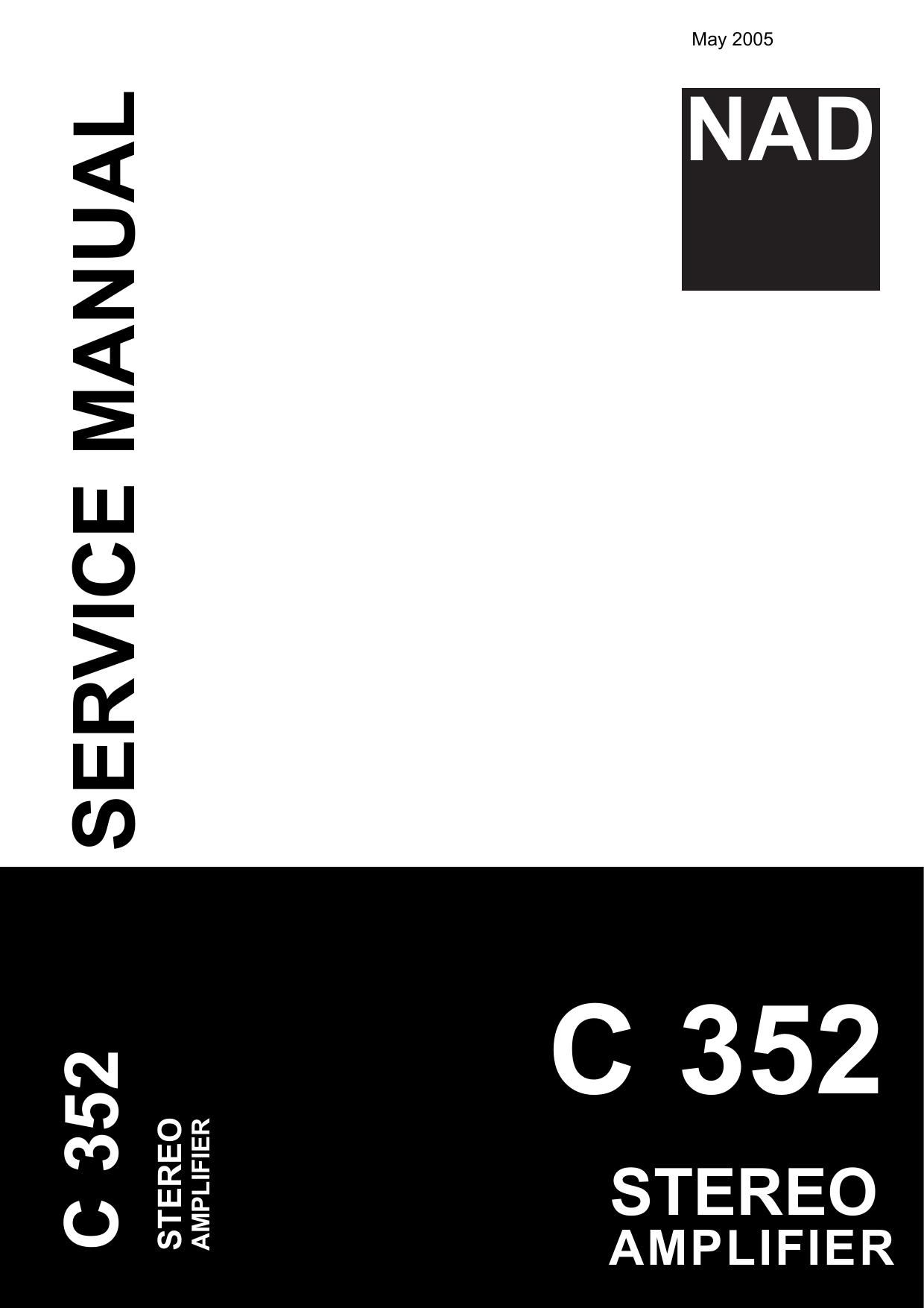

Nad C 352 Service Manual

This is the 18 pages manual for Nad C 352 Service Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.

Page: 1 / 18
Nad C 352 Service Manual

Extracted text from Nad C 352 Service Manual (Ocr-read)


Page 2

ALIGNMENT PROCEDURE (C352)

I. INITIAL ADJUSTMENT (No load connected)
A. OUTPUT OFFSET VOLTAGE
1. Connect a DC Millivoltmeter to L Channel speaker output terminals.
2. Turn unit ON" and adjust VR101 (100ohms) to get a reading on I0107 Pin 1,
which must be <100mV.
3. Connect the DC Millivoltmeter to R Channel speaker output terminals and adjust
VR102 (1000th) to get a reading on |C108 Pin 1, which must be <100mV.

B. IDLING CURRENT
1. Leave power ON" for a minimum of 5 minutes.
2. Connect a DC Millivoltmeter to TP101 and TP102, then adjust VR103 (300ohms)
for 5-6.5mV reading on meter.
3. Connect a DC Millivoltmeter to TP103 and TP104, then adjust VR104 (3000hms)
for 5-6.5mV reading on meter.

ll. FINAL ADJUSTMENT
Repeat procedure A and B for offset voltage and idling current alignment respectively.

TP101

VR103

TP102 D mm
D D
TP103
u
VR104
TP104 VR102
