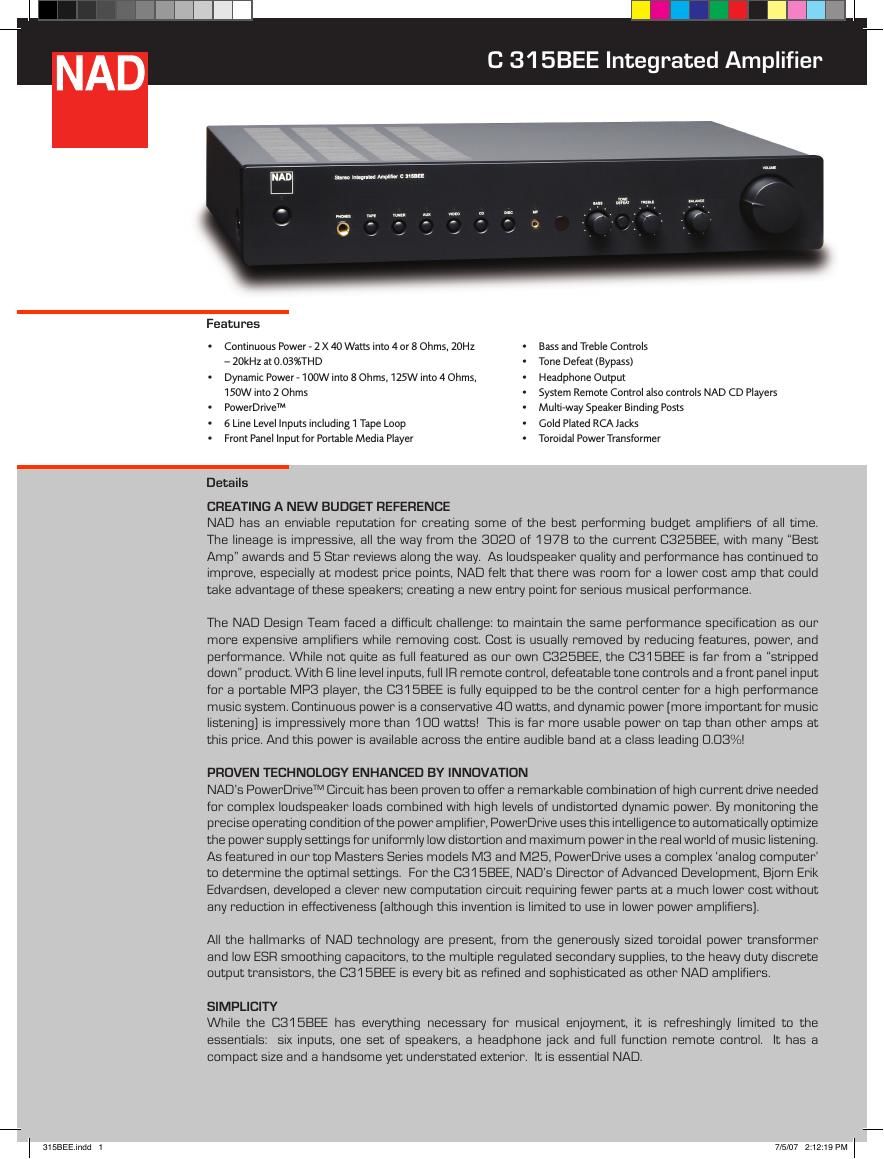

Nad C 315 BEE Brochure

Page 1

VALUE We are confident that the C315BEE will set new benchmarks for performance, both measured and audible, at this affordable price point. Unless you have power hungry speakers, listen at dangerously loud levels, or have a very large room, the C315BEE is likely to be all the amplifier youll ever need. Fundamental specifications for noise, distortion, power, stereo separation, and volume control tracking, are all class leading. Slightly more esoteric measurements like transient intermodulation distortion, dynamic crossover-notch distortion, power supply rejection and square wave rise time would be impressive on an amplifier costing many times its modest price. The sonic result of this high technology is a relaxed and inviting sound that digs out the subtle details in your favorite recordings and presents them across a panoramic stereo sound stage. The impressive dynamic power reserves make the C315BEE sound both articulate and alive. The silent background and low distortion gives a sense of solidity and presence to your music and brings out the best your loudspeakers have to offer. NAD Electronics International reserves the right to change specifications or features without notice. NAD is a registered trademark of NAD Electronics International. All rights reserved. No part of this publication may be reproduced, stored, or transmitted in any form whatsoever without the written permission of NAD Electronics International. © 06/07 NAD Electronics International. www.NADelectronics.com SPECIFICATIONS Pre-Amp Section Line level inputs Input impedance (R+C) Input sensitivity, rated power Maximum input signal Line level outputs Output impedance Tone Controls Treble Bass Power Amp Section Continuous output power into 8Ω Rated Distortion (THD 20Hz - 20kHz) Clipping power (maximum con. power 4/8Ω) IHF dynamic headroom at 4Ω IHF dynamic headroom at 8Ω IHF dynamic power at 8Ω IHF dynamic power at 4Ω IHF dynamic power at 2Ω Damping factor (ref. 8Ω, 1kHz) Voltage gain 50kΩ / 100pF 200mV7V Tape Source Z + 600Ω ±5dB at 10kHz ±8dB at 100kHz 40W (16dBW) 0.02%40W 60W, +17.8dB 45W, +16.5dB 95W (19.5dBW) 130W (20.8dBW) 180W (22.6dBW) >200 29dB Signal/noise ratio, A-weighted THD + Noise SMPTE IM IHF IM Headphone output impedance Physical Specifications Net Dimensions (W x H x D) Gross Dimensions (W x H x D)* Net Weight Shipping Weight * Gross Dimensions include volume knob / speaker terminals / connectors \ / feet. Note: Installers should allow a minimum clearance of 2 - 4 inches for wi\ re management. ref. 1W 95dB <0.02% <0.02% <0.01%68Ω 17 1/8 x 2 3/4 x 9 1/2 (435 x 70 x 242mm) 17 1/8 x 3 1/8 x 11 1/2 (435 x 80 x 292mm) 11.5 lbs (5.25kg)14.3 lbs (6.5kg) 315BEE.indd 2 7/5/07 2:12:20 PM
