Extracted text from Nad C 165 BEE Brochure (Ocr-read)

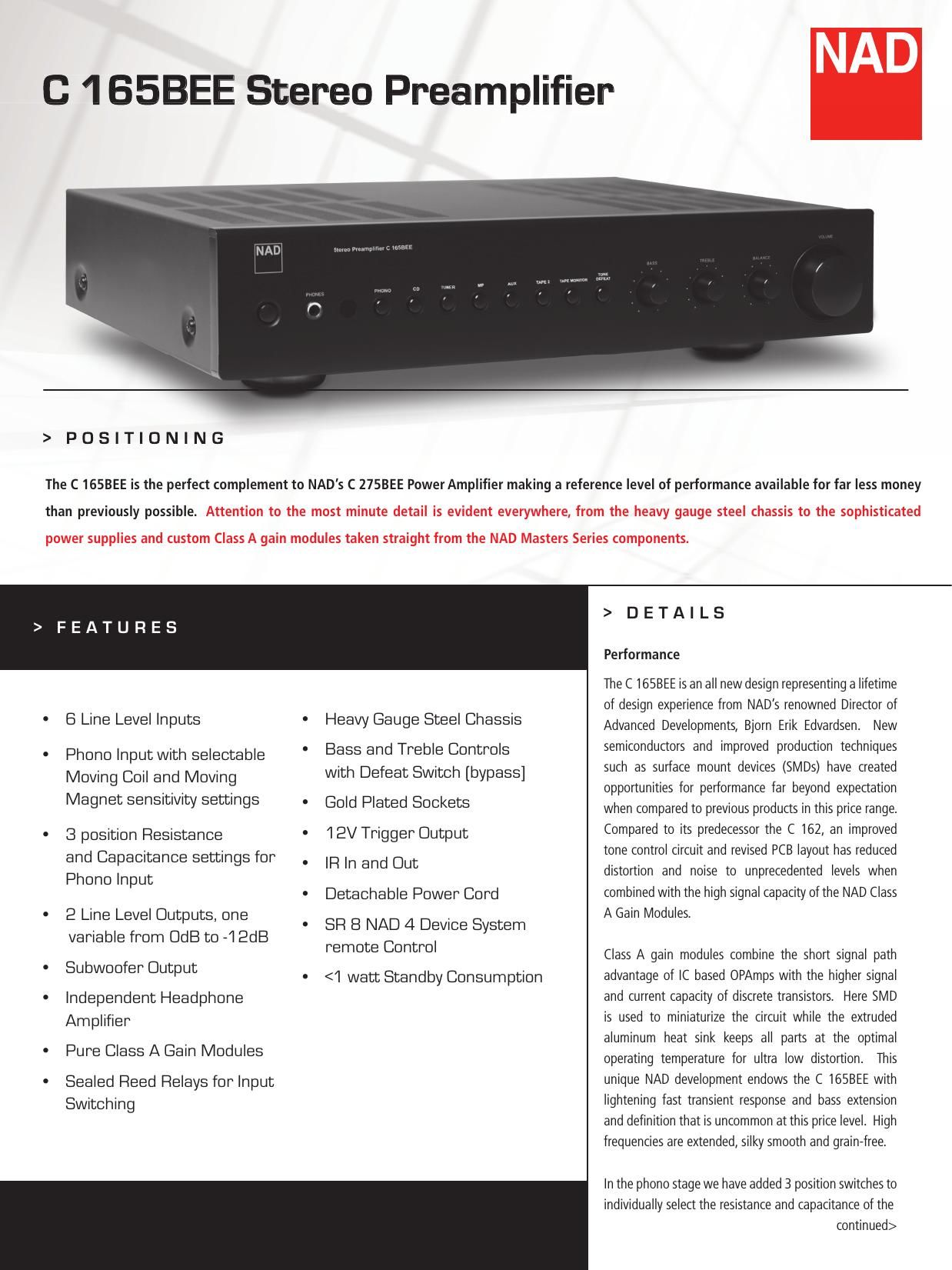

Page 1
phono stage to allow precise matching of most popular Moving Magnet and Moving Coil phono cartridges. Other re nements have lowered noise and improved the overload margin. Precision close tolerance parts are used to achieve nearly perfect RIAA response. Weve also improved the headphone amplifying circuit to better drive studio quality high impedance headphones. Taken together, these improvements mark a sharp upturn in performance that simply must be heard, to be fully appreciated! Features Unlike many high-end preamps that skimp on inputs and features, the C 165BEE has all the exibility you will ever need. Starting with 6 line level inputs and the previously mentioned MC/MM phono input, the C 165BEE also includes a superbly designed tone control circuit. While tone control circuits in general tend to hurt performance by adding noise and distortion, the C 165BEE is a textbook example of how to correctly implement high delity tone controls. Affecting only the frequency extremes they leave the critical midrange untouched. Their moderate action is perfect for touching up the tonal balance of all the less than perfect recordings in your collection. A Tone Defeat switch quickly selects at response and bypasses all the tone control circuitry. A full function remote control also includes controls for other NAD components allowing a one remote solution for your NAD system. Custom Installation Ready With a 12V trigger output and IR inputs and outputs on the rear panel, the C165BEE is ready to integrate with CI control systems. Discrete On/Off codes and direct access to inputs make programming easy. Green Features NAD has responded quickly and responsibly to the new awareness of environmental damage caused by human activity. The C 165BEE is manufactured without the heavy metals that have been identi ed as harmful to the environment and manufacturing processes meet the latest stringent international standards. Standby power consumption is best in its class at <1 watt. Value We dont think youll nd another preamp with the same pedigree, performance, and exibility at anywhere near the low price of the C 165BEE. Classic understated styling, superb build quality and true engineering sophistication at an affordable price; thats the NAD difference. > DETAILS C 165BEE Stereo Preamplifier > REAR LINE DRAWING
Page 2
C 165BEE Stereo Preamplifier NAD Electronics International reserves the right to change specifications or features without notice. NAD is a registered trademark of NAD Electronics International. All rights reserved. No part of this publication may be reproduced, stored, or tr ansmitted in any form whatsoever without the written permission of NAD Electronics International. © 10/08 NAD Electronics International. www.NADelectronics.com > SPECIFICATIONS Over All Specifications Line Level Input Input impedance (R and C) 100 kΩ+ 320 pF Input sensitivity 159 mV (ref. 500 mV out) Maximum input signal >9 V Signal/Noise ratio, A-weighted >108 dB (ref. 500 mV in 500 mV out, volume set to unity gain) >112 dB (ref. 2V out, Volume maximum) Frequency response ± 0.1 dB (ref. 20 Hz - 20 kHz, Tone defeat ON) ± 0.5 dB (ref. 20 Hz - 20 kHz, Tone defeat OFF) Frequency response (subwoofer out) 100 Hz (ref. -3 dB) Output Output impedance Pre out 75 Ω Tape out Source Z + 1 kHz Sub out 100 Ω Headphones 10 Ω Maximum voltage output Pre out >10 V into 600 Ω Tape out >10 V into 10 kΩ load Sub out >7 V into 1 kΩ load Headphones >7 V into 600 Ω >2 V into 32 Ω THD (CCIF IMD, DIM 100) >0.005 % dB (ref. 20 Hz – 20 kHz, 2 Vout) Tone Controls Treble ± 5 dB at 10 kHz (ref. 2V in 500 mV out) Bass ± 5 dB at 100 Hz (ref. 2V in 500 mV out) Power Consumption Normal operation 21 W Standby mode <0.8 W Phono Input Input impedance MC 40,100,600 Ω (R) 1 nF (C) MM 47 kΩ (R) 220,300,400 pF (C) Input sensitivity MC 0.15 mV (ref. 1 kHz 500 mV out) MM 2.6 mV (ref. 1 kHz 500 mV out) Input overload MC 0.8 mV/7 mV/65 mV (20 Hz/1 kHz/20 kHz) MM 14 mV/140 mV/1.2 (20 Hz/1 kHz/20 kHz) Gain MC in - Tape out 62.4 dB1 (ref. 1 kHz, 10 kΩ load) MM in - Tape out 36.7 dB (ref. 1 kHz, 10 kΩ load) THD (CCIF IMD, DIM 100) <0.009 % (ref. 20 Hz – 20 kHz, 5 Vrms Tape out) Signal/Noise ratio, IHF A-weighted MC >78 dB2 (ref. 0.5 mV) MM >78 dB3 (ref. 0.5 mV) RIAA response accuracy ± 0.5 dB (ref. 20 Hz – 50 Hz) ± 0.3 dB (ref. 50 Hz – 20 kHz) Infrasonic filter 10 Hz (at -3 dB) 5 Hz (at -14 dB) Physical Specifications Dimensions (W x H x D) Net 435 x 80 x 286 mm 17 1/8 x 3 x 11 1/4 Gross 435 x 99 x 315 mm 17 1/8 x 3 15/16 x 12 1/2 Net weight 13.23 lb (6 kg) Shipping weight 17.1 lb (7.8 kg) * Gross dimensions include volume knob / speaker ternimals / connectors\ / feet. Note: Installers should allow a minimum clearance of 2- 4 inches for wire managment.
