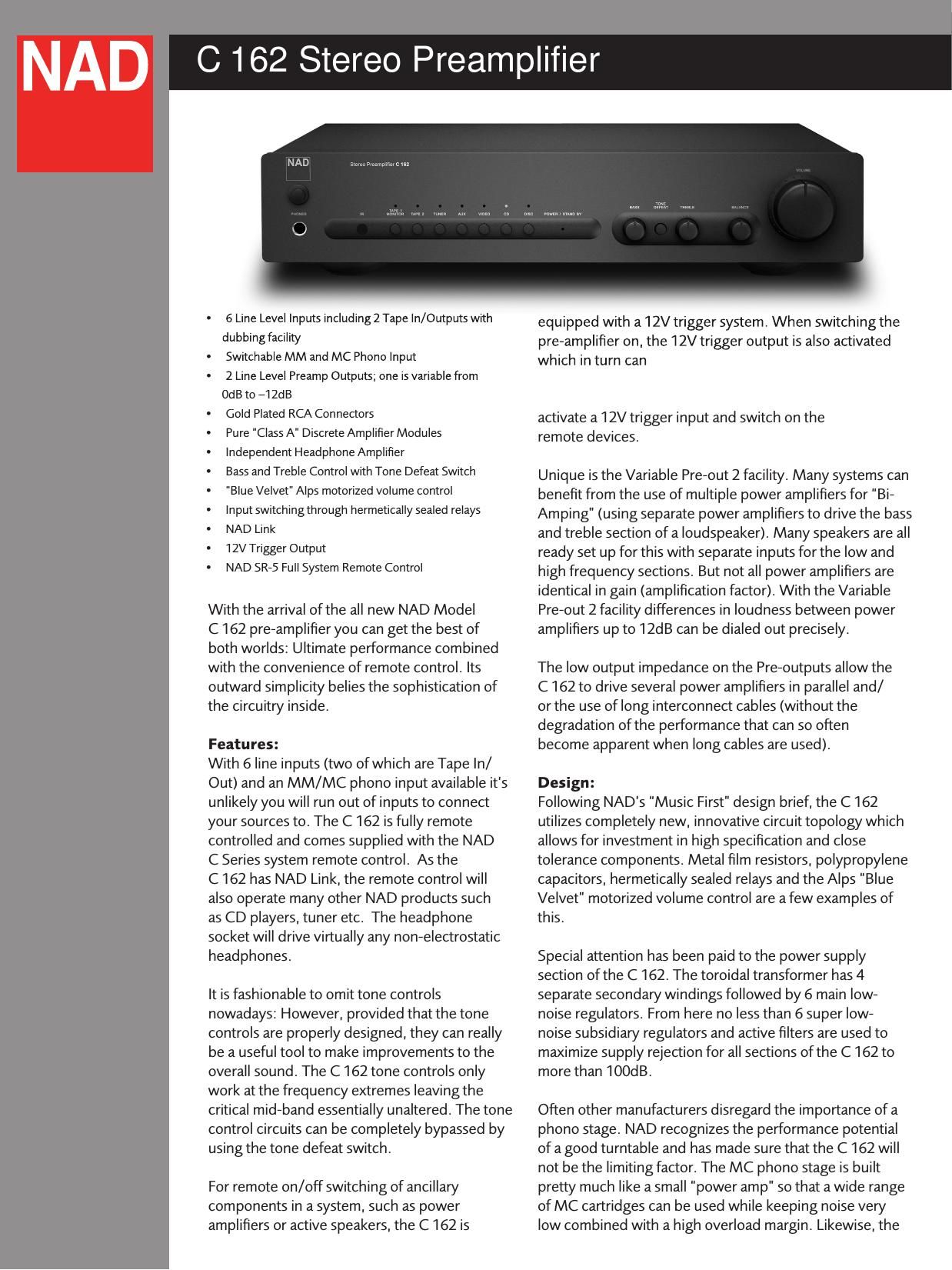

Nad C 162 Brochure

Page 1

MM phono stage also can cope with a wide range of cartridges and operates entirely in Class A. The built-in infrasonic fi lter fi lters out unwanted rumble components from the turntable or record itself but without introducing any signifi cant group delays. To ensure accurate RIAA response the entire circuit uses 1% tolerance metal fi lm resistors and 2% tolerance capacitors. Essentially the same circuitry used for the phono circuit is also used for both the line input and output stage: A modular FET amp operating in Class A. The line output stage is capable of driving 10V into 600 ohms. This, combined with the high input impedance of the line input amplifi er (500k ohms) means that the C 162 can be combined with a vast range of sources and power amplifi ers. For the inputs themselves, the NAD engineers have opted for using relays rather then using electronic switching between sources. All input and output sockets are gold plated. Often it is said that performance and convenience dont go together, but the NAD Model C 162 is the exception to the rule. At this reasonable price, the Model C 162 deserves to partner with the fi nest of ancillary components. Phono stage Phono R + C; MM Phono R + C; MC Input sensitivity ref. 0.5V 1kHz; MM Input sensitivity ref 200mV; MM Input sensitivity ref. 0.5V 1kHz; MC Input overload 20Hz/1kHz/20kHz; MM Input overload 20Hz/1kHz/20kHz; MC Signal/noise ratio (A-weighted + cartridge); MM Signal/noise ratio (Unweighted) MM Signal/noise ratio (A-weighted + cartridge); MC RIAA accuracy; MM (20Hz - 20kHz) RIAA accuracy; MC (50Hz - 20kHz) Line level inputs Impedance (R+C) Sensitivity; ref. 0.5V Maximum input signal Signal/noise A-weighted Frequency response (-3dB 3Hz - 70kHz) THD Line level outputs Output impedance, Pre-amp Tape Phones Maximum output level; Pre-amp Tape Phones Tone Control Treble Bass Remote control Physical Specifications Dimensions (W x H x D) Net Weight Shipping Weight 75Ω Source Z + 1kΩ 100Ω >15V >15V 190mV into 8Ω ±5dB at 10kHz ±5dB at 50Hz Yes 17 1/8 x 3 1/8 x 11 1/4 (435 x 80 x 285mm) 10.6 lbs (4.8 kg) 13.2 lbs (6 kg) 47kΩ + 470pF 100Ω + 1nF 2.1mV 115uV 20mV/230mV/2V 1.3mV/12mV/110mV 80dB ref. 5mV 81dB ref. 0.5mV ± 0.4dB ± 0.4dB 500kΩ + 320pF 150mV 17V >100dB ref. 0.5V ± 0.2dB 0.01% NAD Electronics International reserves the right to change specifi cations or features without notice. NAD is a registered trademark of NAD ElectronicsInternational. All rights reserved. No part of this publication may be reproduced, stored, or transmitted in any form whatsoever without the written permission of NAD Electronics International. © 10/03 NAD Electronics International. www.NADelectronics.com
