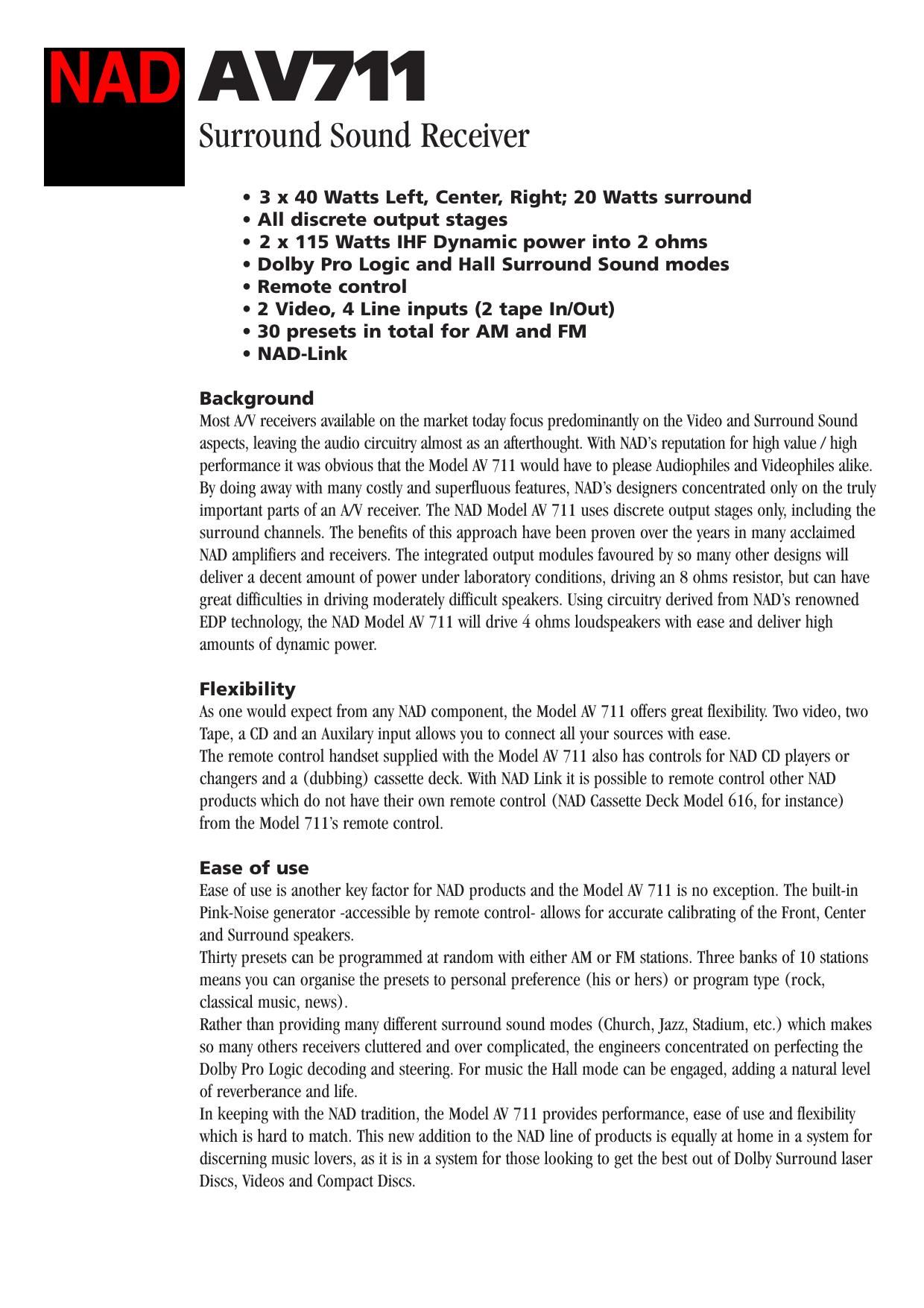

AV711

Surround Sound Receiver

- 3 x 40 Watts Left, Center, Right; 20 Watts surround
- All discrete output stages

- 2 x 115 Watts IHF Dynamic power into 2 ohms

- Dolby Pro Logic and Hall Surround Sound modes

- Remote control

- 2 Video, 4 Line inputs (2 tape InIOut)

- 30 presets in total for AM and FM

I NAD-Link

Background

Most A/V receivers available on the market today focus predominantly on the Video and Surround Sound
aspects, leaving the audio circuitry almost as an afterthought. With NADs reputation for high value / high
performance it was obvious that the Model AV 711 would have to please Audiophiles and Videophiles alike
By doing away with many costly and superfluous features, NAD's designers concentrated only on the truly
important parts of an A/V receiver. The NAD Model AV 711 uses discrete output stages only, including the
surround channels. The benefits of this approach have been proven over the years in many acclaimed
NAD amplifiers and receivers The integrated output modules favoured by so many other designs will
deliver a decent amount of power under laboratory conditions, driving an 8 ohms resistor, but can have
great difficulties in driving moderately difficult speakers. Using circuitry derived from NADs renowned
EDP technology, the NAD Model AV 711 will drive 4 ohms loudspeakers with ease and deliver high
amounts of dynamic power,

Flexibility

As one would expect from any NAD component, the Model AV 711 oflers great flexibility. Two video, two
Tape, a CD and an Auxilary input allows you to connect all your sources with ease.

The remote control handset supplied with the Model AV 711 also has controls for NAD CD players or
changers and a (dubbing) cassette deck. With NAD Link it is possible to remote control other NAD
products which do not have their ovm remote control (NAD Cassette Deck Model 616, for instance)
from the Model 711s remote control.

Ease of use

Ease of use is another key factor for NAD products and the Model AV 711 is no exception, The built-in
Pink-Noise generator -accessible by remote control< allows for accurate calibrating of the Front, Center
and Surround speakers.

Thirty presets can be programmed at random with either AM or FM stations. Three banks of 10 stations
means you can organise the presets to personal preference (his or hers) or program type (rock,
classical music, news).

Rather than providing many different surround sound modes (Church, Jazz, Stadium, etc.) which makes
so many others receivers cluttered and over complicated, the engineers concentrated on perfecting the
Dolby Pro Logic decoding and steering. For music the Hall mode can be engaged, adding a natural level
of reverberance and life.

In keeping with the NAD tradition, the Model AV 711 provides performance, ease of use and flexibility
which is hard to match. This new addition to the NAD line of products is equally at home in a system for
discerning music lovers, as it is in a system for those looking to get the best out of Dolby Surround laser
Discs, Videos and Compact Discs.

Page 2

SPECIFICATIONS - NAD AV 711

Amplifier section
Power Output:
distortion)

Surround Mode:

Total Harmonic Distortion
IM Distortion

Damping Factor
Sensitivity and Impedance
Frequency Response

Signal to Noise ratio Line:
Tuner section

Input Sensitivity

Frequency response SOHZ - 15kHz:

Total Harmonic Distortion
Stereo Separation
Signal to Noise Ratio

Physical specifications
Dimensions (W x H x D)
Net weight
Shipping weight

Stereo Mode:

5 to 50,000 HZ:

2 x 40 Watts (8 ohms within rated

2 x 60 Watts IHF dynamic power 8 ohms
2 x 90 Watts IHF dynamic power 4 ohms
2 x 115 Watts IHF dynamic power 2 ohms
3 x 40 Watts (L, C, R)

20 Watts (10 + 10) (S)

0.08% at rated power (Front)

0.08% at rated power (Front)

60 at 8 ohms (Front)

150 mV/ 50 kohms

i 1 dB

100 dB (IHF A)

1.3uV Mono; 2.511V Stereo

i 1.5dB

Mono: 0.15%; Stereo: 0.25%
45 dB at 1 kHz

Mono: 73 dB; Stereo: 67 dB

455 x 145 x 290mm
96kg
10.5kg

NOTE: NAD resrves the right to change specifications or design at any time Without notice. All specifications sre those in effect at time of printing
Dolliy and Pro Logic are registered trademarks of the Dolby Laboratories Licensing Corporation
