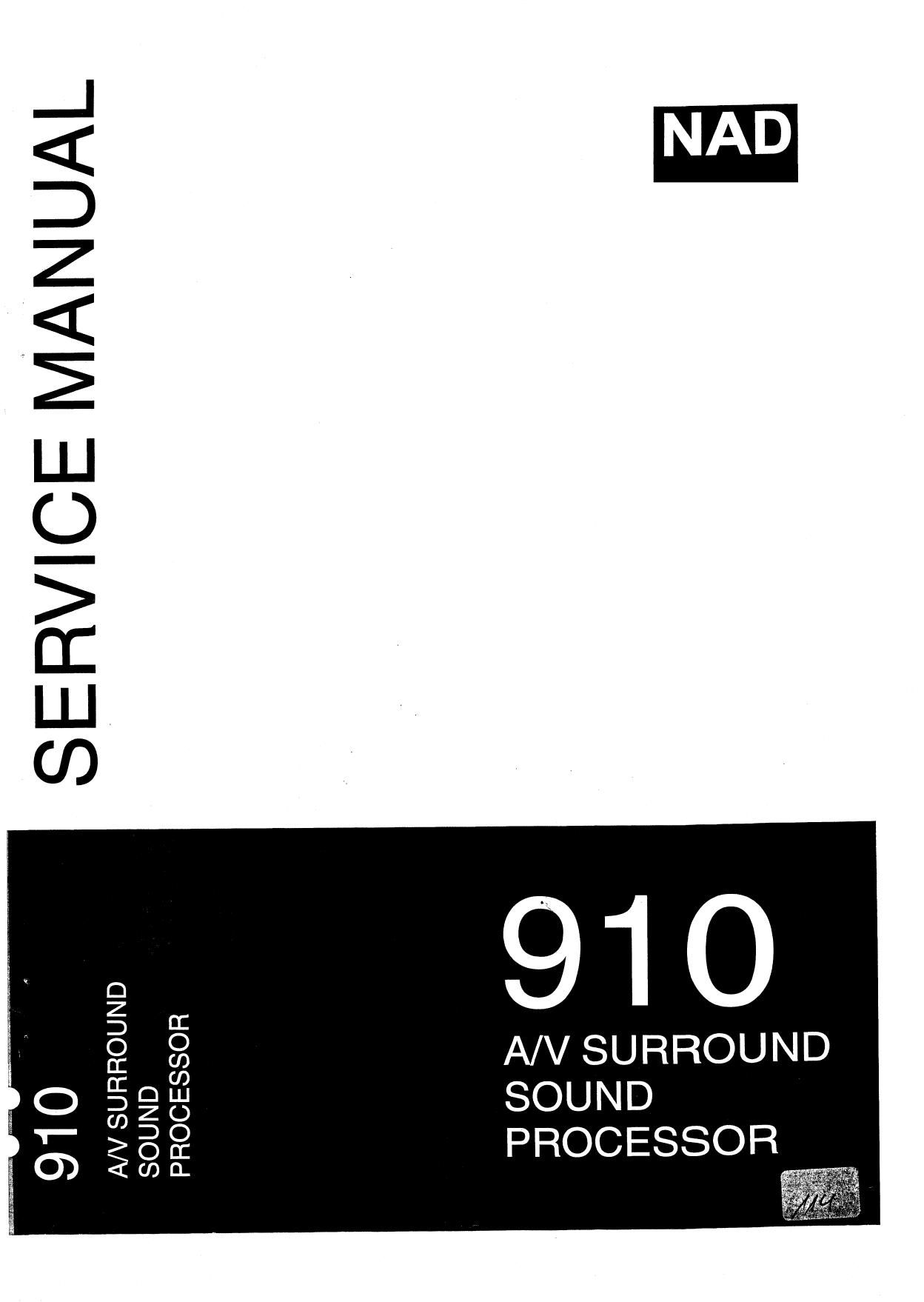

Nad 910 Service Manual
This is the 19 pages manual for Nad 910 Service Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Nad 910 Service Manual (Ocr-read)
Page 2
TABLE OF CONTENTS
Specifications ................................................ 3
Front Panel .................................................. 5
Rear Panel ................. , ................................. 5
Alignment Procedure .......................................... 5
Wiring Diagram ............................................... 6
Schematic Diagrams ........................................... 7
PCB Layouts ................................................. 10
IC Block Diagrams ............................................. 12
Exploded View ................................................ 14
Exploded View Parts List ........................................ 15
Electrical Parts List ............................................ 16
Packing Diagram .............................................. 19
SERVICE SAFETY PRECAUTIONS
Replacing the fuses
CAUTION: FOR CONTINUED PROTECTION AGAINST THE RISK OF FIRE, REPLACE ONLY
WITH SAME TYPE OF FUSE.
Note:
Reference No. Part Number Description
F001*AH 59560012F 1A/250V fast blow, glass (UL/GSA)
F001 *0 595GOO123F F1AL/250V (SEMKONDE)
F002'AH 595G0012F 1A/250V last blow, glass (UUCSA)
F002'C 595G00123F F1AIJ250V (SEMKONDE)
*AH : U.S.A., Canadian model only.
*C : European model only.
Safety-check out
(U.S.A model only)
Parts marked with the symbol A are critical with regard to the risk of tire and electric shock.
Replace only with parts recommended by the manufacturer.
Before returning the product to the customer, make leakage current or resistance measurements
to determine that exposed parts are acceptably insulated from the supply circuit.
L
