Extracted text from Nad 5420 Owners Manual 2 (Ocr-read)

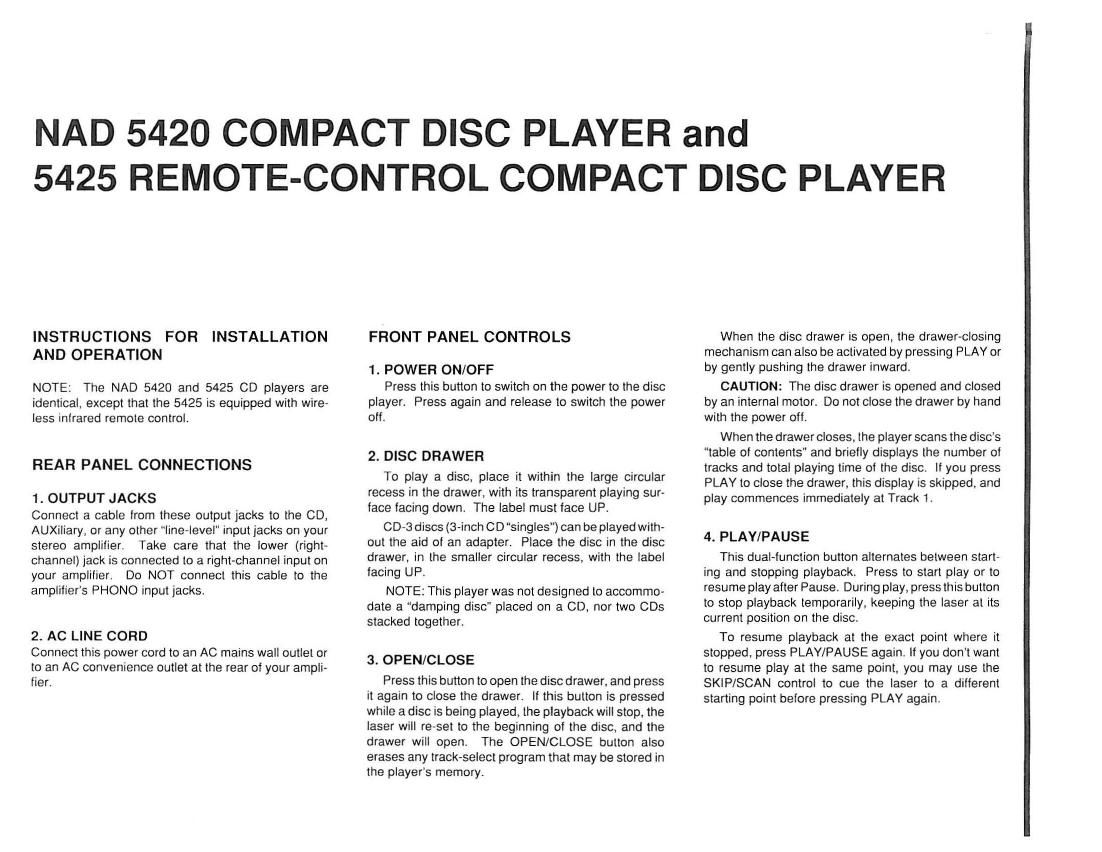

Page 1
5. STOP This button stops play, cancels any repeat-play cycle, and re·sets the pickup to the beginning of the disc, indicated as Track "0" in the display . This button also provides a program-editfunction . If you have stored a programmed track sequence in memory , pre ssing the STOP button will delete the final track from the sequence. (It deletes the track number that was entered last, which may not be the highe st numbered track.) Pressing the button repeatedty will progressively remove tracks from the sequence, eras~ ing backward s from the end toward the beginning, until the entire sequence has been deleted . 6. PROGRAM (MEMORY ENTER). The memory circuit allows programmed playback of up to sixteen tra cks in any order. Enter your desired track sequence in the memory as follows. t. If the RMS indicator is illuminated in the display , pre ss OPE N/CLOSE to cancet the stored program , or press STOP repeatedly to progressively delete the stored track numbers. 2. Tap the SK IP/SCAN Forward (» button to select the fir sl Ir ack in your sequence . 3 . Press PROGRAM to store that track number in memory . The RMS (Recorded Memory Sequence) indicator will glow above the track number. The right hand half of the d isplay will briefly show "P 1 ", ind icat i ng that the player has accepted the current Irack as the first program entry. Then the display will show the total p layi ng time of the program so far (in this case , just the duration of the first stored track ). 4. Tap the SK IP/SCAN button to select the sec ond track in your desired sequence. 5. Pres s PROGRAM to register that track as your second program entry. The disp lay will flash "P 2" briefly a nd then will show the tota l playing tim e of the first two prog ram entries . 6 . Con tinu e in this manner , accessing each desired track number and pressing PROGR AM to store it. Repeat this procedure until your program is complete. You may store up to sixteen track s. If you exceed this l imit, your last entry will not be accepted, and the time display will registe r horizontal dashes. NOTE: With respect to programming a track se qu ence into the player's memory for automati c play, please note that track numbers higher than eighteen will be accepted , but the time display will only show dashes instead of the program playing time, as it w i ll do also if the total program playing time exceeds 99 minute s. 7. If you enter the wrong track by mistake , or encounter one of the limits described above, you can clear t he most recent en try by press ing the STOP button. When you do this , the program entry number will decrea se by one, and the duration of the de leted entry will be subt rac ted from the dis play of the program playing time. Pressing the butto n repeatedly will pro· gressively erase the stored program, deleting from the last entry backwa rd toward the firs t. 8. If you plan to record your program on tape , use the tim e disp lay to keep track of the total playing time of the program , and stop wh en you approach the limit of your tape (typ ically 31 minutes for one side of a C60 ca ssette , or 46 minute s for one side of a C90) . 9. To play the progr ammed sequence of tra cks , in the order that you entered the track numbers , press PLAY . 10. If you want to play only a portion of a stored program , initiate play and then tap the SKIP/SCAN Forward (» button to jump over t he programmed tracks that you don't want to hear. When you re ach the final track in the sequence, further pres sing the SK IP/ SCAN Forward (» button will have no effect ; but you m ay S KIP /SC AN Backward «) through the stored track numbers to the beginning of the program. 11. During programmed play, you can stop the mu sic by pressing PLAY /PAUSE . When you press PLAY /PAUSE again , programmed play will res um e where it stopped . You may also stop programmed play by pre ssing STOP (just once) . The stored program reo mains in memory ; to play the programmed sequenc e again from the beginning , press PLAY/PAUSE. 12. If yo u wa nt to add another tr ack to the stored program , press STOP to stop the programmed play; then use SKIP to select the next track that you want to add, and press PROGRAM to enter il. NOTE: As long as the RMS indi cator rema ins illu minated , only the stor ed program can be played . To erase the program press STOP repeatedly , o r OPEN the disc drawer , or switch the power off. 7. REPEAT, This button engages an endl ess- re peat cycle. Pre ss the REPEAT button once to select the REPEAT 1 mode , in which only the current track is repealed over and over aga in . Press the REPEAT button a seco nd t i me to select the REPEAT m ode , in which the entir e d is c is played from beginning to end, over and over again . Press the REPEAT button a third time, or the STO P button , 10 cancel the repeat cycle and return to normal op eration . If you have stored a program in m em o ry, there is no REPEA T 1 mode . Press REPEAT once to engage e ndl ess repeat -play of the entire programmed track sequence , and press REPEAT again to cancel t he Repe at cycle .
Page 2
8. SKIP/SCAN Forward and Back. The two halves of this rocker button cause the laser pickup to move forward (» or backward «) through the music. Each half of the button has two modes of operation. If you tap the bullon briefly, it will engage the SKIP function, jumping forward or back to the beginning of a track. But if you press the button and hold il in, the player will SCAN continuously through the music, approximately 20 times faster than normal playing speed . During lhis rapid scan the music can be heard i n fragmentary form al reduced volume. In the STOP mode, or after you have loaded a fresh CD , tapping the SKIP/SCAN button will cause the pickup to advance to the beginning of each successive track and await a subsequent command (either PRO GRAM or PLAY). During PLAY, tapping SKIP/SCAN Forward (» will jump the laser to the beginning of the next track and resume play there. Thus, to sample each song on a disc , press PLAY and then tap SKIP/SCAN Forward (» a~er you've heard a few seconds of each track. Tapping SKIP /SCAN Back «) during play is a Repeat Song command, since it causes the pickup to jump back to the beginning of the current track and play it again . To access the previous track while in Play you must tap SKIP/SCAN Back «) twice in rapid succes sian , once to reach the beginning of the current track and again to jump to the previous track. During programmed memory play, tapping SKIP/ SCAN jumps the pickup to the next or previous track in the programmed sequence. When you reach the be ginning or end of the sequence, continued tapping has no effect. 9. DISPLAY The display provides information about disc play back status and about the laser pickup's locat ion on the disc . The disp layed information is obtained by reading inaudible "sub-codes" in the disc . TRACK/ INDEX NUMBER Each disc is seg mented into numbered tracks when the record is made; typica lly each numbered track will correspond to a d ifferent song, symphonic movement, etc. These track numbers are identified on the CD package and are encoded in the disc by its manufacturer. In some CDs, at the manufacturer's option, tracks may be sub-divided into sections identified by Index numbers. By pressing the PROGRAM button once during Normal Play or Memory Play, the currently played index number of a track can be displayed . ELAPSED TIMEITOTAL REMAINING TIME. This display shows in minutes and seconds the time elapsed in the mus ic since the beginning of the current track. When you load a different disc and use the OPEN /CLOSE button to close the disc drawer , the display briefly shows the total playing time of all the tracks on the disc. And when you are entering a PROGRAM into memory, the display shows the cumu lative playing time of the tracks in the program . By pressing the PROGRAM button twice during Normal or Programmed play, the total remain ing time can be dis played, a 'minus' symbol will appear in front of the minutes and seconds. STATUS. A right-pointing arrowhead (> ).Iocated to the right of the time display, glows during PLAY. Two vertical bars (I J) indicate that the player is in PAUSE. When the player is in STOP mode, the Track number is O. In the upper-left corner of the display, the word DISC glows during normal operation; it vanishes when you load a disc that can't be read (because it is dirty or was loaded upside-down) . "RMS" glows above the track number when there is a program stored in memory . REPEAT 1 glows in the upper-right corner during Repeat-Play of a single track. REPEAT glows during Repeat -Play of the entire program or disc. NOTE; Where the player is unable to read the Table of Contents of a disc, the word DISC (which normally glOWS at the upper -left corner of the display) will disap pear. 10. REMOTE RECEIVER (5425 only). This window contains an infrared sensor that re ceives commands from the remote control. The re must be a clear line-o f-sigh t path from the remote control to this window ; if that path is obstructed , the remote contra I may not work. REMOTE CONTROL (5425 only) A wireless remote control is provided with the 5425, enabling you to operate playback tunctions from the comfort of your chair or from virtually anywhere in the room. For reliable operation there should be a clear line-of· sight path from the remote control to the front olthe CD player. If Ihe player does not respond to remole commands, it may be that this line -of -sight path is obstructed by clothing , paper, or furnish ings. The PLAY/PAUSE and SKI P/SCAN functions , which are combined on dual -function buttons on the front panel, have been separated into indiv idual buttons on the remote control, for greater convenience. Thus you can tap one of the remo te SCAN buttons briefly. to move the plckup forward or back in the music by just a few seconds , without triggering the SKIP function. After you press PAUSE to interrupt play , you cannot resume play by pressing the remote PLAY button . You must press PAUSE again to release the pause function and resume play.
