Nad 517 CDP Data Sheet
This is the 2 pages manual for Nad 517 CDP Data Sheet.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Nad 517 CDP Data Sheet (Ocr-read)

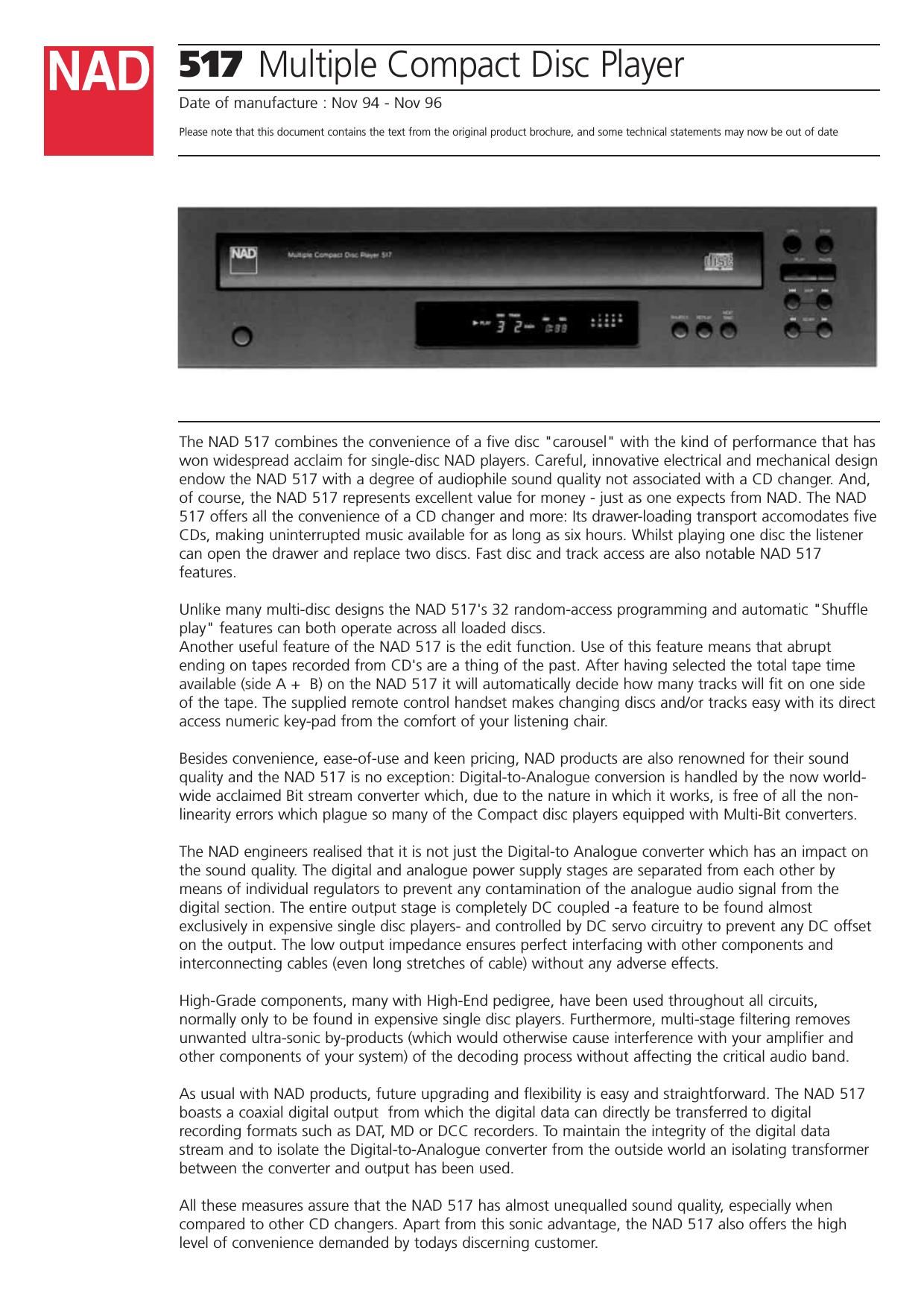

Page 1
CD SECTION Disc capacity 5 x 120mm or 80mm Programming capacity 32 tracks Digital-to-Analogue conversion Bitstream Digital filter 8 x oversampled linear phase Analogue filter 5 pole active Frequency response 5Hz - 20kHz ±0.5dB De-emphasis error ±0.3dB THD (at 0dB, 1kHz) 0.003% Dynamic range 98dB Linearity ±0.5dB; 0 to 90dB Signal/Noise ratio (A-weighted) >110dB Channel separation 1kHz 95dB Wow and flutter Quartz accuracy Output impedance 110½ Output level at 0dB 2.0V rms Digital error correction CIRC, double error correction in C1 & C2 Digital output Sony/Philips serial data format Remote Yes NAD Link Yes PHYSICAL SPECIFICATIONS Dimensions (W x H x D) 435 x 108 x 395mm Net weight 6.8kg Shipping weight 7.7kg Dimensions are of unitÕs cabinet without attached feet; add up to 18mm for total height. Dimension depth excludes terminals, sockets, controls and buttons. © NAD Electronics. All rights reserved. E & OE
