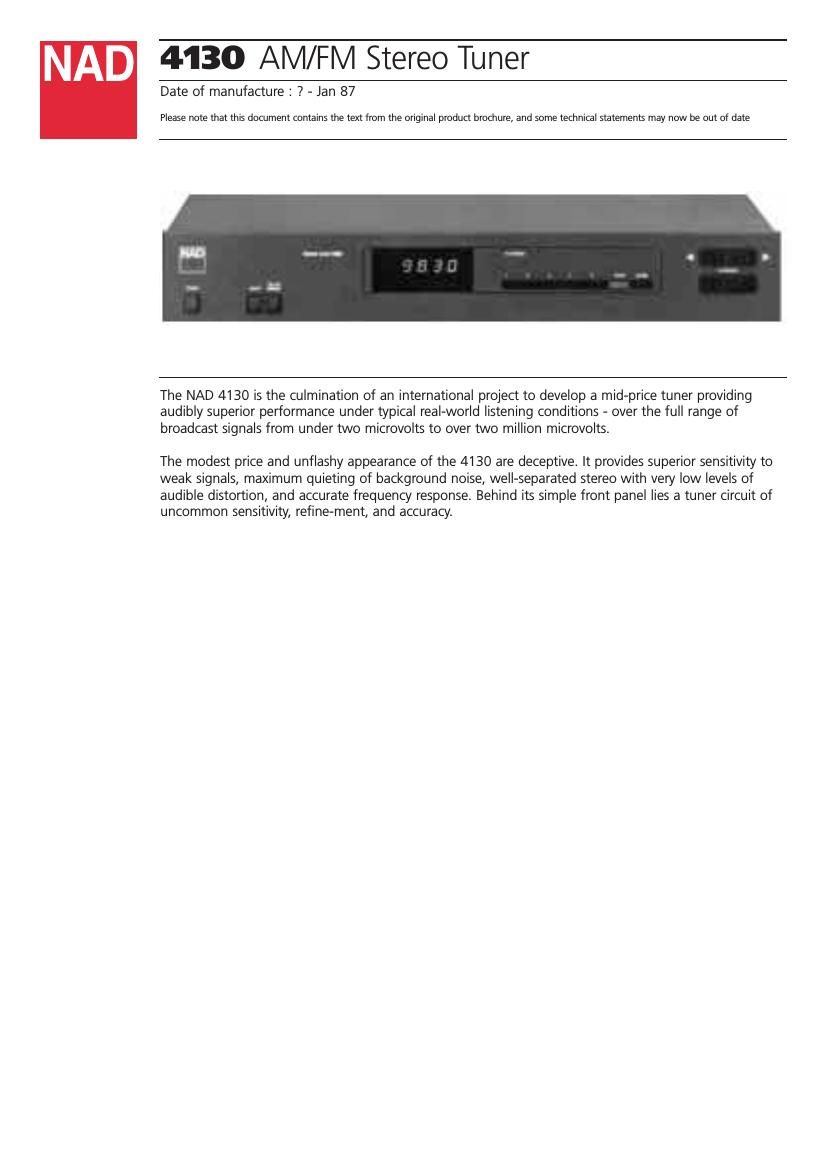

Nad 4130 Brochure
This is the 2 pages manual for Nad 4130 Brochure.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Nad 4130 Brochure (Ocr-read)
Page 1
FM TUNER SECTION Input sensitivity Mono -30dB THD+N 10.3dBf (0.9µV/75½) Mono 50dB S/N 13dBf (2.5µV/300½) Stereo 50dB S/N 36dBf (35µV/75½) Stereo 60dB S/N 46dBf (110µV/75½) Capture ratio (45 - 65dBf) <1.5dB AM rejection (45 - 65dBf) >60dB Selectivity 65dB Image rejection 70dB I F rejection 75dB Harmonic distortion Mono 0.2% Stereo 0.3% Signal/Noise ratio Mono >80dB Stereo >75dB Frequency response ±0.5dB 30Hz - 15kHz Channel separation at 1kHz 50dB AM TUNER SECTION Usable sensitivity 300µV Selectivity 35dB Image rejection 50dB I F rejection 35dB Signal/Noise ratio 45dB Harmonic distortion 0.5% Remote No NAD Link No PHYSICAL SPECIFICATIONS Dimensions (W x H x D) 420 x 76 x 279mm Net weight 3.2kg Shipping weight 4.1kg Power consumption (120 ~ 240V, 50/60Hz) 110VA Dimensions are of unitÕs cabinet without attached feet; add up to 18mm for total height. Dimension depth excludes terminals, sockets, controls and buttons. © NAD Electronics. All rights reserved. E & OE
