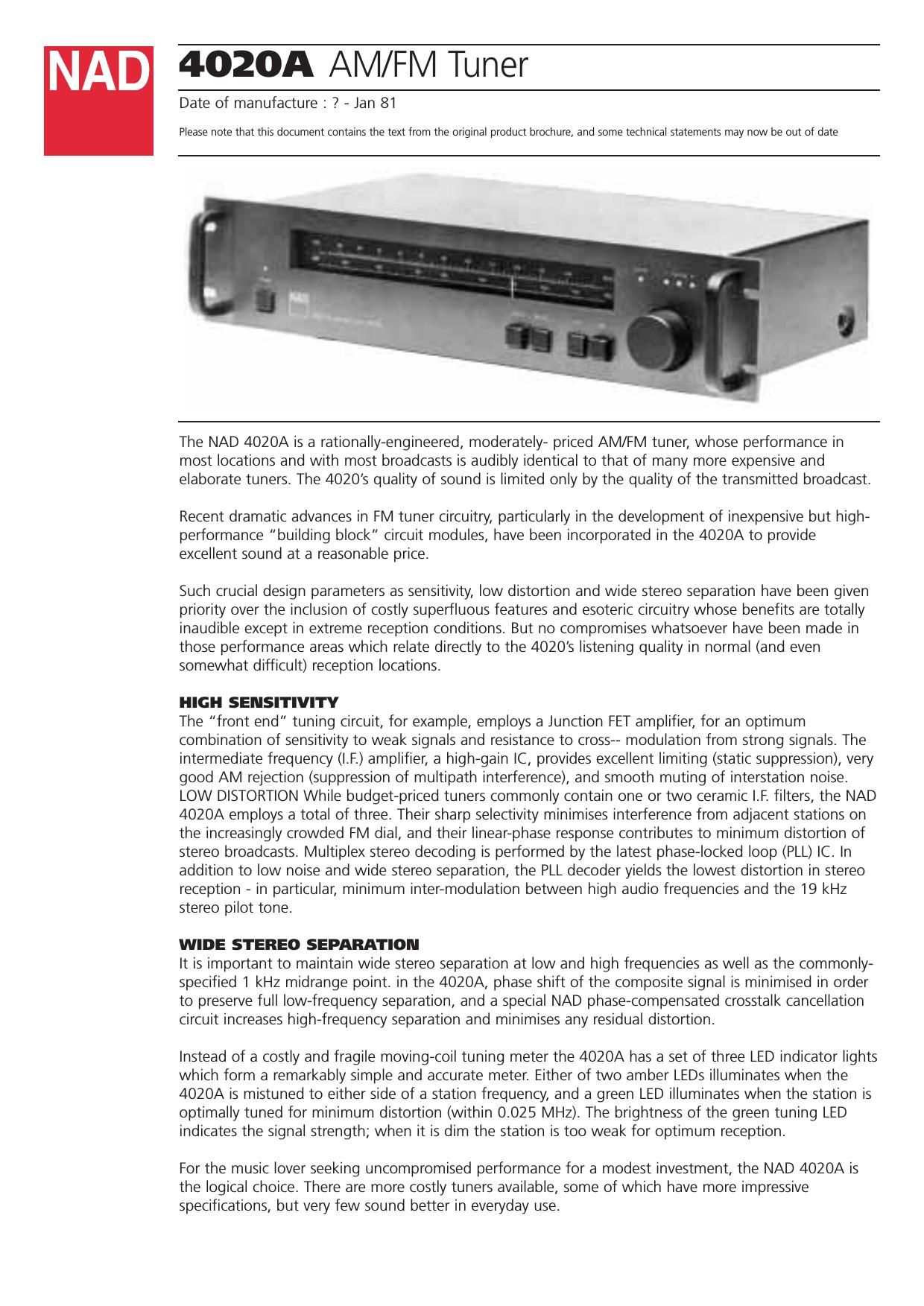

Nad 4020 A Brochure
This is the 2 pages manual for Nad 4020 A Brochure.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Nad 4020 A Brochure (Ocr-read)
Page 1
FM TUNER SECTION Input sensitivity Mono -30dB THD+N 10.9dBf (1.9µV/75½) Mono 50dB S/N 16dBf (3.5µV/75½) Stereo 50dB S/N 37dBf (40µV/75½) Capture ratio (45 - 65dBf) 1.5dB AM rejection (45 - 65dBf) 60dB Selectivity 65dB Image rejection 50dB I F rejection 75dB Harmonic distortion Mono 0.2% Stereo 0.3% Signal/Noise ratio Mono 75dB Stereo 70dB Frequency response ±0.5dB 30Hz - 15kHz Channel separation at 1kHz 42dB AM TUNER SECTION Usable sensitivity 250µV Selectivity 30dB Image rejection 50dB I F rejection 40dB Remote No NAD Link No PHYSICAL SPECIFICATIONS Dimensions (W x H x D) 420 x 96 x 240mm Net weight 4.2kg Shipping weight 5.6kg Dimensions are of unitÕs cabinet without attached feet; add up to 18mm for total height. Dimension depth excludes terminals, sockets, controls and buttons. © NAD Electronics. All rights reserved. E & OE
