Nad 317 Brochure
This is the 2 pages manual for Nad 317 Brochure.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Nad 317 Brochure (Ocr-read)

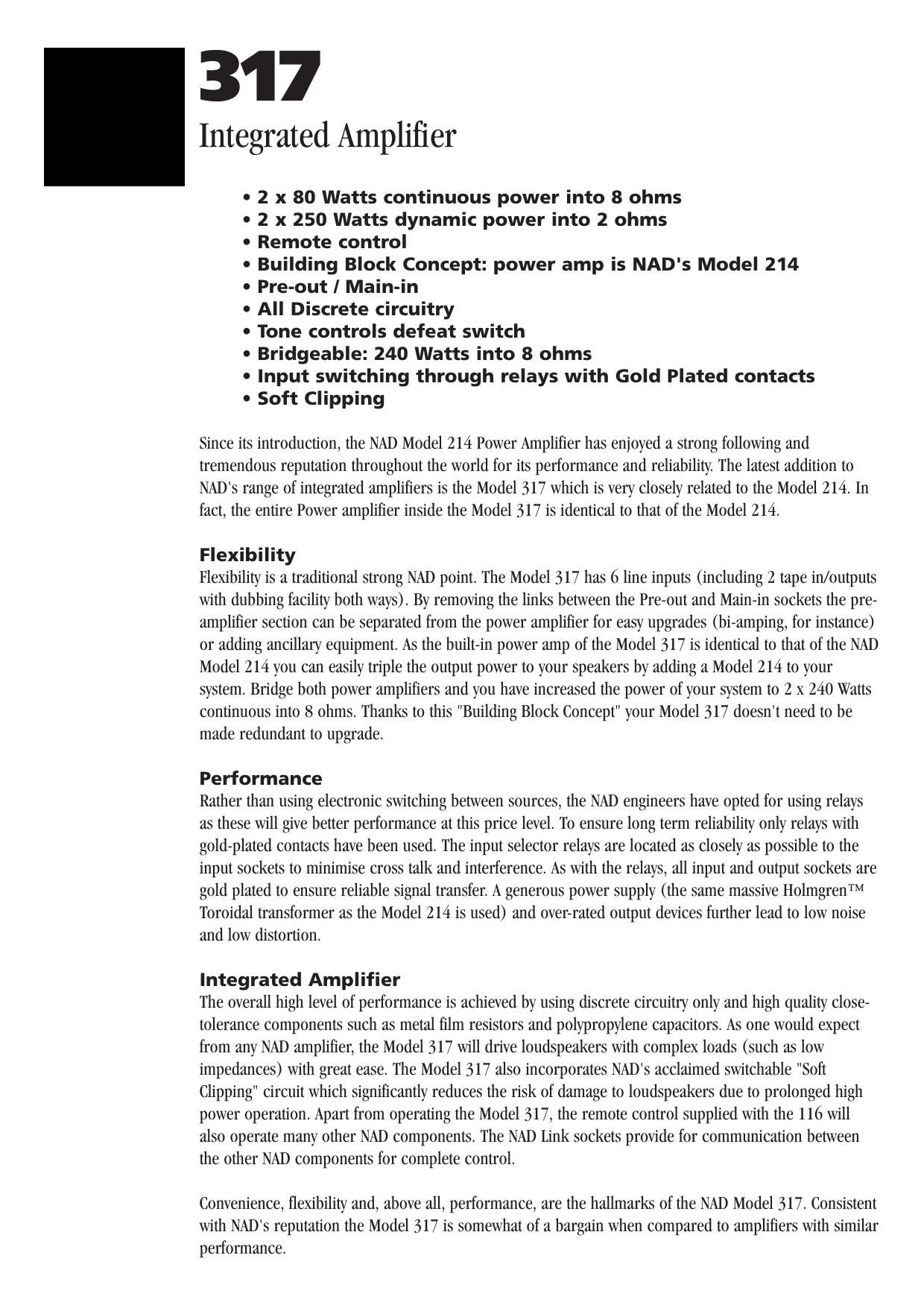

Page 1
Specifications - NAD 317 Continuous average power output into 8 80W (19dBW) (Min power per channel, 20Hz - 20kHz both channelsdriven with no more than rated distortion) Rated distortion (20Hz - 20 kHz) 0.03% Clipping power (max continuous power per channel) 105W (20.2dBW) IHF dynamic headroom at 8 +1.5dB IHF dynamic power (max short term power per channel) 8 110W (20.4dBW) 4 180W (22.6dBW) 2 250W (23.9dBW) Damping factor (ref. 8 50Hz) >200 Frequency response 20Hz - 20kHz ±0.3dB 2Hz - 100kHz ±3 dB THD + SMPTE I.M. + IHF I.M <0.03% Input impedance (R and C) 20k /500pF Input sensitivity (ref. rated power) 165mV Signal to noise ratio (A weighted) 90dB ref. 1W 104dB ref. rated power Treble control ±7dB at 10kHz Bass control ±10dB at 50Hz Physical specifications Dimensions (W x H x D) 435 x 128 x 383mm Net weight 12.1kg Shipping weight 13.6g NOTE: NAD reserves the right to change specifications or design at any time without notice. All specifications are those in effect at time of printing.
