Extracted text from Nad 2700 Brochure (Ocr-read)

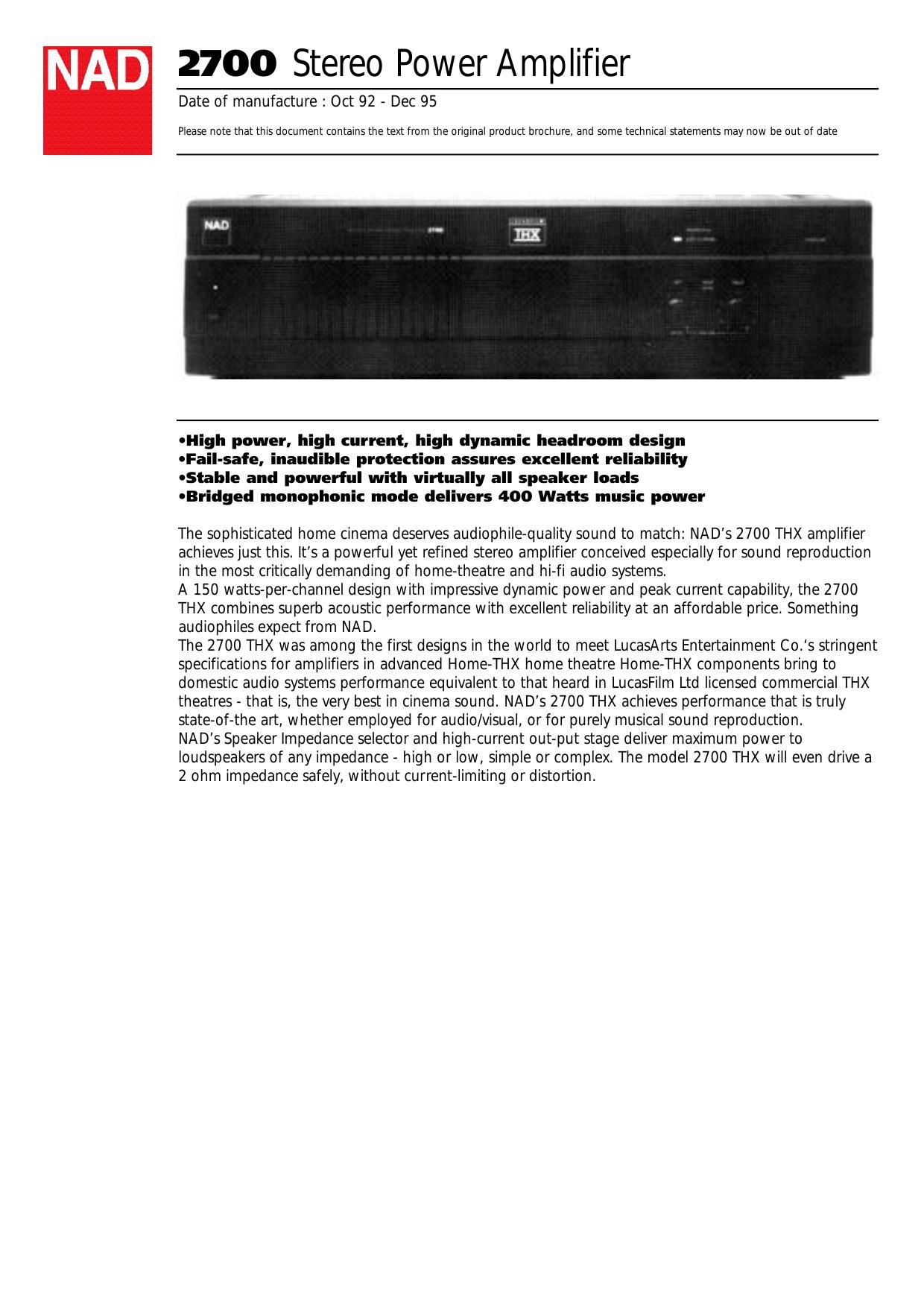

Page 1
POWER AMP SECTION Continuous output power into 8 W * 150W (21.7dBW) Rated distortion (THD 20Hz - 20kHz) 0.03% Clipping power (maximum continuous power per channel) 200W IHF Dynamic headroom at 8 W +4.3dB IHF dynamic power (maximum short term power per channel) 8W 400W (26 dBW) 4 W 600W (28 dBW) 2 W 800W (29 dBW) Damping factor (ref. 8 W, 50Hz) >120 Input impedance 20kW / 820pF Input sensitivity (for rated power into 8 W) 1.2V Frequency response 1Hz - 80kHz / (+0, -3dB) THX Signal/noise ratio ref. 1W 100 dB r ef. rated power 122 dB THD (20Hz - 20kHz) <0.03% Bridged Mode Continuous output power into 8 W * 400W (26 dBW) IHF Dynamic headroom at 8 W +5dB IHF dynamic power (maximum short term power per channel) 8W 1.2 kW (31 dBW) 4 W 1.6 kW (32 dBW) PHYSICAL SPECIFICATIONS Dimensions (W x H x D) 435 x 127 x 395mm Net weight 13 kg Shipping weight 14.3 kg Power consumption (120 ~ 240V, 50/60Hz) 970VA * Minimum power per chnnel, 20Hz - 20kHz, both channels driven with no m\ ore than rated distortion. Dimensions are of units cabinet without attached feet; add up to 18m\ m for total height. Dimension depth excludes terminals, sockets, controls and buttons. © NAD Electronics. All rights reserved. E & OE
