Extracted text from Nad 2155 Brochure (Ocr-read)

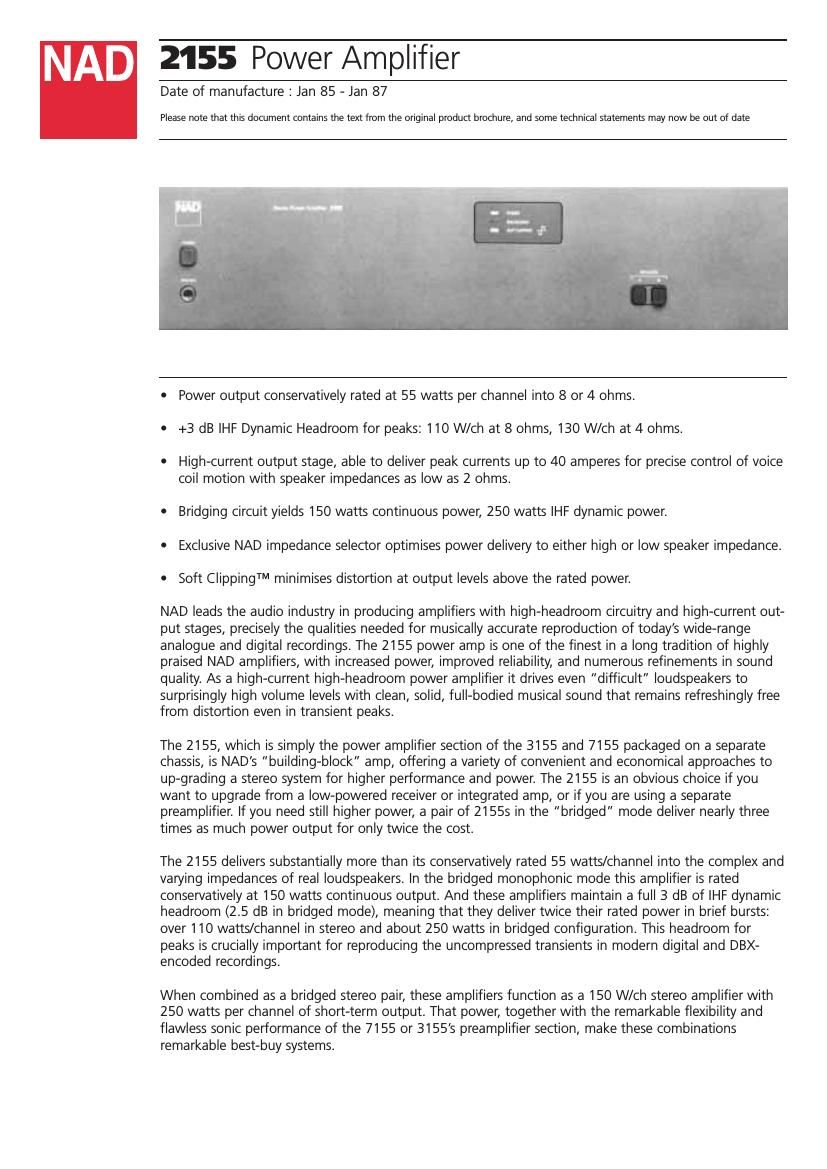

Page 1
High Current and Headroom: Designing for Real-Use Conditions Since amplifiers are usually rated in terms of a few standard specifications (e.g. 8-ohm power and THD), many designers concentrate on optimising test-bench performance. But in the real world, amplifiers are connected to loudspeakers with complex impedances, not to 8-ohm test resistors, and they are used to play music, not sine-wave test tones. In NAD amplifiers every circuit is designed to deliver full performance under real-use conditions. While many specific engineering goals follow from this principle, two have been the cornerstones of every amplifier in NAD history (including the legendary Model 3020): graceful handling of dynamic transients that exceed the amplifierÕs rated power, and the ability to deliver large bursts of output current to the loudspeakers. Electrical power is the product of voltage and cur- rent, but it is the current flowing through the voice coil that causes a loudspeaker cone to vibrate and reproduce sound. As NAD engineers have always known and other manufacturers have lately begun to realise, to obtain precise electromagnetic control of the speakerÕs motion the amplifier must be able to supply high peak currents upon demand, unconstricted by transistor ÒprotectionÓ circuits. The NAD 2155 amplifier circuit produces peak currents of up to 40 amperes per channel. Loudspeaker impedance matching Standard lab tests of amplifiers use 8-ohm resistors in place of loudspeakers. But most loudspeakers have a lower and more complex impedance that increases the required amplifier output current. (And if you connect two pairs of loudspeakers, the effective impedance of the pair is halved.) For this reason the 2155 amplifier is designed to deliver its maximum power into low impedances of 4 or even 2 ohms. But the exclusive NAD impedance selector allows you to re-optimise the amplifier circuit to produce greater output voltage, for the most effective delivery of power to loudspeakers whose true impedance is 8 ohms or higher. Soft Clipping NADÕs trademarked Soft Clipping circuit gently limits the waveform when the amplifier is driven beyond its maximum power rating. By preventing the out-put transistors from being driven fully into saturation, the Soft Clipping reduces the harshness that is normally heard when an amplifier is over driven. Because of this and the amplifierÕs high dynamic headroom, the sound remains clean and musical even at very high sound levels, rather than becoming harsh as in other amplifiers. Exceptional Performance and Value The NAD 2155 is a superb general-purpose power amplifier with an unusually attractive ratio of performance and power to price, and it is also the core of the unique NAD building-block concept that allows the stereo system to evolve with your needs or your budget, now and in the future.
Page 2
POWER AMP SECTION Continuous output power into 8½* 55W (17.4dBW) Rated distortion (THD 20Hz - 20kHz) 0.03% Clipping power (maximum continuous power per channel) 65W IHF Dynamic headroom at 8½+3dB IHF dynamic power (maximum short term power per channel) 8½100W 4½100W 2½130W Damping factor (ref. 8½, 50Hz) >50 Input impedance 22k½ Input sensitivity (for rated power into 8½) 1.3V THD (20Hz - 20kHz) <0.03% Bridged Mode Continuous output power into 8½* 125W (21dBW) IHF Dynamic headroom at 8½+2.5dB IHF dynamic power (maximum short term power per channel) 8½250W PHYSICAL SPECIFICATIONS Dimensions (W x H x D) 420 x 108 x 380mm Net weight 7.8kg Shipping weight 9.3kg Power consumption (120 ~ 240V, 50/60Hz) 340W * Minimum power per chnnel, 20Hz - 20kHz, both channels driven with no more than rated distiortion. Dimensions are of unitÕs cabinet without attached feet; add up to 18mm for total height. Dimension depth excludes terminals, sockets, controls and buttons. © NAD Electronics. All rights reserved. E & OE
