Nad 118 Owners Manual

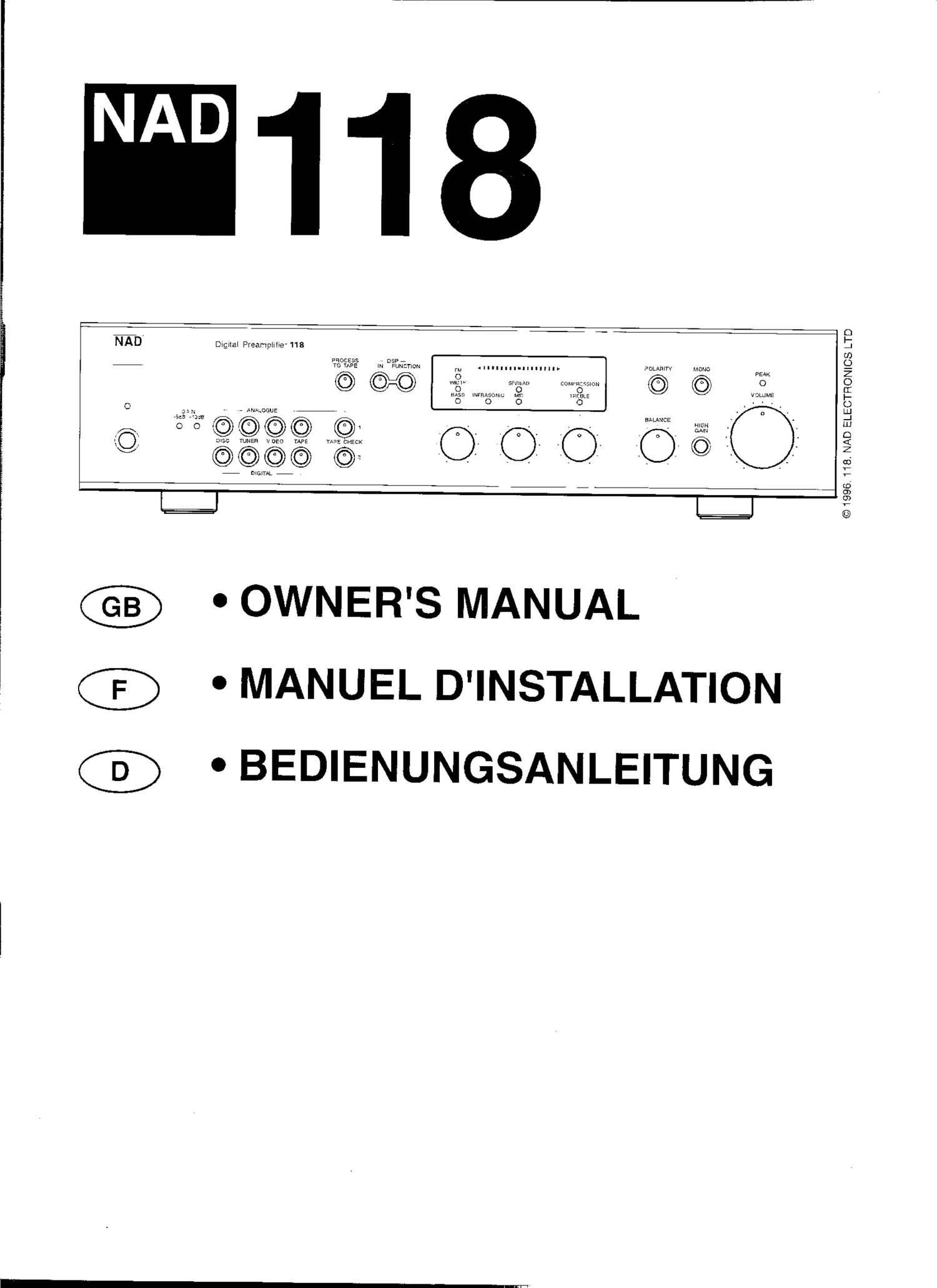

Page 1

PROCESS »- DSP-
T0 TAPE IN FUNCTION POLm MONO
. PEAK

0 O
mu 1 v SP 1111111 COMFHISSION
O O O .
sass wrmsonac mu: -le an. E V QLJ ME
O O O O ' ' ' .

agailade -~ _ ANAAOGUE - h V I BALANCE * .
- DIGITAL-4

° OWNER'S MANUAL
0 MANUEL D'INSTALLATION
0 BEDIENUNGSANLEITUNG

@1996. 1'18. NAD ELECTRONICS LTD

Page 2

PRECAUTIONS AND SAFETY INSTRUCTIONS

CAUTION

RISK OF ELECTRIC-

SHOCK DO NOT OPEN NE PAS OUVRIR

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK. DO NOT REMOVE COVER

[OR BACK).
ATTENTION: AFIN DEVITER UN CHOC ELECTRIOUE. ET LES CONSEQUENCES GRAVES OUI
POUHRNENT EN RESUI. 1 EH. IEN I [-7 PAS D'OUVRIR l_ APPAREIL ET DE TOUCHER AUX
COMPOSAN-S INTERNES SANS LA PRESENCE D UNE SERVICE PERSONNEL

Warning: To reduce the risk of fire or electric shock, do not expose
this unit to rain or moisture.

The graphic symbol of a lightning flash with an arrow point within
a triangle signifies that there is dangerous voltage within the
unit and it poses a hazard to anyone removing the cover to

gain access to the interior of the unit. Only qualified
service personnel should make any such attempt.

The graphic symbol of an exclamation point within an equilateral
triangle warns a user of the device that it is necessary to refer
to the instruction manual and its warnings for proper opera-
tion of the unit.

Do not place this unit on an unstable cart, stand or tri-
pod, bracket or table. The unit may fall, causing seri-
ous injury to a child or adult and serious damage to the
unit. Use only with a cart, stand, tripod, bracket or
table recommended by the manufacturer or sold with
the unit. Any mounting of the device on a wall or cell-
ing should follow the maufacturers instructions and
should use a mounting accessory recommended

by the manufacturer.

An appliance and cart combination should be moved with care. Quick
stops. excessive force and uneven surfaces may cause the appliance
and cart combination to overturn.

Read and follow all the safety and operating instructions before connect-
ing or using this unit. Retain this notice and the owners manual for future
reference.

All warnings on the unit and in its operating instructions should be
adhered to.

Do not use this unit near water; for example, near a bath tub, washbowl.
kitchen sink, laundry tub, in a wet basement or near a swimming pool.

The unit sh0uld be installed so that its location or position does not inter-
fere with its proper ventilation. For example. it should not be situated on
a bed. sofa. rug or similar surface that may block the ventilation open-
ings; or placed in a built-in installation, such as a bookcase or cabinet,
that may impede the flow of air through its ventilation openings.

The unit should be situated from heat sources such as radiators, heat
registers, stoves or other devices {including amplifiers) that produce heat.

The unit should be connected to a power supply outlet only of the voltage
and frequency marked on its rear panel.

The power supply cord should be routed so that it is not likely to be
walked on or pinched, especially near the plug, convenience receptacles,
or where the cord exits from the unit.

Unplug the unit from the wail outlet before cleaning. Never use benzine,
thinner or other solvents for cleaning. Use only a soft damp cloth.

The power supply cord of the unit should be unplugged from the wall out-
let when it is to be unused for a long period of time.

Care should be taken so that objects do not fall, and liquids are not
spilled into the enclosure through any openings.

This unit should be serviced by qualified service personnel when:

A. The power cord or the plug has been damaged; or

B. Objects have fallen, or liquid has been spilled into the unit; or

C. The unit has been exposed to rain or liquids of any kind; or

D. The unit does not appear to operate normally or exhibits a marked
change in performance; or

E. The device has been dropped or the enclosure damaged.

DO NOT ATTEMPT SERVICING OF THIS UNIT YOUR-
SELF. REFER SERVICING TO QUALIFIED SERVICE
PERSONNEL.

Upon completion of any servicing or repairs, request the service shops
assurance that only Factory Authorized Replacement Paris with the
same characteristics as the original parts have been used. and that the
routine safety checks have been performed to guarantee that the equip-
ment is in safe operating condition.

REPLACEMENT WITH UNAUTHORIZED PARTS MAY RESULT IN
FIRE, ELECTRIC SHOCK OR OTHER HAZARDS.

ATTENTION: fl

ATTENTION

POUR EVOTER LES CHOC ELECTRIQUES, INTRODUIRE LA
LAME LA PLUS LARGE DE LA FICHE DANS LA BORNE
CORRESPONDANTE DE LA PRISE ET POUSSER JUSQU'AU
FOND.

CAUTION

TO PREVENT ELECTRIC SHOCK MATCH WIDE BLADE OF
PLUG TO WIDE SLOT FULL INSERT.

If an indoor antenna is used (either built into the set or installed separate-
ly}. never allow any part of the antenna to touch the metal parts of other
electrical appliances such as a lamp, TV set etc.

CAUTION
POWER LINES

Any outdoor antenna must be located away from all power lines.

OUTDOOR ANTENNA GROUNDING

If an outside antenna is connected to your tuner or tuner-preamplifier, be
sure the antenna system is grounded so as to provide some protection
against voltage surges and built-up static charges. Section 810 of the
National Electrical Code. ANSIJNFPA No. 70-1984, provides information
with respect to proper grounding of the mast and supporting structure,
grounding of the lead-in wire to an antenna discharge unit, size of
grounding conductors, location of antenna discharge unit, connection to
grounding electrodes and requirements for the grounding electrode.

a. Use No. 10 AWG (5.3mm?) copper, No.8 AWG (8.4mm?) aluminium,
No. 17 AWG {1.0mm?) copper-clad steel or bronze wire, 0r larger, as a
ground wire.

b. Secure antenna lead-in and ground wires to house with stand-off insu-
lators spaced from 4-6 feet {1.22 - 1.83 m) apart.

c. Mount antenna discharge unit as close as possible to where lead-in
enters house.

d. Use jumper wire not Smaller than No.6 AWG (13.3mm?) copper, or the
equivalent, when a separate antenna-grounding electrode is used. see
NEC Section 810-21 (j).

EXAMPLE OF ANTENNA GROUNDING AS PER NATIONAL ELECTRI-
CAL CODE INSTRUCTIONS CONTAINED IN ARTICLE 810 - RADIO
AND TELEVISION EQUIPMENT.

POWER JNES

SERVICE ENTRANCE
CONDUCTORS

rs.

STANDOFF
INSULATORS. b

MAST

k

SERVICE ANTENNA
ENTRANCE LEAD-IN WIRE
EQUIPMENT

ANTENNA
DISCHARGE
UNIT. c

to EXTEQNA. A'vl ENNA
TERMINALS Ol RADIO RECEIVER

POWER SERVECE GROUNDlNG
ELECTRODE SYSTEM
if: g :rrenor rrelal wate' pipe}

GROUND WIRE. at)

Gaouno CLAMPS
BONDING JUMPER. d I \

OPTIONAL ANTENNA GROUNDING
ELECTRODE DRIVEN 8 FEET ".244 Mi INTO
THE EARTH IF REQUIRED BY IOCAL
CODES SEE NEC SECTION 810-2t IfII

NOTE TO CATV SYSTEM INSTALLER: This reminder is pro-
vided to call the CATV system installers attention to Article 820-
22 of the National Electrical Code that provides guidelines for
proper grounding and, in particular, specifies that the ground
cable ground shall be connected to the grounding system of the
building, as close to the point of cable entry as practical.

Page 12

NAD
12

4a. Turn control knob (17) clockwise or press the
BASS + button on the remote control to widen the
stereo image to the desired level.

4b. Turn control knob (1?) counter clockwise or press
the BASS - button on the remote control to make the
stereo image narrower to the desired level. By adjust-
ing the setting to minimum, width has effectively been
reduced to full mono.

NOTE: The Width DSP function uses the stereo
information embedded in the music to calculate the
wider stereo image. If the music source is fully mono
then the Width DSP function doesnt have any effect.

- Width & Spread
The Width & DSP Spread function is identical to the

'Width DSP feature as described but in this DSP func-

tion the possibility of Spread has been added.

The Spread DSP function can make pure mono
recordings sound more spacious by stereo simulation.
In the past there have been attempts at stereo simula-
tion but very often with questionable results. This
Stereo Simulation program is subtle in the way it works
but it does help to eradicate the keyhole effect (fixed,
phantom image between the loudspeakers) when lis-
tening to a mono source over two loudspeakers.

When using stereo program material the additional
spacious effect of the Spread DSP function can be
used simultaneously with the Width DSP function (mak-
ing a stereo image wider or narrower).

1. Select the Width & Spread DSP function (16; but»
ton Width & Spread on remote control, section 3 on
remote control drawing).

2. Switch on DSP (15; button lN/OUT on front panel,
10 on remote control drawing).

3. Start from the neutral setting for Width (original
stereo sound, no widening or narrowing) at the 12
oclock position for the front panel control knob (17).
When using the remote control, press the BASS + or -
buttons (section 11 on remote control drawing) to
adjust to the neutral position, indicated by the LED bar
(only the square centre LED lights up) in the display
panel (26):

lxl . E] 2
W'lD'l'l- SPREAD COMPRESSION
o 4

BASS llK'FQASCNIC "JllD TREBLE

4. Start from the neutral setting for Spread (original
sources stereo or mono sound, no spread added) at
the 7 oclock position for the front panel control knob
(17). When using the remote control, press the MID ~
button (section 11 on remote control drawing) to adjust
to the neutral position, indicated by the LED bar in the
dISplay panel (26):

Egg,» ' I ...........
FM 4 i 5 E]
WIDTH 333330 COIJIPFtESSION
":01" 'i-iQf-r
sriss INSRASONIC uio TFiEElLE

4a. Turn control knob for Width (17) clockwise or
press the BASS + button on the remote control to
widen the stereo image to the desired level.

4b. Turn control knob for Width (17) counter clock-
wise or press the BASS - button on the remote control
to make the stereo image narrower to the desired level.
By adjusting it to the maximum, width has effectively
been reduced to full mono.

5. Turn control knob for Spread (18) clockwise or
press the MID + button on the remote control to add the
desired level of Simulated Stereo.

NOTE: The Width DSP function uses the stereo
information embedded in the music to calculate the
wider stereo image. If the music source is fully mono
then the Width DSP function doesnt have any effect.
The Spread DSP function will work with both mono and
stereo program material, however.

0 Compression

Although this particular DSP function is referred to as
compression only, it can actually expand as well. in
many cases high dynamics in music (large differences
in volume level between the soft and loud passages)
can cause difficulty in situations whereby one cant play
very loud recordings or broadcasts, or doesnt wish to
play loud, e.g. for background music. In such instances
the loud passages become too loud it the soft pas-
sages are right, or the soft passages become too soft if
the volume level for the loud passages is right.

The Compression DSP function will raise the relative
volume level of the soft passages without changing the
volume for the very loudest passages. This way the dif~
ferences in volume between soft and loud passages
have become much smaller, making the music much
more enjoyable at low volume levels.

Compression is also particularly useful for making
recordings which will be played back in environments
with lots of ambient noise (e.g. tapes for personal
stereo or car stereo); as soft passages are difficult to
hear because of the surrounding noise. To use the
Compression DSP function:

1. Select the Compression DSP function (16; button
Comp on remote control, section 3 on remote control
drawing).

2. Switch on DSP (15; button IN/OUT on front panel,
10 on remote control drawing).

3. Start from the neutral setting for compression
(original sound, no compression or expansion) at the
12 oclock position for the front panel control knob (19).
When using the remote control, press the Treble + or -
buttons (section 11 on remote control drawing) to
adjust to the neutral position, indicated by the LED bar
(only the square centre LED lights up) in the display
panel (26):

FM ' _ D

W'IDTH SPQEAD COMERESSIOTI
. :E:O_'::'

BASS ENFFIASONIC if D TREBLE

4. Turn control knob for compression (t9) clockwise
or press the TFiEBLE + button on the remote control to
set the desired level of compression. Set the compres-
