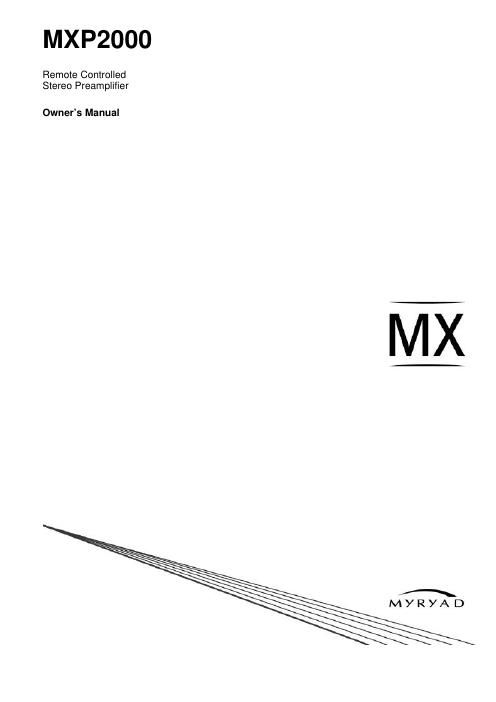

Myryad mxp 2000 owners manual

Page 1

2 CONTENTS · Introduction 2 · Installation and Safety 2 · Accessories 2 · Setting up your system 3 · Rear panel connections 3 · Using your MXP2000 4 · Front panel controls 4 · System operation with Smart My-Link® 5 · Remote Control Handset Operation 5 · Using the menu system to customise your preamplifier 6 · Installing and replacing batteries in the remote control 7 · Trouble-shooting guide 7 · Specifications 7 INTRODUCTION The Myryad MXP2000 Stereo Preamplifier has been designed to deliver a combination of high quality sound reproduction and elegant styling. The MXP2000 can accept up to eight line- level input sources, including two tape recorders. Two pairs of line outputs are provided to feed one or two stereo power amplifiers. All functions can be operated using the infra-red remote control handset supplied. This remote can also control Myryad CD players, Tuners and DVD players. The MXP2000 offers a range of expansion possibilities: - The second pair of line outputs may be used to feed a second Myryad Power Amplifier to allow bi-amplified drive of suitable loudspeakers. - The My-Link input/output can be coupled to other Myryad products which can then be remote-controlled via the MXP2000s infra-red receiver or vice-versa. - When linked via the Smart My-Link® to other compatible Myryad M-Series, MX-Series, Z-Series or Cameo products a number of other features become available which make the system as a whole easier and quicker to operate. INSTALLATION AND SAFETY This preamplifier generates a small amount of heat and thus requires some ventilation. Do not place it on a rug or other soft surface into which it could sink, obstructing the air inlets in its underside. The preamplifier should not be installed in a built-in situation such as a bookcase or rack unless proper ventilation is provided CAUTION: TO PREVENT A FIRE OR SHOCK HAZARD, DO NOT PERMIT THIS PRODUCT TO BECOME WET. IF LIQUID IS ACCIDENTALLY SPILLED ON IT, IMMEDIATELY SHUT OFF ITS POWER AT THE WALL SOCKET AND UNPLUG THE AC POWER CORD. ALLOW SUFFICIENT TIME FOR COMPLETE EVAPORATION TO OCCUR BEFORE OPERATING THE UNIT AGAIN. IF THE LIQUID IS ANYTHING BUT WATER AND/OR ALCOHOL, A QUALIFIED SERVICE TECHNICIAN SHOULD EXAMINE THE UNIT BEFORE IT IS USED AGAIN Do not remove the cover, or attempt to modify or repair the amplifier yourself. Refer all servicing to a qualified technician. ACCESSORIES Your MXP2000 is supplied complete with the following accessories: - Separate mains power cord to suit country of sale. - Myryad Slim System Remote. - Two AAA batteries for handset. - Slim System Remote Owners Manual.
