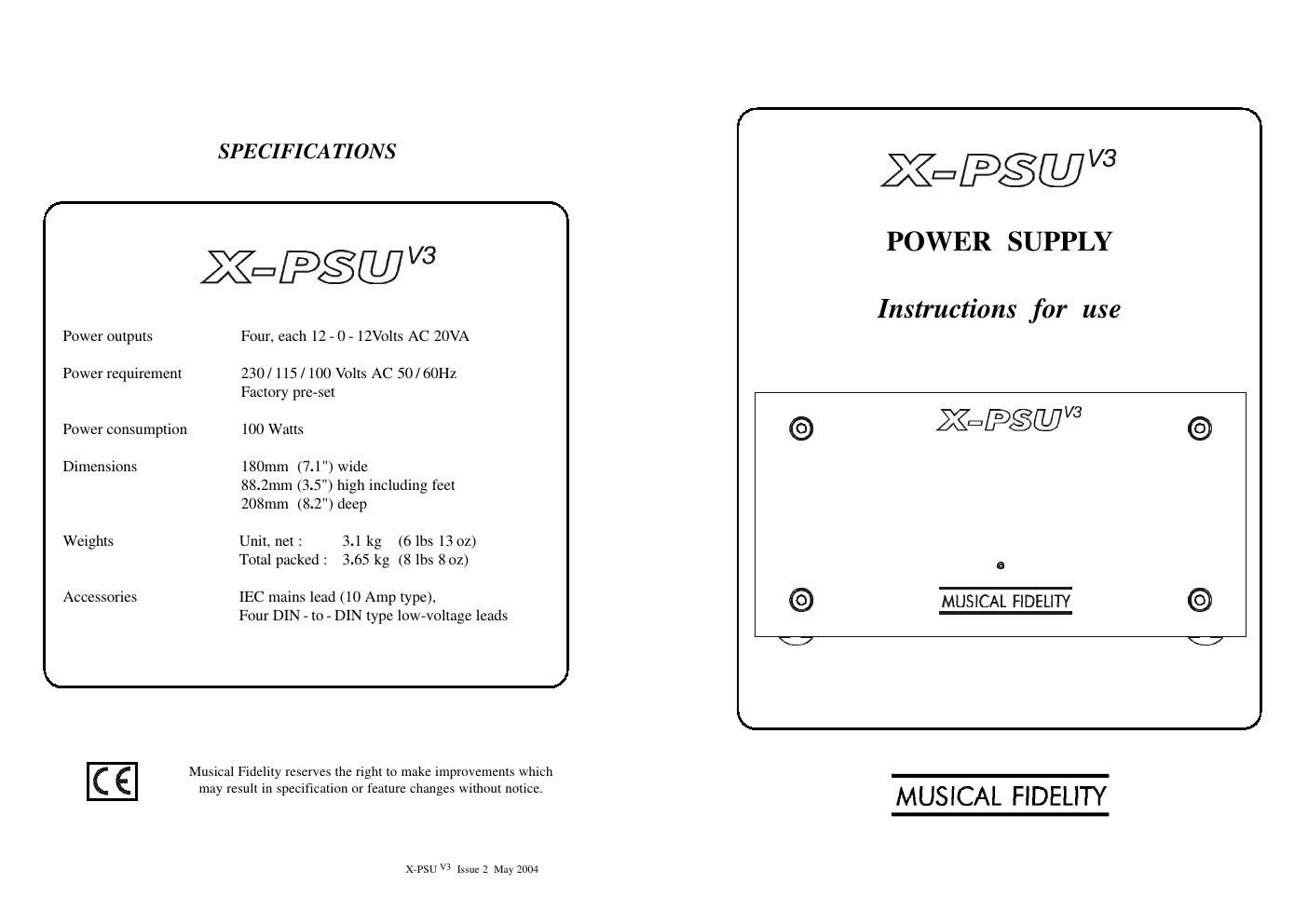

X-PSUV3 Issue 2 May 2004Introduction Thank you for purchasing the X-PSU Version 3 X Series upgrade power supply. The X-PSUV3 upgrades and powers up to four X V3 Series units. We sincerely hope that by further improving the performance of your X V3 Series components the X-PSUV3 will bring you many years of listening pleasure. Installation Precautions Your new X-PSUV3 is designed and built to provide trouble-free performance, but as with all electronic devices, it is necessary to observe a few precautions : nDo not use the X-PSUV3 near water. The unit must not be exposed to dripping or splashing and no objects filled with liquids, such as vases, must be placed on the unit. nKeep the X-PSUV3 away from heat such as radiators. No naked flame sources, such as lighted candles, should be placed on the unit. nPlace all connecting cables where they are not likely to be walked on, or trapped by items placed on them. Never open the case of the X-PSUV3 yourself, as this will invalidate the guarantee. There are no user adjustments inside. Please refer all service work to an authorised Musical Fidelity agent.Connections All connections should be made before the mains lead is plugged in. The X-PSUV3 has four power outputs marked 1 to 4, which are suitable for use with the X V3 Series range of products.Using any of the four accessory 3-pin DIN leads supplied, plug one end into the low-voltage inlet socket on your X V3Series unit, and the other end into one of theX-PSUV3 s outlet sockets on the rear panel. Repeat as necessary for up to three remaining X V3 Series low voltage power sockets. Ensure that the mains switch on the back panel of the X-PSUV3 is in the off position. Now insert the accessory IEC mains lead into the X-PSUV3 s inlet socket, and plug the other end into a convenient wall mains outlet. Press the mains rocker switch on the back panel of the X-PSUV3 . The blue powerindicator LED on the front panel will light confirming that the unit is now ready for use.DESIGNED IN ENGLAND BY MUSICAL FIDELITY SERIAL NUMBER POWER CONSUMPTION 100WIMPORTANTTHIS APPLIANCE MUST BE EARTHED50/60Hz POWER SUPPLY UNITOUTPUTS 41 2 3IEC Mains Inlet SocketMains rocker switchLow-voltage outlet sockets
