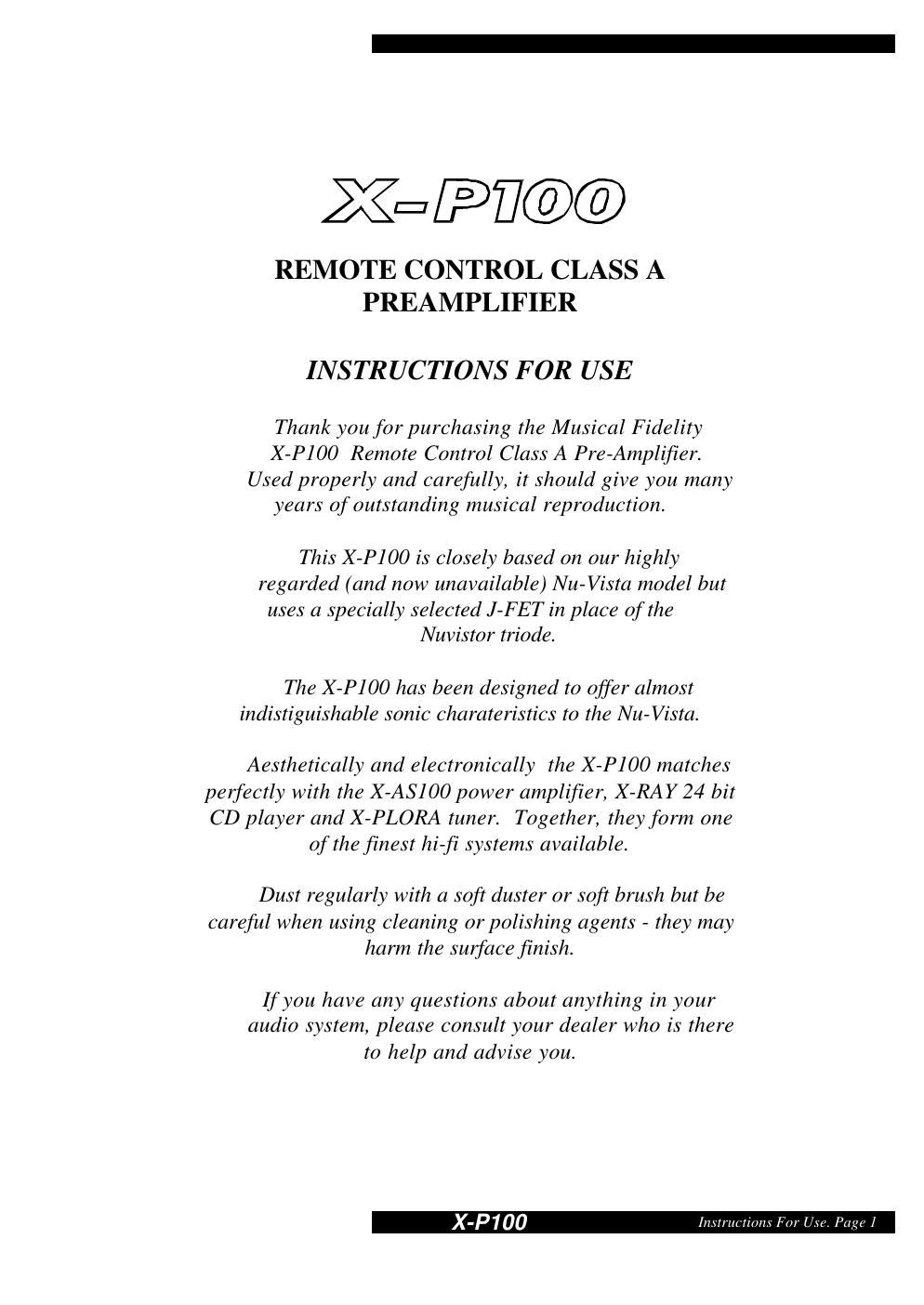

Page 1
Instructions For Use. Page 2 X-P100PLEASE READ IMPORTANT! This unit is supplied in the UK with a mains lead fitted with a moulded 13 amp plug. If, for any reason, you need to cut off this plug, please observe the following safety precau- tions. Please dispose of the cut-off plug safely. It must not be plugged into a mains power supply. The wires in the mains lead supplied with this appliance are coloured in ac- cordance with the following code: Green and yellow..............Earth Blue...............................Neutral Brown................................Live WARNING - This appliance must be earthed As the colours of the wires of the mains lead of this appliance may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows: -The wire which is coloured green-and-yellow must be connected to the termi- nal in the plug which is marked with the letter E or coloured green or green-and-yellow, or by the earth symbol . -The wire which is coloured brown must be connected to the terminal which is marked with the letter L or coloured red. -The wire which is coloured blue must be connected to the terminal which is marked with the letter N or coloured black. -If connecting to a BS1363 plug, a 10 amp fuse must be used. WARNING - Radio Frequency Interference (RFI) This hi-fi product has been tested to ensure that its operation will not be adversely affected by normal background levels of RFI. It is possible that if this product is subjected to abnormally high levels of RFI the unit may be susceptible and not perform as expected. In the unlikely event of this happening on a regular basis, please contact Musical Fidelity's service department. The unit has also been tested to ensure that it does not radiate excessive levels of RFI that could affect other pieces of electronic or electrical equipment. The electronics in modern hi-fi equipment is complex and hence may be dam- aged by lightning. It is possible that during electrical storms the operation of some equipment may be adversely affected. For complete protection of your hi-fi system during such storms, mains plugs and aerial leads should be disconnected. Always ensure that when disconnecting and reconnecting your hi-fi equipment the mains supply is switched off.
Page 2
Instructions For Use. Page 3 X-P100CONNECTIONS AND FACILITIES FRONT VIEW1Main unit power on indicator LED 2Volume control 3Infra Red remote receiver lens 4Tape monitor button 5Source selector switch 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15BACK VIEW6Input from external PSU unit 7Tape record output 8Tape input 9Aux 2 input 10Aux 1 input 11Tuner input 12CD input 13Preamp Output 14Phono (MM) input 15Phono chassis earth
