Musical fidelity xlp brochure
This is the 2 pages manual for musical fidelity xlp brochure.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from musical fidelity xlp brochure (Ocr-read)

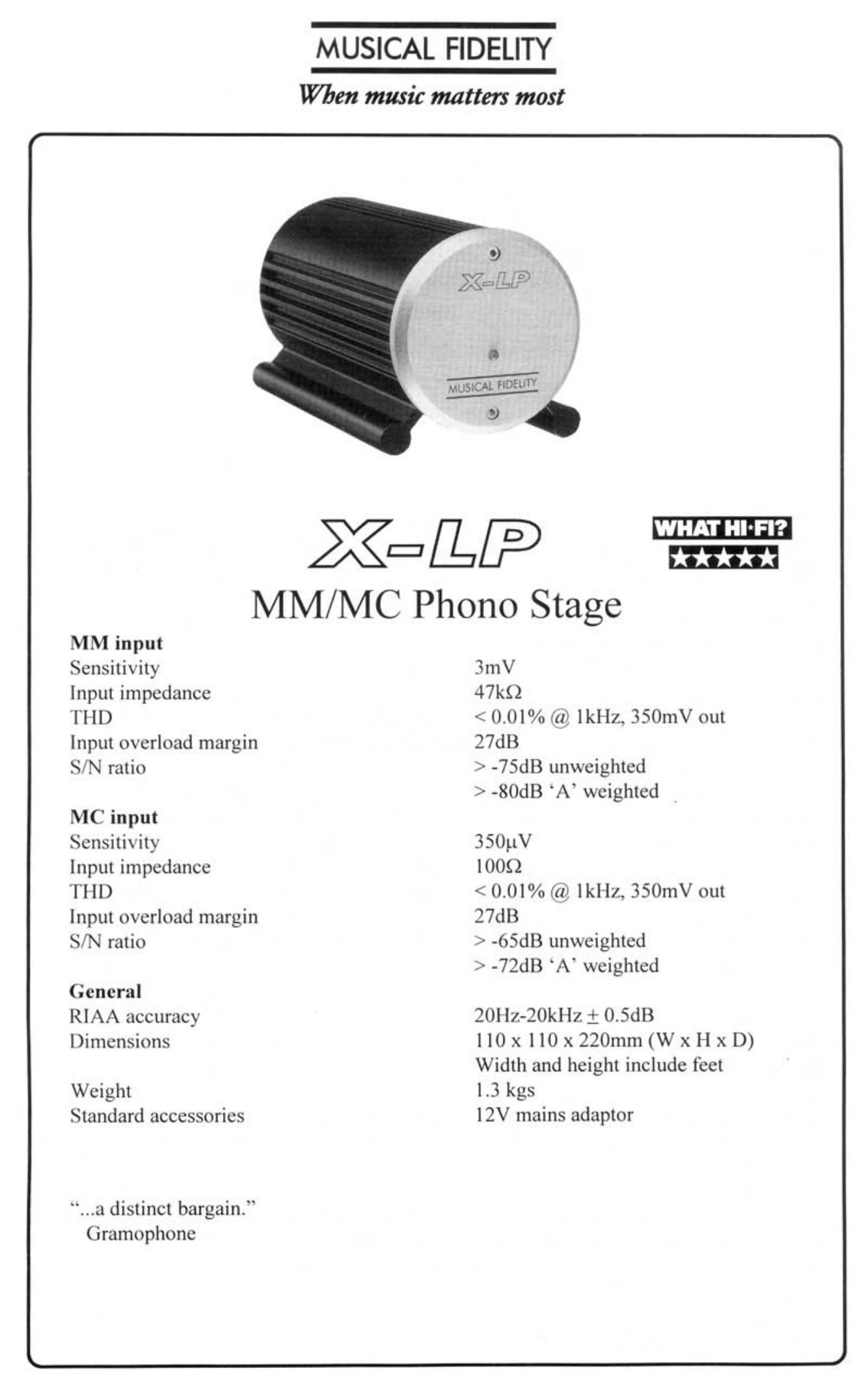

Page 2
MUSICAL FIDELITY
When music matters most
_ Xcfll?)
MM/Mc MONO STAGE
MAD. IN lNCMNU IV MUKAL "0.1""
I'NAC + + LINE OUT
500M # ,
MM MC MM MC
\\l -
\> ,
V
Features Benefits
Separate dedicated MM and MC inputs Allow use of either cartridge type into the
optimum termination impedance for the
best possible results
Wide overload margin Extended headroom allows effortless
handling of transients and dynamics
Sophisticated PCB layout with very Low noise. low distortion and accurate
close attention given to optimising RIAA gives a dynamic crystalline sound
circuit layout, the result of 15 years
experience with phono
Very low noise circuits Maximum available dynamic range and
low level detail resolution
Satisfyingly engineered in Musical Fidelitys X-Series cylindrical casing, this is a
phono stage offering fine value to both the eye and ear.
"...it significantly improves the sound of the already excellent Planar 2 turntable / Alpha
8 amp partnership [used for this test] and easily justifies the outlay. The decks perfonn-
ance is cleaned up and scaled out. giving instruments and voices a more realistic sense of
proportion and definition. The result is tremendous cohesion and listenability...
...the price tag makes the X-LP a bargain.
What Hi-Fi *kkki'
