Musical fidelity xas 100 owners manual
This is the 9 pages manual for musical fidelity xas 100 owners manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from musical fidelity xas 100 owners manual (Ocr-read)

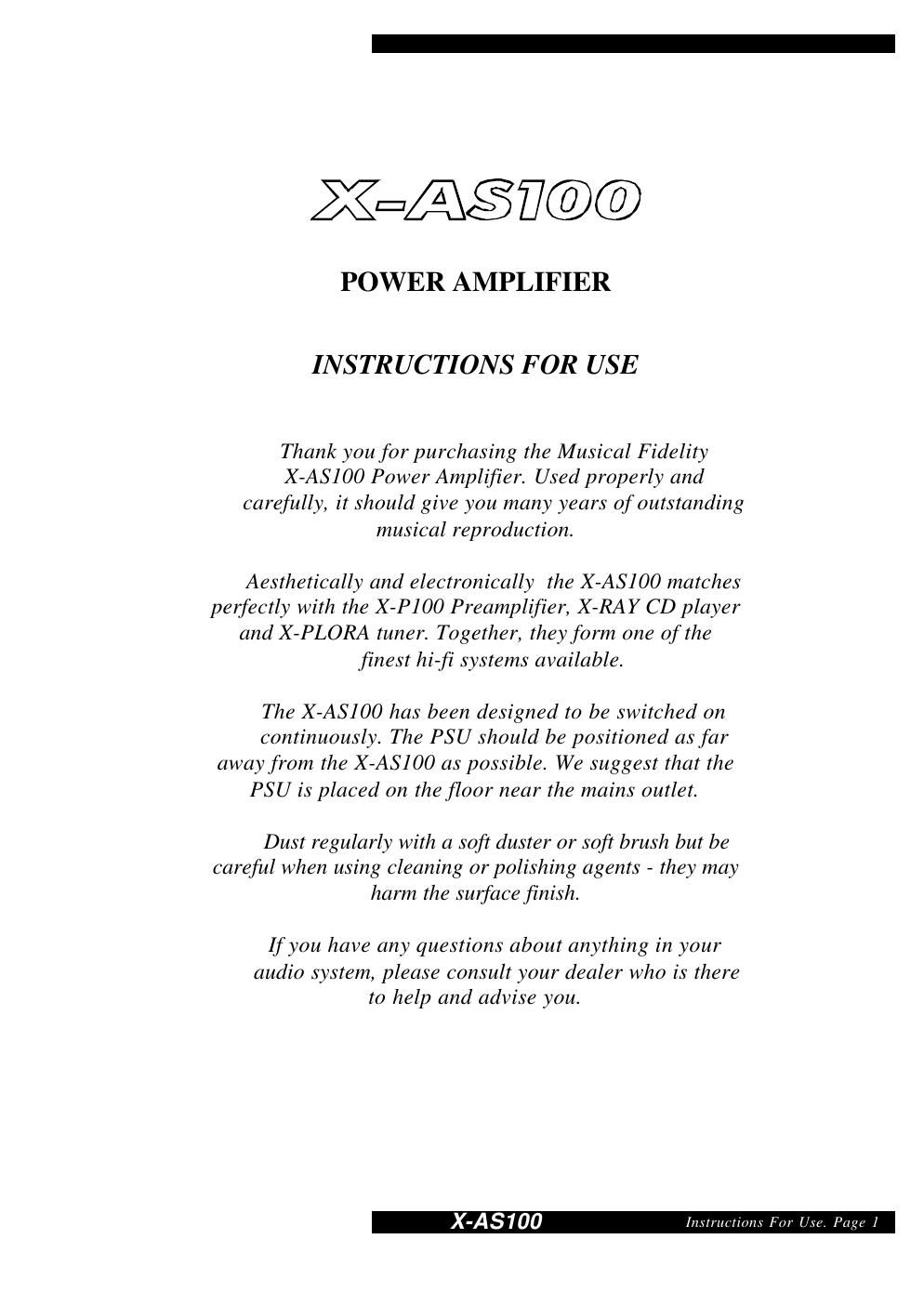

Page 1
Instructions For Use. Page 2 X-AS100PLEASE READ IMPORTANT! This unit is supplied in the UK with a mains lead fitted with a moulded 13 amp plug. If, for any reason, you need to cut off this plug, please observe the following safety precautions. Please dispose of the cut-off plug safely. It must not be plugged into a mains power supply. The wires in the mains lead supplied with this appliance are coloured in ac- cordance with the following code: Green and yellow..............Earth Blue...............................Neutral Brown................................Live WARNING - This appliance must be earthed As the colours of the wires of the mains lead of this appliance may not corre- spond with the coloured markings identifying the terminals in your plug, proceed as follows: -The wire which is coloured green-and-yellow must be connected to the termi- nal in the plug which is marked with the letter E or coloured green or green-and- yellow, or by the earth symbol . -The wire which is coloured brown must be connected to the terminal which is marked with the letter L or coloured red. -The wire which is coloured blue must be connected to the terminal which is marked with the letter N or coloured black. -If connecting to a BS1363 plug, a 10 amp fuse must be used. WARNING - Speaker Terminals In order to comply with BSEN60-065 safety regulations, the 4mm. banana plug holes have been fitted with plastic blanking pieces. Removal of these will invalidate any safety approval of this unit. WARNING - Radio Frequency Interference (RFI) This hi-fi product has been tested to ensure that its operation will not be ad- versely affected by normal background levels of RFI. It is possible that if this prod- uct is subjected to abnormally high levels of RFI the unit may be susceptible and not perform as expected. In the unlikely event of this happening on a regular basis, please contact Musical Fidelity's service department. The unit has also been tested to ensure that it does not radiate excessive levels of RFI that could affect other pieces of electronic or electrical equipment. The electronics in modern hi-fi equipment is complex and hence may be dam- aged by lightning. It is possible that during electrical storms the operation of some equipment may be adversely affected. For complete protection of your hi-fi system during such storms, mains plugs and aerial leads should be disconnected. Always ensure that when disconnecting and reconnecting your hi-fi equipment the mains supply is switched off.
Page 2
Instructions For Use. Page 3 X-AS100 CONNECTIONS AND FACILITIES 8 9 10 113 4 5 6 7BACK VIEW3Right channel input 4Right channel loop output 5Mono / Stereo button 6Left channel input 7Left channel loop output 8Right loudspeaker output 9Right PSU input 10Left PSU input 11Left loudspeaker output FRONT VIEW1Left channel power indicator 2Right channel power indicator1 2
