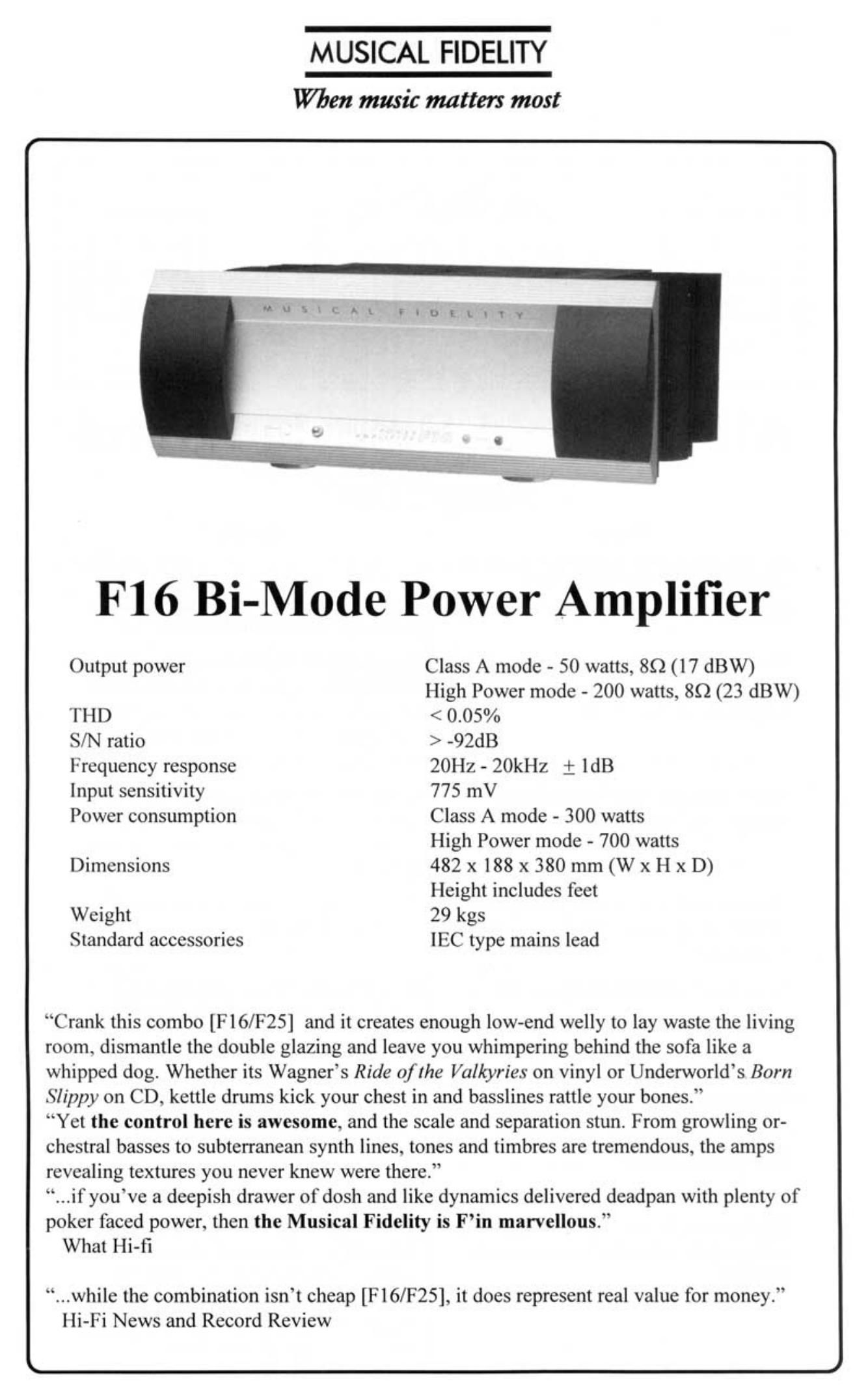

Page 1

MUSICAL FIDELITY

When music matters most

3CA1 VlDlLIYY

F16 Bi-Mode Power Amplifier

Output power Class A mode - 50 watts, 8Q (17 dBW)
High Power mode - 200 watts, 8Q (23 dBW)

THD < 0.05%

S/N ratio > -92dB

Frequency response 20Hz - ZOkHz : ldB

Input sensitivity 775 mV

Power consumption Class A mode - 300 watts
High Power mode - 700 watts

Dimensions 482 x 188 x 380 mm (W x H x D)
Height includes feet

Weight 29 kgs

Standard accessories lEC type mains lead

Crank this combo [F16/F25] and it creates enough low-end welly to lay waste the living
room. dismantle the double glazing and leave you whimpering behind the sofa like a
whipped dog. Whether its Wagners Ride oft/we Valkyries on vinyl or Underworlds Born
Slippy on C D. kettle drums kick your chest in and basslines rattle your bones.

"Yet the control here is awesome. and the scale and separation stun. From growling or-
chcstral basses to subterranean synth lines. tones and timbres are tremendous. the amps
revealing textures you never knew were there.

...ifyouve a deepish drawer of dosh and like dynamics delivered dcadpan with plenty of
poker faced power. then the Musical Fidelity is Fin marvellous.

What Hi-fi

...while the combination isnt cheap [F16/F25]. it does represent real value for money."
Hi-F i News and Record Review

Page 2

MUSICAL FIDELITY

When music matters most

CAUNON

am in"
.um-

MUSICALfIQELlTY
LT: 'i.
BI~MODE

AUDIOPHILE

PWER AMPLIFIER .. w

_. mu. any-.un-

F16 Bi-Mode Power Amplifier

Features

Unique Bi-Mode operation

Low feedback circuit with very large
stability margins

Gold plated phono and loudspeaker
sockets

Two pairs of loudspeaker binding posts

per channel

4 pairs of MOSFET output devices per
channel

Separate power supplies for the
Bi-Modc control circuitry and the
amplifiers themselves

Sophisticated extended star earthing
system

Balanced XLR input option

Benefits

Allows user to choose Pure Class A
operation (sweet valve-like sound quality)
or High Power operation (massive
headroom and drive ability)

Increased sound quality and excellent
control and drive

[)0 not tarnish and will maintain good
contact

Allows easy bi-wiring

High current design allows easy driving of
even "difficult" loudspeaker loads coupled
with tremendous authority and weight to
the bass response

The Bi-Mode control circuit is powered
from its own transformer and supply to
entirely separate the audio and control
circuits

All power supply earth and signal earth
currents have separate paths giving very
low noise and distortion

Makes a better electrical connection than
standard phono connectors. plus
minimises noise pickup on long cable runs
