Musical fidelity a 1001 owners manual
This is the 8 pages manual for musical fidelity a 1001 owners manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from musical fidelity a 1001 owners manual (Ocr-read)

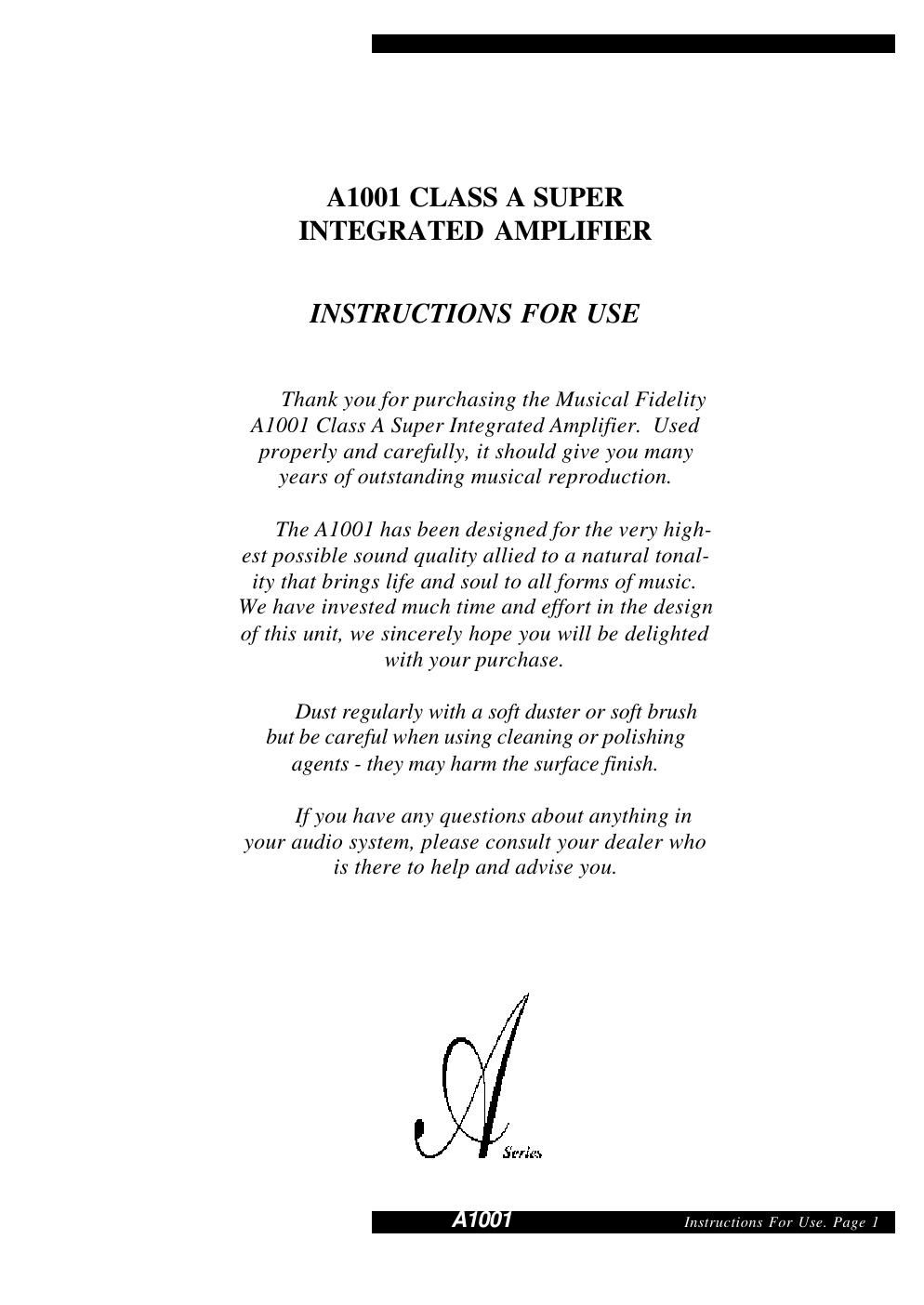

Page 1
Instructions For Use. Page 2 A1001PLEASE READ IMPORTANT! This unit is supplied in the UK with a mains lead fitted with a moulded 13 amp plug. If, for any reason, you need to cut off this plug, please observe the following safety precautions. Please dispose of the cut-off plug safely. It must not be plugged into a mains power supply. The wires in the mains lead supplied with this appliance are coloured in ac- cordance with the following code: Green and yellow..............Earth Blue...............................Neutral Brown................................Live WARNING - This appliance must be earthed As the colours of the wires of the mains lead of this appliance may not corre- spond with the coloured markings identifying the terminals in your plug, proceed as follows: -The wire which is coloured green-and-yellow must be connected to the termi- nal in the plug which is marked with the letter E or coloured green or green-and- yellow, or by the earth symbol . -The wire which is coloured brown must be connected to the terminal which is marked with the letter L or coloured red. -The wire which is coloured blue must be connected to the terminal which is marked with the letter N or coloured black. -If connecting to a BS1363 plug, a 10 amp fuse must be used. WARNING - Speaker Terminals In order to comply with BSEN60-065 safety regulations, the 4mm. banana plug holes have been fitted with plastic blanking pieces. Removal of these will invalidate any safety approval of this unit. WARNING - Radio Frequency Interference (RFI) This hi-fi product has been tested to ensure that its operation will not be ad- versely affected by normal background levels of RFI. It is possible that if this prod- uct is subjected to abnormally high levels of RFI the unit may be susceptible and not perform as expected. In the unlikely event of this happening on a regular basis, please contact Musical Fidelity's service department. The unit has also been tested to ensure that it does not radiate excessive levels of RFI that could affect other pieces of electronic or electrical equipment. The electronics in modern hi-fi equipment is complex and hence may be dam- aged by lightning. It is possible that during electrical storms the operation of some equipment may be adversely affected. For complete protection of your hi-fi system during such storms, mains plugs should be removed and aerial leads disconnected. Always ensure that when disconnecting and reconnecting your hi-fi equipment the mains supply is switched off.
Page 2
Instructions For Use. Page 3 A1001BACK PANEL7Right speaker outputs 8CD input 9Tuner input 10Aux 1 input 11Aux 2 input 12Aux 3 input 13Tape input 14Tape record output 15Preamp output 16Left speaker outputs 17Right preamp & power amp link 18Left preamp & power amp link 19IEC type mains inlet FRONT PANEL1Power (on / off) button 2Tape / source select (tape monitor) button 3Volume control 4Volume position & mute LED 5Source selector buttons 6Remote receiver lens1 2 4 5 6 3 7 8 9 10 11 12 13 14 15 16 17 18 19 CONNECTIONS AND FACILITIES
