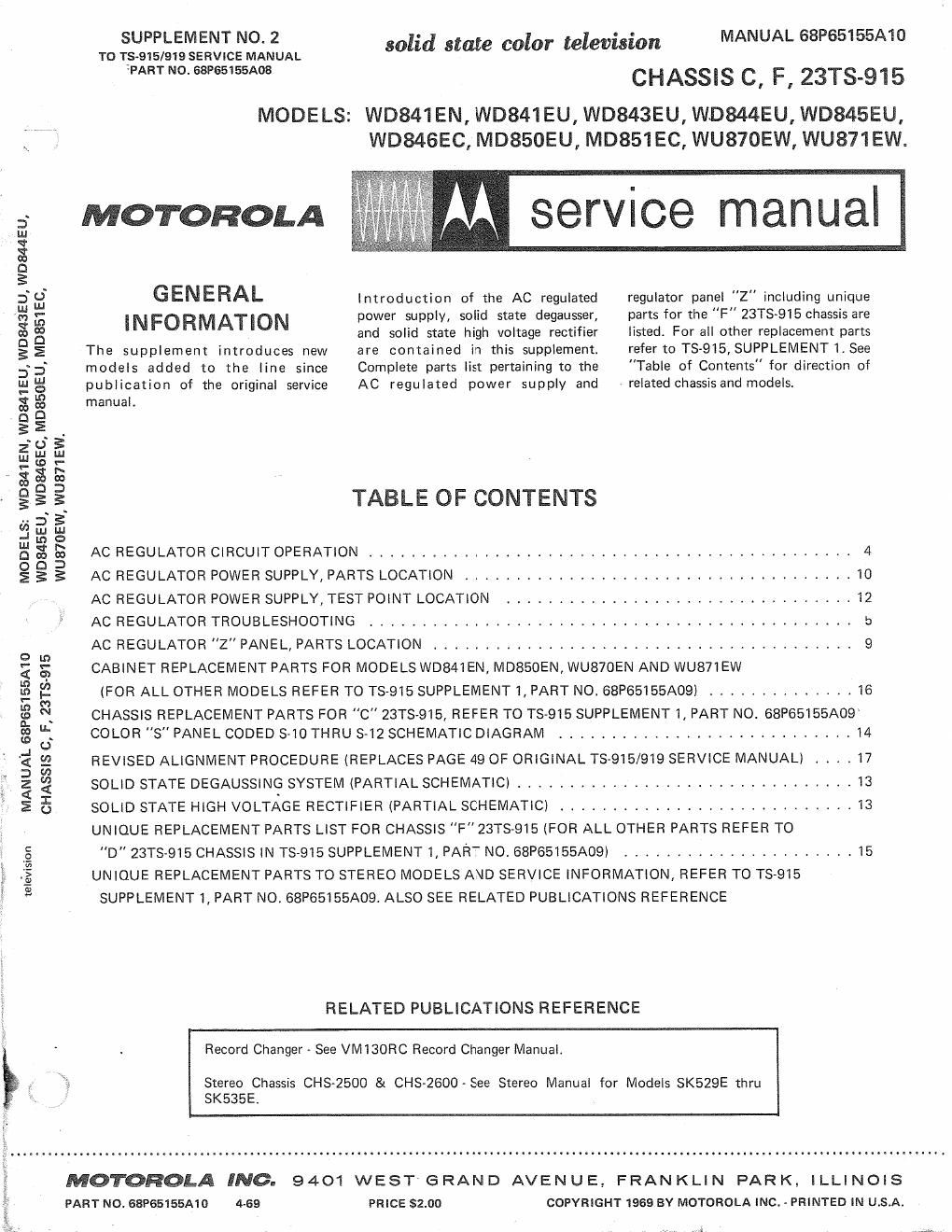

Motorola wd 844 eu service manual
This is the 20 pages manual for motorola wd 844 eu service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from motorola wd 844 eu service manual (Ocr-read)
Page 2
MODEL BREAKDOWN CHART
SALES SERVICE
MODEL MODEL VHF UHF
NUMBER NUMBER CHASSIS TUNER TUNER CRT
WD841EN WDS41EN F23TS»915 OPTT-414or TT«6300r 25AP22,253P22,
0PTT-417 TT»633 25XP22, 252P22
WDS41EU WD841EU-1
WDS43EU WD843EU-l
WD844EU WD844EU~1
WD845EU WDS45EU-1
WDB46EU WDS46EC-1
*MDBSOEU MD850EU-1
*MDSSOEN MDSSOEN
*MD851EC MDSSlEC-1
WU87OEW wua7oew C23TS-915 TT-631 or
TT-632
WU871EW WU871EW I
*Stereo Theatre Models: Using OHS-2500 AM/FM Tuner, OHS-2600 Amplifier and VMI30RC Record
Changeri All models feature AFC/FT! (Automatic Fine Tuning and Fine Tuning Indicator).
CHASSIS PREFIX
LETTER DESIGNATION FEATURES RELATED TO PREFIX LETTERS
"C" 23TS-915 .............. String Drive UHF
"F" 23TS-915 .............. AC Regulated Power Supply And Solid State HV Rectifier.
Service model number
with suffix - 1t .............. Indicates that receiver is equipped with a "F" 23TS-915.
Chassis suffix letter E Denotes chassis is equipped with solid state (PTC)
(i.e., T5915 "E"I .............. degaussing circuit.
Model W084 IE/V
Model M08505 U Model M085 7E0 Model WU870E W
Model WU87IEW
