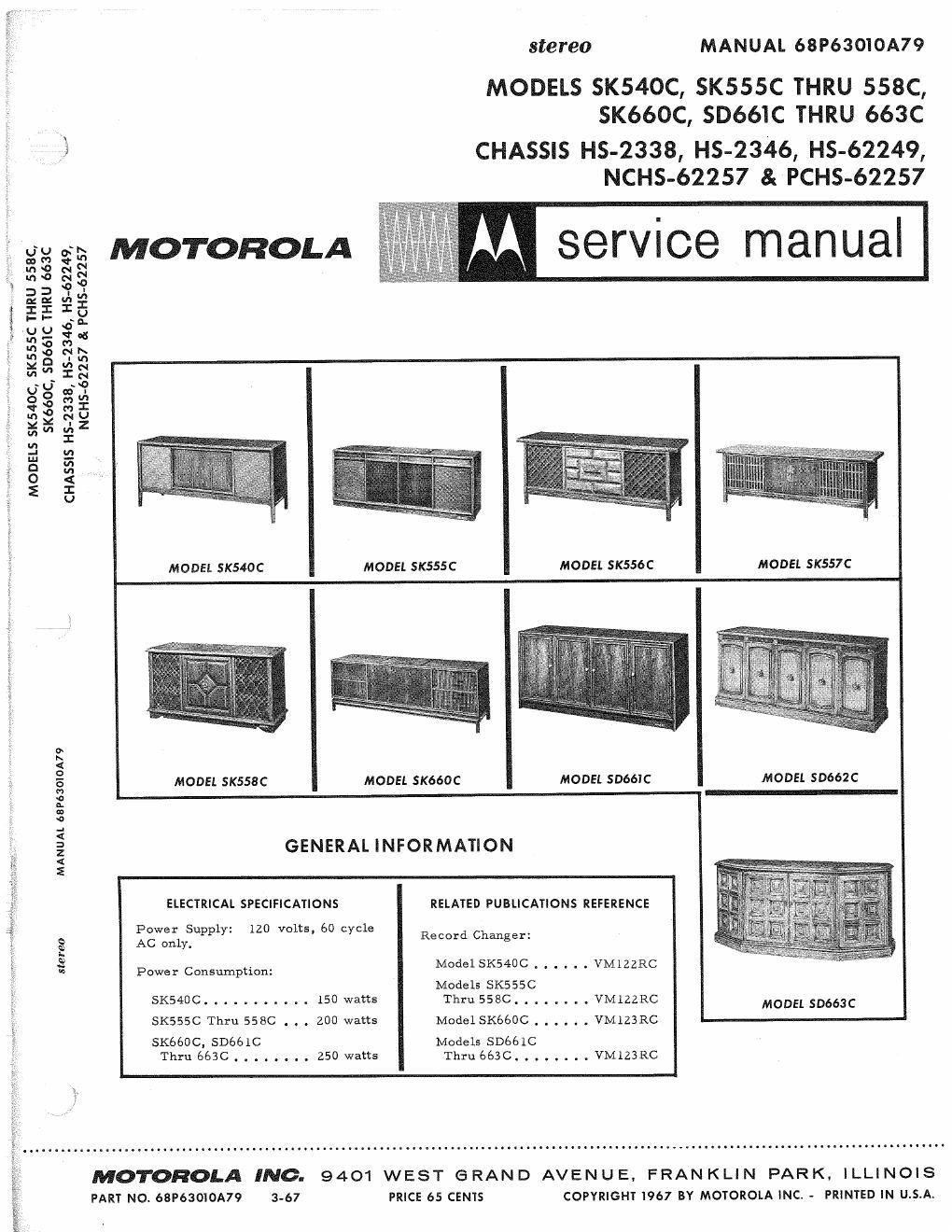

Motorola sk 558 c service manual

Page 2

SK SK SK SK SK SK SD 5D SD
099- NUMBER 540C 555C 556C 557C 558C 660C 661C 662C 663C
CHANNELS 2 2 2 2 2 3 3 3 3
50 I00 100 100 IOO 150 ISO I50 150
WATTS-MUSIC POWER OUTPUT
NUMBER OF SPEAKERS 5 6 6 6 5 6 <3 <5 6
2-I2 2-I2 2-I2" 2-12 2-I2" 2-12" 2-12" 2-12 2-I2
2-6" 2~6" 2-6" 2-6" 2-6" 2-8" 2-8 2-8" 2-8
SPEAKER COMPLEMENT Two Two Two Two Two Two Two Two Two
H.T. H.Ts H.T. H.T. H.T. H.T. H.T. H.T. H.T.
SEALED SOUND CHAMBERS Yes Yes Yes Yes Yes Yes Yes Yes
Yes Yes Yes Yes Yes Yes Yes Yes Yes
EXTERNAL SPEAKER PROVISIONS plus plus plus plus plus plus plus plus plus
S.W. S.W. S.W. S.W. S.W. S.W. S.W. S.W. S.W.
TAPE RECORDER
MOTOROLA 4-SPEED VM VM VM VM VM VM VM VM VM
AUTOMATIC RECORD CHANGER 122RC 122RC IZZRC 122RC IZZRC 123RC 123RC 123RC 123RC
Solid Solid Solid Solid Solid Solid Solid Solid Solid
CARTRJDGE Stare Sfote State STdre State Stofe Slate State State
STYLII DIG. Did. Die. Dia. Dlu . Die. Die. Die . Did .
CHANGER COMPARTMENT LIGHT Yes Yes Yes Yes Yes Yes Yes Yes Yes
RECORD STORAGE Yes Yes Yes Yes Yes Yes Yes Yes Yes
OUTPUT STAGE P.P. P.P, P.P. P.P. P.P. P.P. P.P. P.P. P.P.
LOUDNESS CONTROL Yes Yes Yes Yes Yes Yes Yes Yes Yes
TONE CONTROL
BASS AND TREBLE CONTROL Yes Yes Yes Yes Yes Yes Yes Yes Yes
BALANCE CONTROL Yes Yes Yes Yes Yes Yes Yes Yes Yes
TRANSFORMER POWER SUPPLY Yes Yes Yes Yes Yes Yes Yes Yes Yes
Cir. Cir. Cir Cir. Cir. Cir. Cir. Cir. Cir.
CIRCU PROTECTIO Guard Guard Guard Guard Guard Guard Guard Guard Guard
ON-OFF INDICATOR Yes Yes Yes Yes Yes Yes Yes Yes Yes
STEREO HEADPHONE JACK Yes Yes Yes Yes Yes Yes Yes Yes Yes
TAPE INPUT AND OUTPUT JACKS Yes Yes Yes Yes Yes Yes Yes Yes Yes
NOISE FILTER Yes Yes Yes Yes Yes Yes Yes Yes Yes
LOC/DISTI SWITCH Yes Yes Yes Yes Yes Yes Yes Yes Yes
EXTENDED BASS Yes Yes Yes Yes Yes Yes Yes Yes Yes
FM MUTE Yes Yes Yes Yes Yes Yes Yes Yes Yes
NUMBER OF TRANSISTORS 34 34 34 34 34 39 39 39 39
45 R.P.M. SPINDLE AND STORAGE Yes Yes Yes Yes Yes Yes Yes Yes Yes
- NCHS NCHS NCHS NCHS NCHS PCHS PCHS PCHS PCHS
TUNER 55 62257 62257 62257 62257 62257 62257 62257 62257 62257
HS HS HS HS HS HS HS HS HS
AMPL'F'ER 555 2338C 62249 62249 62249 62249 23468 23463 2346B 23468
OTHER CHASSIS
HEIGHT 26 24-5/ " 25 24" 295/ " 24 292" 30%" 30%"
WIDTH (in inches) 56 60 64" 72 56" 72 60% 67" 6621,"
DEPTH 18-5/8 18%" 19" 19-5/8" I9-7/8" I85/8 IVS/8" 195/8" 20,3"
SK SK SK 5K SK SK SD SD SD
MODEL NUMBER 540C 555C 556C 557C 558C 660C 661C 662C 663C
