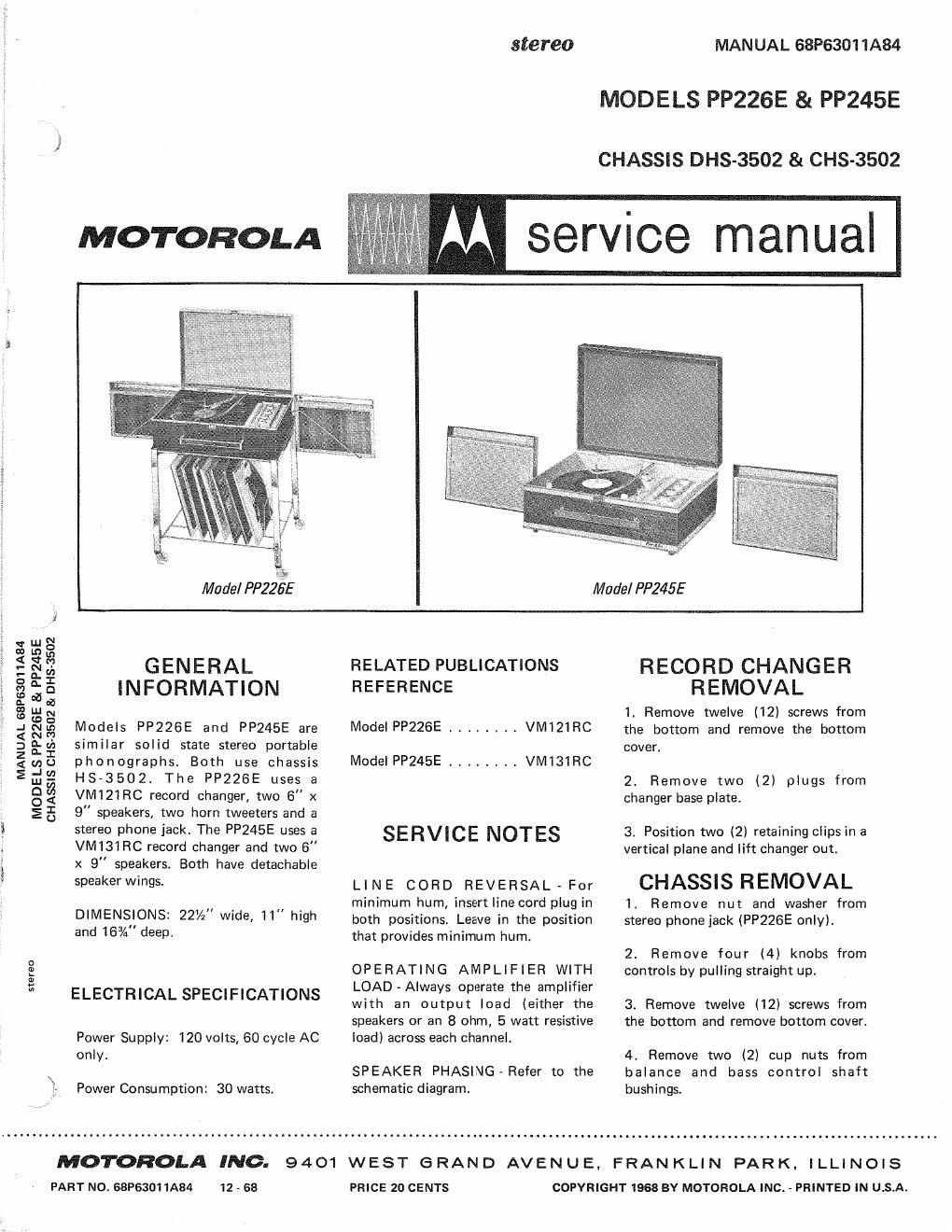

Page 1

stereo MANUAL 68P6301 1A84

MODELS PP226E & PP245E

}
CHASSIS DHS-3502 & OHS-3502
, , f
_ J
it
Made/PP245E
2
g 34%
§§3 GENERAL RELATED PUBLICATIONS RECORD CHANGER
g3: INFORMATION REFERENCE REMOVAL
$33 I. Remove twelve (12) screws from
i 2% Models PP226E and PP245E are Model PP2265 ........ VMIZIRC the bottom and remove the bottom
3 &% similar solid state stereo portable cover.
Emu phonographs. Both use chassis Model PP245E ........ VMISIRC
Eda HS-3502. The PP226E uses a 2. Remove two (2) plugs from
8 < VMIZIRC record changer, two 6" x changer base plate.
5 5 9" speakers, two horn tweeters and a

WA,» .w

Stereo

stereo phone jack. The PP245E uses a
VM131RC record changer and two 6"
x 9" speakers. Both have detachable
speaker wings.

DIMENSIONS: 22'/2" wide, 11" high
and 163/4" deep.

ELECTRICAL SPECIFICATIONS

Power Supply: 120 volts, 60 cycle AC
only.

Power Consumption: 30 watts.

SERVICE NOTES

LINE CORD REVERSAL - For
minimum hum, insert line cord plug in
both positions. Leave in the position
that provides minimum hum.

OPERATING AMPLIFIER WITH
LOAD - Always operate the amplifier
with an output load (either the
speakers or an 8 ohm, 5 watt resistive
load) across each channel.

SPEAKER PHASING-Refer to the
schematic diagram.

3. Position two (2) retaining clips in a
vertical plane and lift changer out.

CHASSIS REMOVAL

1. Remove nut and washer from
stereo phone jack (PPZZGE only).

2. Remove four (4) knobs from
controls by pulling straight up.

3. Remove twelve (12) screws from
the bottom and remove bottom cover.

4. Remove two (2) cup nuts from
balance and bass control shaft
bushings.

MOTOROLA INC.
PART No. 68P63011A84

9401 WEST GRAND AVENUE, FRANKLIN PARK,
PRICE 20 CENTS

ILLINOIS
