Motorola pp 218 d service manual

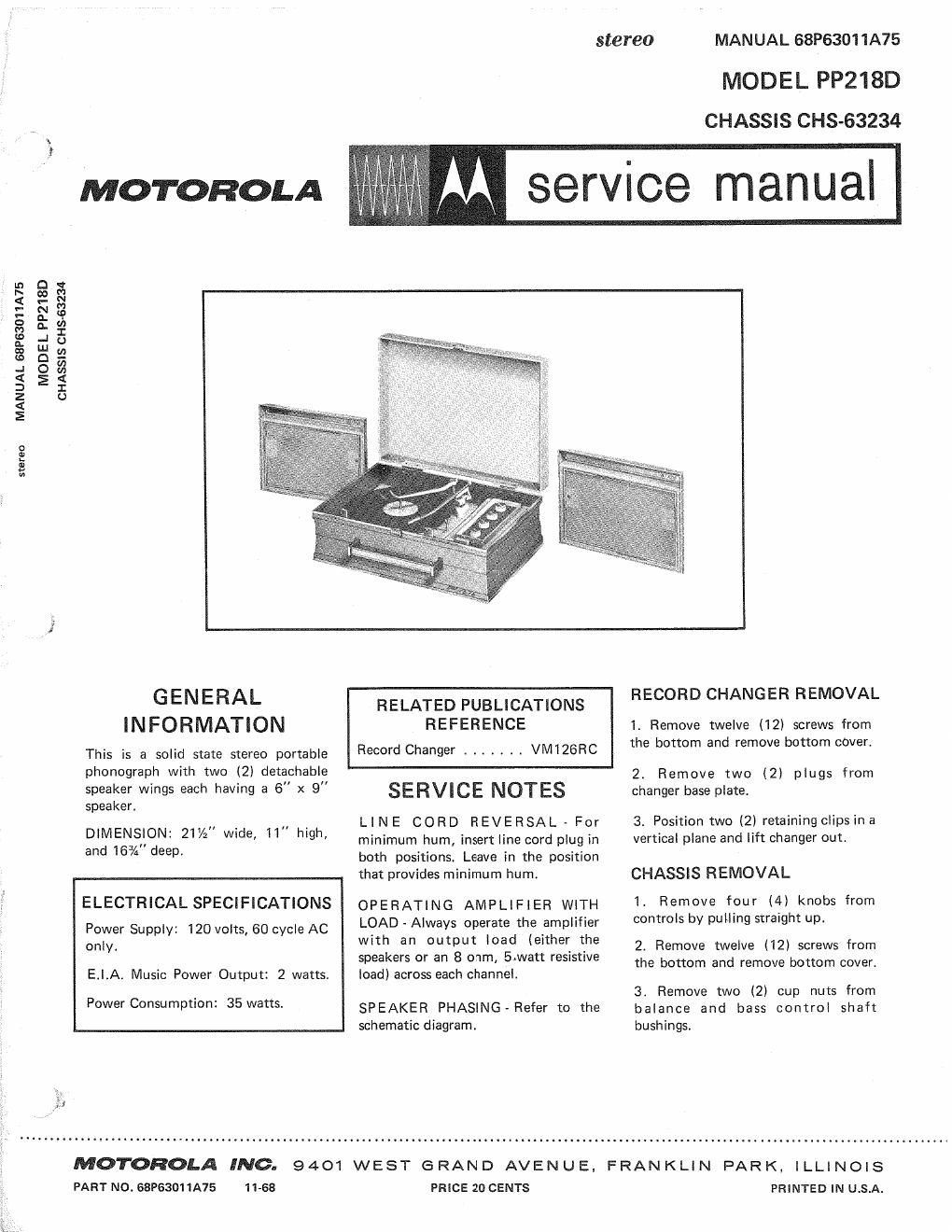

Page 1

stereo MANUAL 68P63011A75

MOD E L PP218D
CHASSIS CHS-63234

MANUAL 68P630I1A75

stereo

WM

MODE L PP2180
CHASSIS CHS»63234

MOTOROLA

service manual

GENERAL RELATED PUBLICAUONS RECORD CHANGER REMOVAL
INFORMATION REFERENCE 1. Remove twelve (12) screws from
This is a solid state stereo portable Record Changer ------ VMIZGRC the bottom and remove bottom cover.
phonograph with two (2) detachable

speaker wings each having a 6" x 9"
speaker.

DIMENSION: 211/2" Wide, 11" high,
and 16%" deep.

ELECTRICAL SPECIFICATIONS

Power Supply: 120 volts, 60 cycle AC
only.

E.l,A. Music Power Output: 2 watts.

Power Consumption: 35 watts.

MOTOROLA INC.

PART NO. 68P63011A75 11-68

SERVICE NOTES

LINE CORD REVERSAL » For
minimum hum, insert line cord plug in
both positions. Leave in the position
that provides minimum hum.

OPERATING AMPLIFIER WITH
LOAD - Always operate the amplifier
with an output load (either the
speakers or an 8 ohm, 5.watt resistive
load) across each channel.

SPEAKER PHASlNG- Refer to the
schematic diagram.

9401 WEST GRAND AVENUE, FRANKLIN PARK,

PRICE 20 CENTS

2. Remove two (2) plugs from
changer base plate.

3. Position two (2) retaining clips in a
vertical plane and lift changer out.

CHASSIS REMOVAL

1. Remove four (4) knobs from
controls by pulling straight up.

2. Remove twelve (12) screws from
the bottom and remove bottom cover.

3. Remove two (2) cup nuts from
balance and bass control shaft
bushings.

I LLl N 018
PRINTED IN U.S.A.
