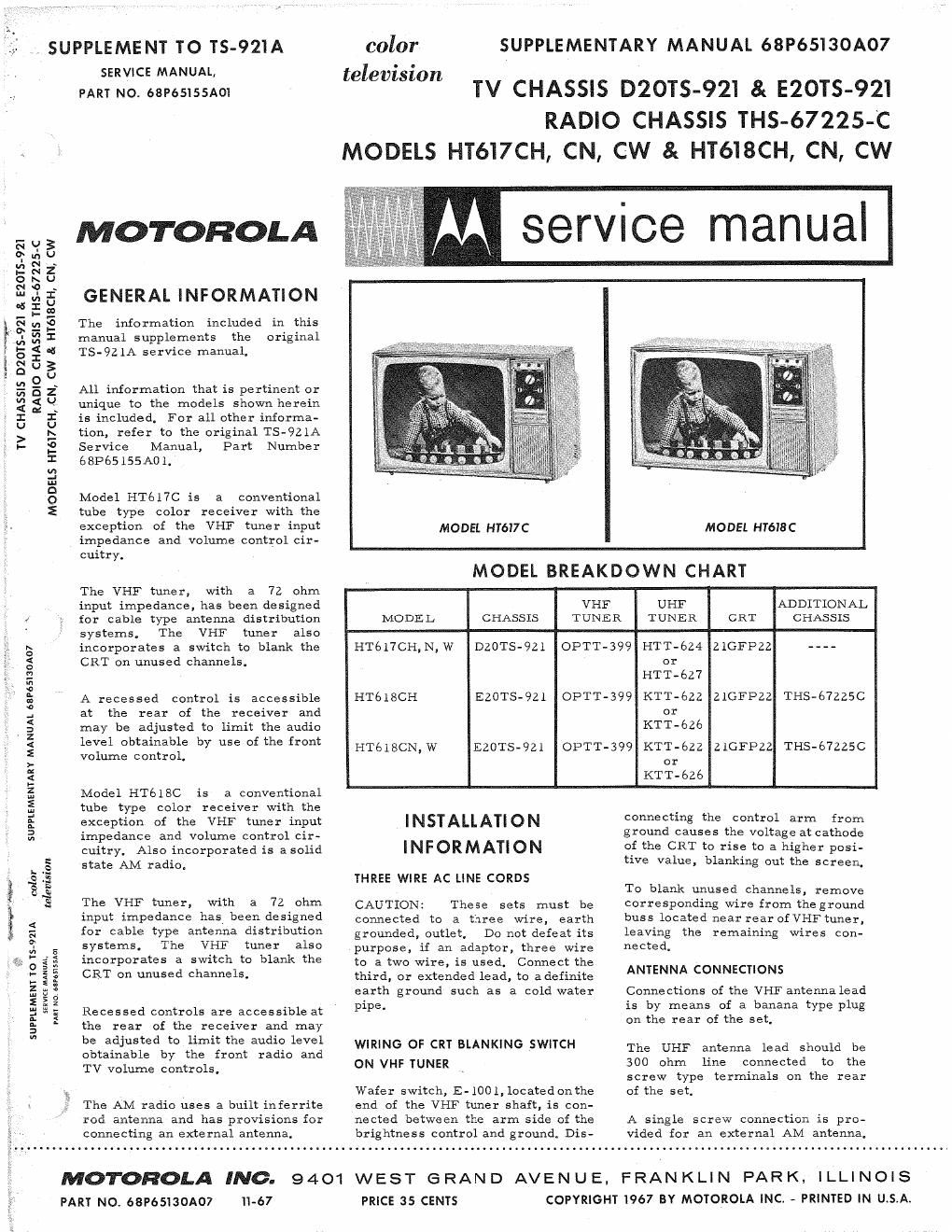

Motorola ht 617 ch service manual

Page 2

AM RADIO ALIGNMENT PROCEDURE

Use an isolation transformer between the power line and the receiver. If not available, connect low side of
generator to B- through a .1 mfcapacitor. Connect a low range output meter across speaker voice coil and
set volume control to maximum. Attenuate generator output to maintain 50 milliwatts on output meter to
prevent overloading (50 milliwatts is .64 volts across an 8 ohm load).

GENERATOR
GENERATOR FREQUENCY
STEP CONNECTION (400 cycle mod) GANG SETTING ADJUST REMARKS

IF ALIGNMENT

1. Radiation loop* 455Kc Fully open 1, 2, 3 8: 4 Adjust for maximum.
RF ALIGNMENT

2, Radiation loop* 535Kc Fully closed 7 Adjust for maximum.

3. Radiation loop* 1620Kc Fully open 5 Adjust for maximum.

4. Radiation loop* 1400Kc Tone for maximum 6 Adjust for maximum.

at 1400Kc
*Connect generator output across 5" diameter, 5-turn loop and couple inductively to receiver loop. Keep
radiation loop approximately 24" from ferrite antenna.
TO L1 IF IF
ANT BOT 90 TOP BOT TOP
we
TRIM
If 1_-I_ -J
' O
Q-
c2 _1 0
ON ANT
3 ASSEM I
03c (l:__l_fi fl um;
TRIM OSC CORE
ALIGNMENT POINTS

02

PARTS LOCATION
