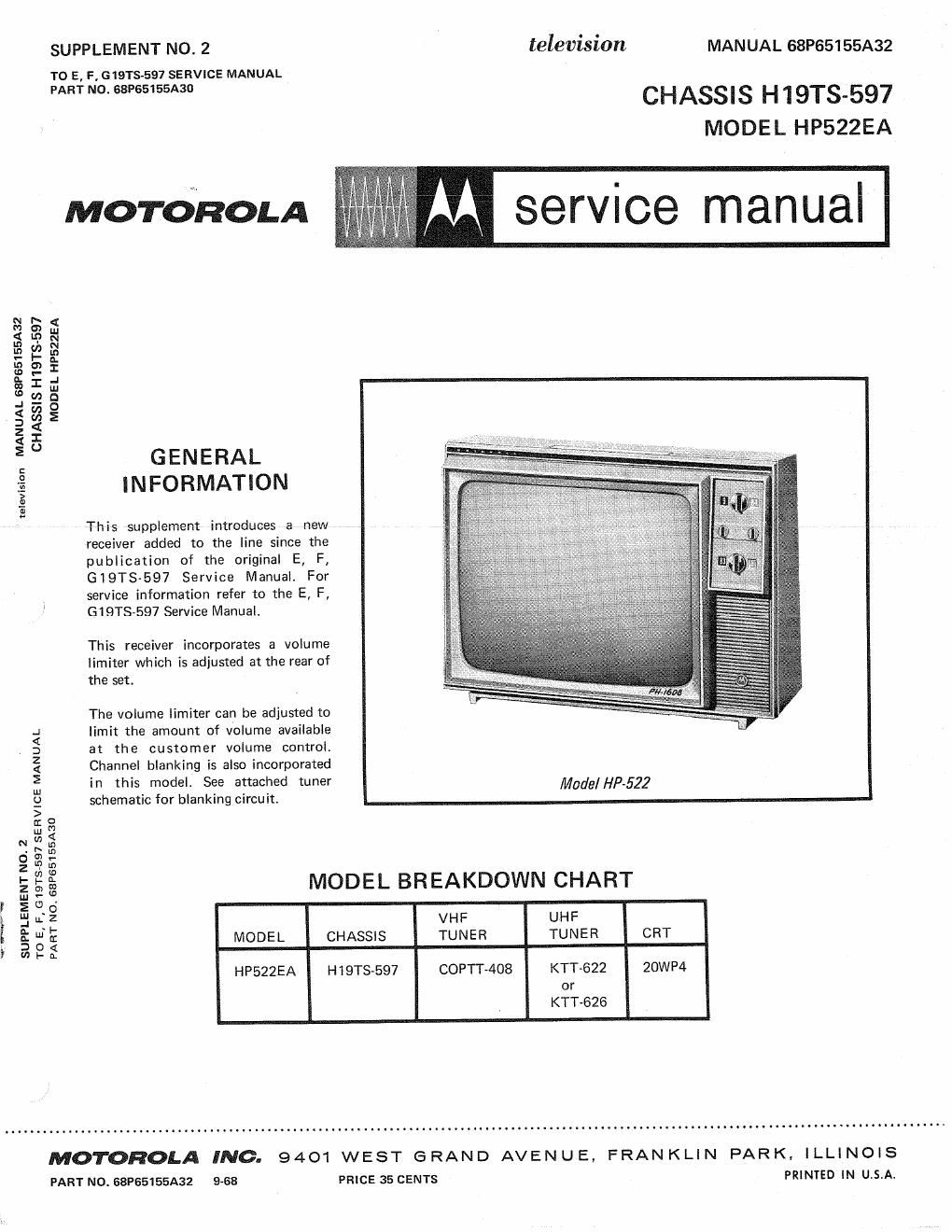

Page 1
SUPPLEMENT NO. 2 television MANUAL 68P65155A32
TO E, F. GETS-597 SERVICE MANUAL
PART NO. 68P65155A3D
CHASSIS H19TS-597
MODEL HP522EA
MOTOROLA
M service manual
CHASSIS H 19TS-597
MODEL HP522EA
GENERAL
INFORMATION
' television MANUAL 68P65155A32
3Chis. supplement intreduces a new
receiver added to the line since the
publication of the original E, F,
GIQTS-597 Service Manual. For
service information refer to the E, F,
G19TS~597 Service Manual.
This receiver incorporates a volume
limiter which is adjusted at the rear of
the set.
The volume limiter can be adjusted to
limit the amount of volume available
at the customer volume control.
Channel blanking is also incorporated
in this model. See attached tuner Model HP-522
schematic for blanking circuit.
MODE L BR EAKDOWN CHART
VHF UHF
MODEL CHASSlS TUNER TUNER CRT
T0 E, F, G19TS-597 SERVICE MANUAL
«.«mww
SUPPLEMENT N0. 2
PART NOt 68P65155A30
HP522EA H19TS-597 COPTT-408 KTT-622 20WP4
or
KTT-626
MOTOROLA INC. 9401 WEST GRAND AVENUE, FRANKLlN PARK, ILLINOIS
PART NO.68P65155A32 9-68 PRICE 35 CENTS PRlNTED IN U.S.A.
