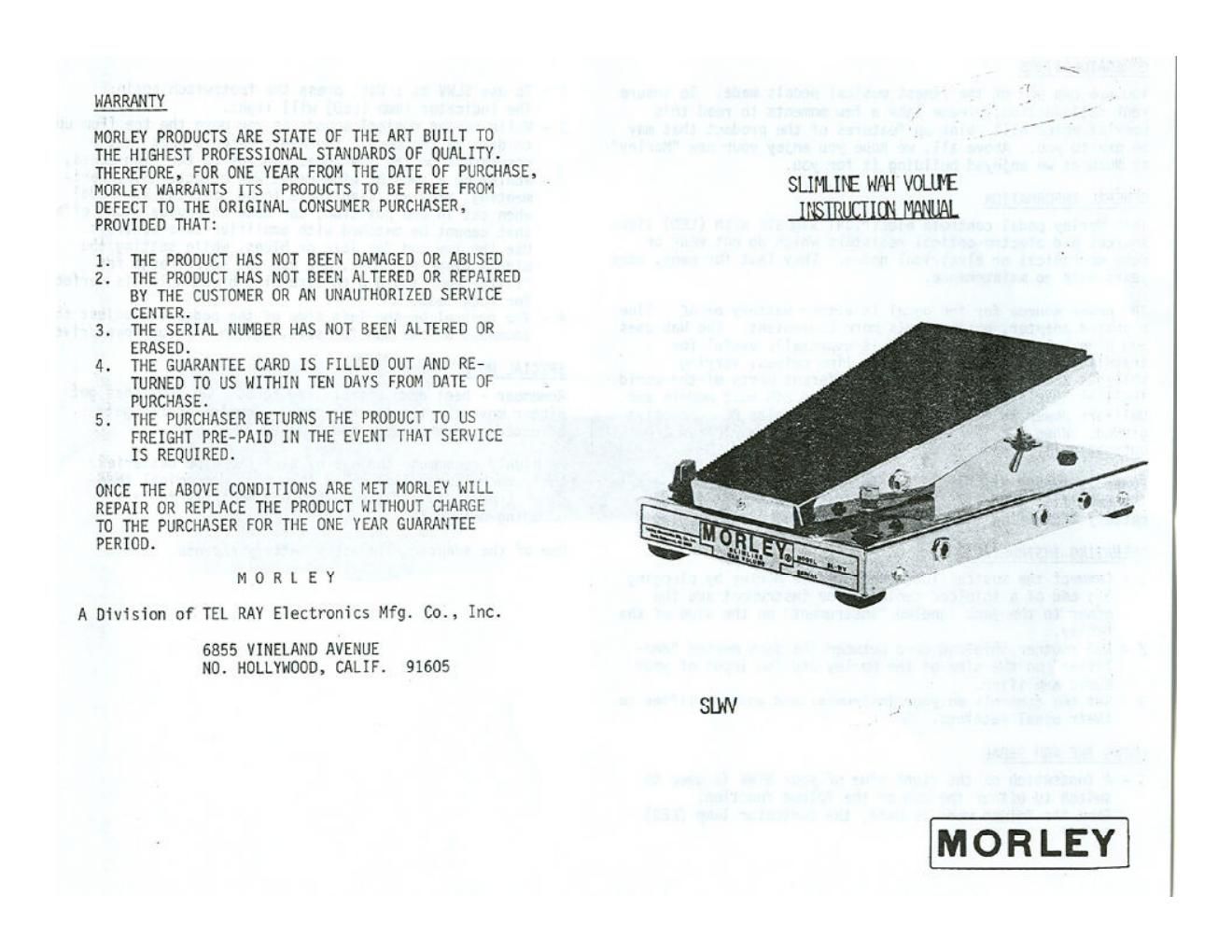

Page 1

WARRANTY

MORLEY PRODUCTS ARE STATE OF THE ART BUILT TO

THE HIGHEST PROFESSIONAL STANDARDS OF QUALITY.

THEREFORE FOR ONE YEAR FROM THE DATE OF PURCHASE,

MORLEY NARRANTS ITS PRODUCTS To BE FREE FROM SLIIVLITE RAH VOJFE

DEFECT TO THE ORIGINAL CONSUMER PURCHASER, W
PROVIDED THAT:

1 THE PRODUCT HAS NOT BEEN DAMAGED OR ABUSED

2. THE PRODUCT HAS NOT BEEN ALTERED OR REPAIRED
BY THE CUSTOMER OR AN UNAUTHORIZED SERVICE
CENTER.

3. THE SERIAL NUMBER HAS NOT BEEN ALTERED OR
ERASED.

4. THE GUARANTEE CARD IS FILLED OUT AND RE-
TURNED TO US WITHIN TEN DAYS FROM DATE OF
PURCHASE.

5. THE PURCHASER RETURNS THE PRODUCT TO US
FREIGHT PRE-PAID IN THE EVENT THAT SERVICE
IS REQUIRED.

ONCE THE ABOVE CONDITIONS ARE NET MORLEY NILL
REPAIR OR REPLACE THE PRODUCT WITHOUT CHARGE
TO THE PURCHASER FOR THE ONE YEAR GUARANTEE
PERIOD.

M O R L E Y

A Division of TEL RAY ETectronics Mfg. Co., Inc.

6855 VINELAND AVENUE
NO. HOLLYWOOD, CALIF. 91605

MORLEY

Page 2

CONGRATULATIONS

You now own one of the finest musical pedals made. To insure
your satisfaction, please take a few moments to read this
booklet which will point up features of the product that may
be new to you. Above all, we hope you enjoy your new "Morley
as much as we enjoyed building it for you.

GENERAL INFORMATION

This Morley pedal controls electrical signals with (LED) light
sources and electro-optical resistors which do not wear or
make mechanical or electrical noise. They last for many, many
years with no maintenance.

The power source for the pedal is either battery or AC line
operated adapter, whichever is more convenient. The Nah uses
two nine volt batteries. This is especially useful for
traveling musicians who encounter line noises, varying
voltages and power conditions in different parts of the world.
The line adapter is available in 120 and 240 volt models and
delivers power to the Morley at 12 to 16 volts DC negative
ground. -Nhen the adapter is plugged in, the batteries are
automatically disconnected.

Power is turned off with a switch or by removing the plug frun
the amplifier jack. This double precaution prevents the
battery from being inadvertently run down.

OPERATING INSTRUCTIONS

l - Connect the nusical instrunent to the Morley by plugging
one end of a shielded cable to the instrunent and the
other to the jack labeled "instrument" on the side of the
Marley.

2 - Use another shielded cord between the jack marked amp-
lifier" on the side of the Morley and the input of your
music amplifier.

3 - Set the controls on your instrument and your_anplifier to
their usual settings. ~

USING THE "AH PEDAL

1 - A footswitch on the right side of your SLWV is used to
switch to either the Nah or the Volume function.
When the Volume mode is used, the indicator lamp (LED)
is off.

2 - To use SLNV as a wah, press the footswitch again.
The indicator lamp (LED) will light. 1

3 - while making musical sounds as you move the toe from up
to down on the pedal. the Nah creates a peak in the
response from the low tones upwards to the high-tones,
achieving a smooth, wide- -range Hah effect. By experi-
menting, many musicians have found that the Nah pedal
when set in one position, can make an unusual tone effect
that cannot be matched with amplifier tone controls.
Use the low end for jazz or blues, while setting the
middle range for rock, and use the upper range for
"little amp" sound with screaming highs which is perfect
for rock lead.

4 - The control on the left side of the pedal can adjust the

loudness of the Hah for soft. medium or loud (overdrive).

SPECIAL NOTE

Remember - heel down affects low tones. As the tones get
higher move the toe further down. Complex chords get
affected everywhere the pedal moves.

We highly reconnend the use of alkaline type batteries.
Their much longer life makes them more economical than
other types. In addition, they are unlikely to leak
damaging chemicals.

Use of the adapter eliminates battery expense.
