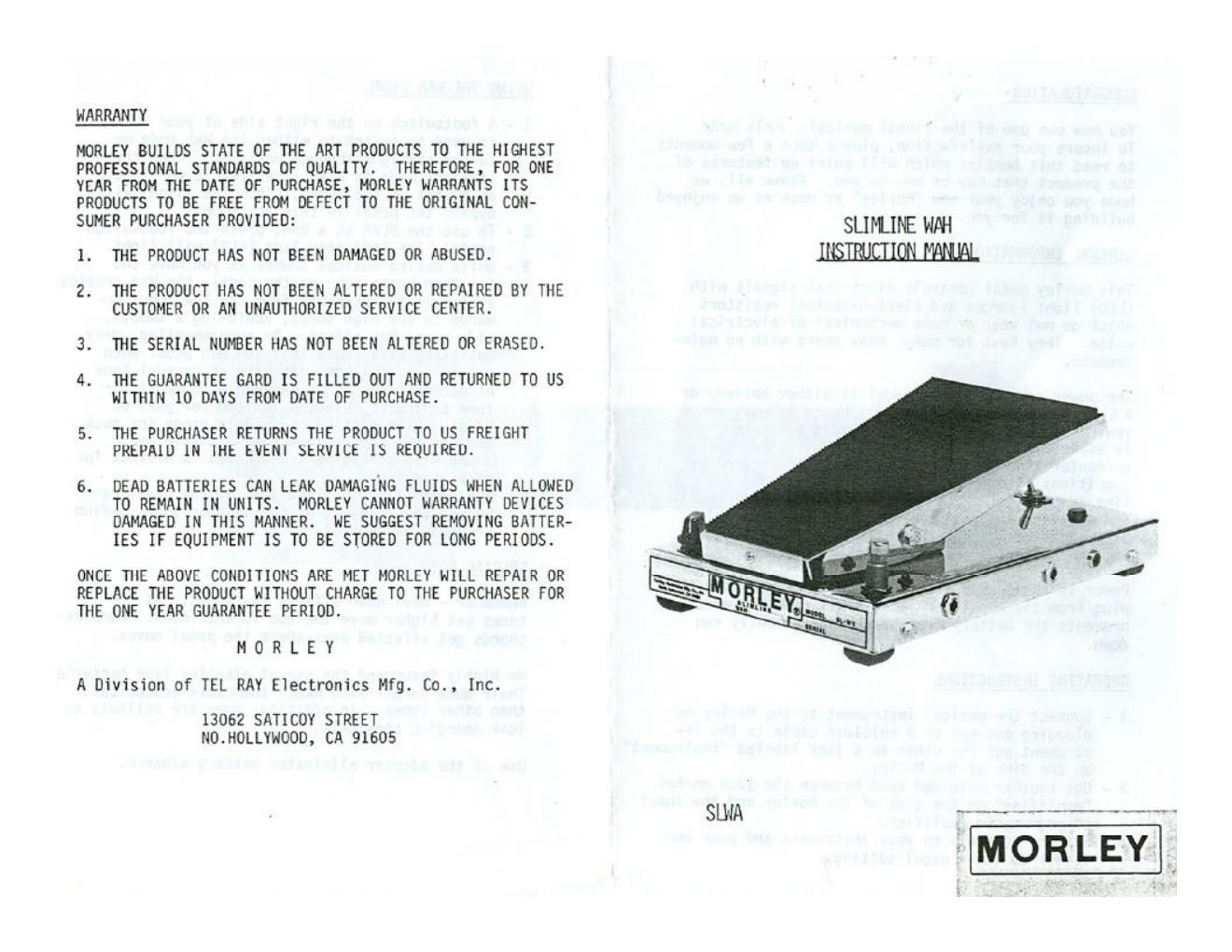

WARRANTY

MORLEY BUILDS STATE OF THE ART PRODUCTS TO THE HIGHEST
PROFESSIONAL STANDARDS OF QUALITY. THEREFORE, FOR ONE
YEAR FROM THE DATE OF PURCHASE, MORLEY HARRANTS ITS
PRODUCTS TO BE FREE FROM DEFECT TO THE ORIGINAL CON-
SUMER PURCHASER PROVIDED:

1. THE PRODUCT HAS NOT BEEN DAMAGED OR ABUSED.

2. THE PRODUCT HAS NOT BEEN ALTERED 0R REPAIRED BY THE
CUSTOMER OR AN UNAUTHORIZED SERVICE CENTER.

3. THE SERIAL NUMBER HAS NOT BEEN ALTERED OR ERASED.

4. THE GUARANTEE CARD IS FILLED OUT AND RETURNED TO US
WITHIN 10 DAYS FROM DATE OF PURCHASE.

5. THE PURCHASER RETURNS THE PRODUCT TO US FREIGHT
PREPAID IN THE EVENT SERVICE IS REQUIRED.

6. DEAD BATTERIES CAN LEAK DAMAGING FLUIDS WHEN ALLOHED
TO REMAIN IN UNITS. MORLEY CANNOT WARRANTY DEVICES
DAMAGED IN THIS MANNER. HE SUGGEST REMOVING BATTER-
IES IF EQUIPMENT IS TO BE STORED FOR LONG PERIODS.

ONCE THE ABOVE CONDITIONS ARE MET MORLEY HILL REPAIR OR
REPLACE THE PRODUCT WITHOUT CHARGE TO THE PURCHASER FOR
THE ONE YEAR GUARANTEE PERIOD.

M O R L E Y
A Division of TEL RAY ElectrOnics Mfg. 60., Inc.

13062 SATICOY STREET
NO.HOLLYHOOD, CA 91605

SUIA

SLIP/LINE TIA-I
W

MORLEY

Page 2

CONGRATULATIONS

You now own one of the finest musical pedals made.

To insure your satisfaction, please take a few moments
to read this booklet which will point up features of
the product that may be new to you. Above all. we
hope you enjoy your new "Morley" as much as we enjoyed
building it for you.

GENERAL INFORMATION

This Morley pedal controls electrical signals with
(LED) light sources and electro-optical resistors
which do not wear or make mechanical or electrical
noise. They last for many, many years with no main-
tenance.

The power source for the pedal is either battery or
A C line operated adapter, whichever is more con-
venient. The Nah uses two nine volt batteries. This
is especially useful for traveling musicians who
encounter line noises, varying voltages, and power
conditions in different parts of the world. The

line adapter is available in 120 and 240 volt models
and delivers power to the Morley at 12 to 16 volts
Dc negative ground. Nhen the adapter is plugged
in, the batteries are automatically disconnected.

Power is turned off with a switch or by removing the
plug from the amplifier jack. This double precaution
prevents the battery from being inadvertently run
down.

OPERATING INSTRUCTIONS

l - Connect the musical instrument to the Morley by
plugging one end of a shielded cable to the in-
strument and the other to a jack labeled "instrument"
on the side of the Morley.

2 - Use another shielded cord between the jack marked
"amplifier" on the side of the Morley and the input
of your music amplifier.

3 - Set the controls on your instrument and your amp-
lifier to their usual settings.

USING THE AH PEDAL

1 - A footswitch on the right side of your SLHA
is used to switch to either the Nah mode or
to the straight-through position. When the
straight mode is used, the treadle won't have
an effect on the sound, since the signal will
bypass the pedal in this position.

2 - To use the SLNA as a Nah, press the footswitch
again. The indicator lamp (LED) will light.

3 - While making musical sounds as you move the
toe from up to down on the pedal, the Nah creates
a peak in the response from the low tones up-
wards to the high tones, achieving a smooth.
wide-range Nah effect. By experimenting, many
musicians have found that the Nah pedal when
set in one position, can make an unusual tone
effect that cannot be matched with amplifier
tone controls. Use the low end for jazz or
blues. while setting the middle range for rock,
and use the upper range for a 'little amp"
sound with screaming highs which is perfect for
rock lead.

4 - The control on the left side of the pedal can
adjust the loudness of the Hah for soft, medium
or loud (overdrive).

SPECIAL NOTE

Remember - heel down affects low tones. As the
tones get higher move the toe further down. Complex
chords get affected everywhere the pedal moves.

We highly reconnend the use of alkaline type batteries.
Their much longer life makes them more economical

than other types. In addition, they are unlikely to
leak damaging chemicals.

Use of the adapter eliminates battery expense.
