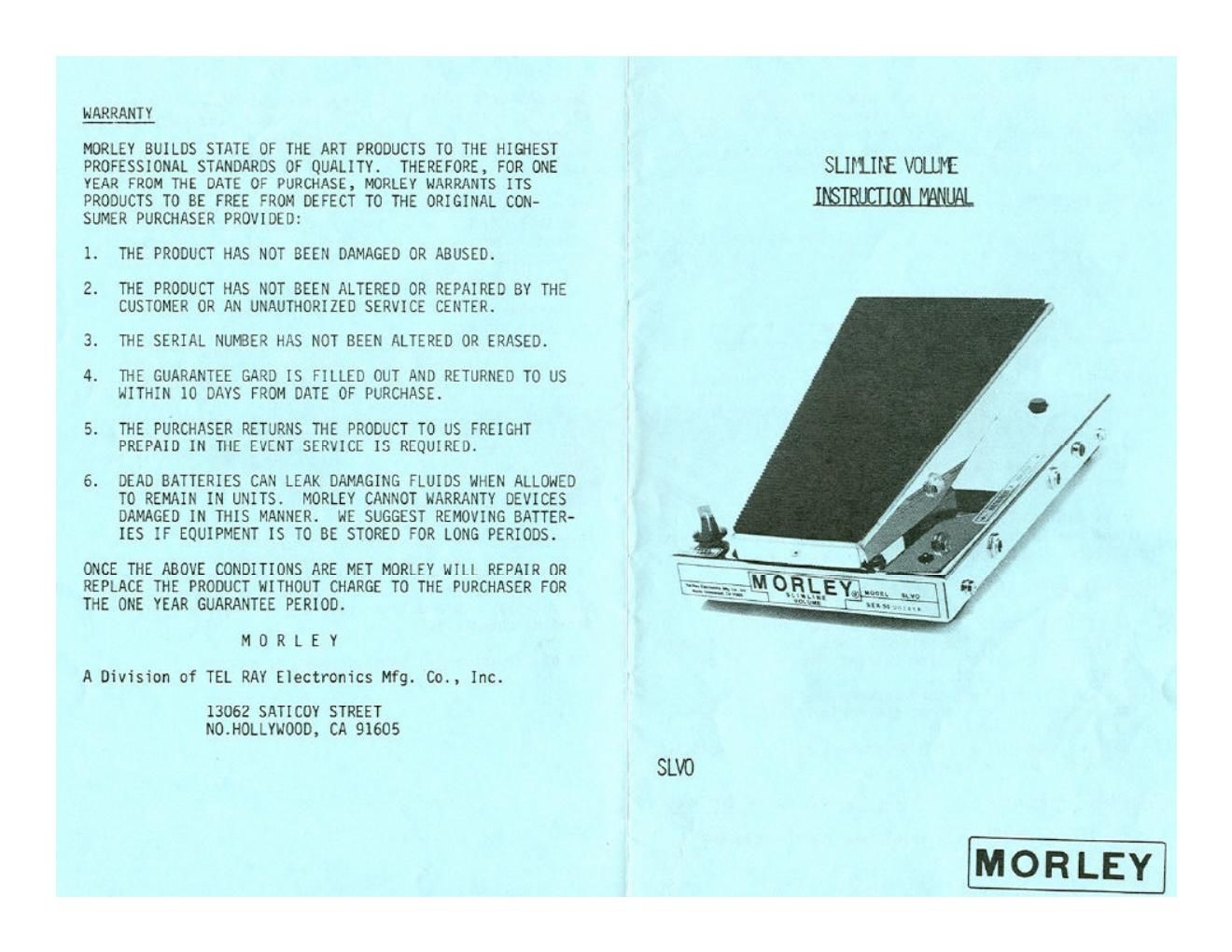

Page 1

NARRANTY

MORLEY BUILDS STATE OF THE ART PRODUCTS TO THE HIGHEST
PROFESSIONAL STANDARDS OF QUALITY. THEREFORE, FOR ONE
YEAR FROM THE DATE OF PURCHASE. MORLEY NARRANTS ITS
PRODUCTS TO BE FREE FROM DEFECT TO THE ORIGINAL CON-
SUMER PURCHASER PROVIDED:

I. THE PRODUCT HAS NOT BEEN DAMAGED OR ABUSED.

2. THE PRODUCT HAS NOT BEEN ALTERED 0R REPAIRED BY THE
CUSTOMER OR AN UNAUTHORIZED SERVICE CENTER.

3. THE SERIAL NUMBER HAS NOT BEEN ALTERED OR ERASED.

4. THE GUARANTEE GARD IS FILLED OUT AND RETURNED TO US
WITHIN 10 DAYS FROM DATE OF PURCHASE.

5. THE PURCHASER RETURNS THE PRODUCT TO US FREIGHT
PREPAID IN THE EVENT SERVICE IS REQUIRED.

6. DEAD BATTERIES CAN LEAK DAMAGING FLUIDS HHEN ALLOWED
TO REMAIN IN UNITS. MORLEY CANNOT WARRANTY DEVICES
DAMAGED IN THIS MANNER. HE SUGGEST REMOVING BATTER-
IES IF EQUIPMENT IS TO BE STORED FOR LONG PERIODS.

ONCE THE ABOVE CONDITIONS ARE NET MORLEY HILL REPAIR OR
REPLACE THE PRODUCT WITHOUT CHARGE To THE PURCHASER FOR
THE ONE YEAR GUARANTEE PERIOD.

M 0 R L E V
A Division of TEL RAY Electronics Mfg. Co., Inc.

13062 SATICOV STREET
NO.HOLLYHOOD, CA 91605

SLIPLIIE VOLUE

SLVO

MORLEY

Page 2

CONGRATULATIONS

You now own one of the finest Volume pedals made. To in-
sure your satisfaction, please take a few moments to read
this booklet which will point up features of the product
that may be new to you. Above all, we hope you enjoy your
new "Morley" as much as we enjoyed building it for you.

GENERAL INFORMATION

This Morley pedal controls electrical signals with (LED)
light sources and electro-optical resistors which do not
wear or make mechanical or electrical noise. They last
for many, many years with no maintenance.

The power source for the pedal is either battery or My
line operated adapter, whichever is more convenient. The
Volune pedal uses one nine volt battery. This is
especially useful for traveling musicians who encounter
line noises, varying voltages and power conditions in
different parts of the world. The line adapter is avail-
able in 120 and 240 volt models and delivers power to the
Morley at 12 to 16 volts DC negative ground. Hhen the
adapter is plugged in. the batteries are automatically
disconnected.

Power is turned off with a switch or by removing the plug
frun the amlifier jack. This double precaution prevents
the battery from being inadvertently run down.

OPERATING INSTRUCTION§

1 - Connect the musical instrument to the Harley by
plugging one end of a shielded cable to the instrument
and the other to the jack labeled "instrument" on
the side of the Morley.

2 - Use another shielded cord between the Jack marked
"amplifer' on the side of the Morley and the input
of your music amplifier.

3 - Set the controls on your instrunent and your amplifier
to their usual settings.

USING THE VOLUME PEDfiL TRAVEL AND MINIMUM VOLUME CONTROLS

Set the travel control at the extrane caunter clockwise
position.

When the heel is all they way down the signal is turned
off. As the toe is gradually depressed, the signal
smoothly turns on and gets progressively louder. it
reaches full volume just as it approaches the limit of
its travel.

By placing the travel control in a more clockwise position,
the turn on will occur more quickly and approach full
volume sooner. with the travel control fully clockwise,
the completed turn on will occur in about 15 percent of
the total treadle motion.

This capability makes for a highly versatile pedal,
adaptable to many styles of play, music, and seating
position.

The minimum volume control allows the adjustment of the
signal level from zero to A desired level with the heel
of the pedal fully down. As the knob is rotated clock-
wise, the minimum signal at heel down position increases.
Some players find they prefer it set to just audibility,
Others want it set at some louder playing level so they
can come back to it easily. Whatever your preference.
it can be met with a simple adjustment.

SPECIA; mpg

We highly recomnend the use of alkaline type batteries.
Their much longer life makes than more economical than
other types. In addition, they are unlikely to leak
damaging chemicals.

Use of the adapter eliminates battery expense.
