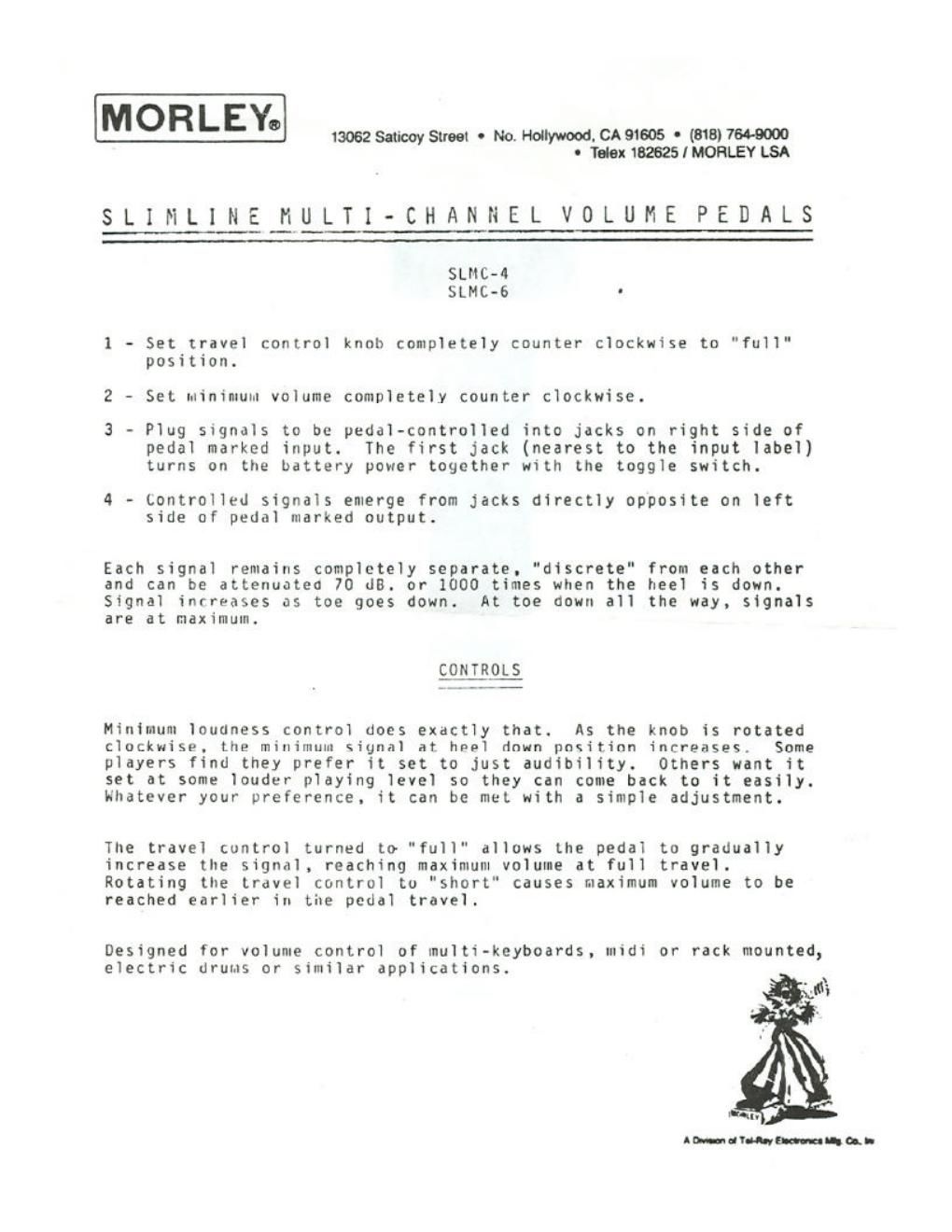

SLIMLINEjMLTI-CHANNEL VOLUl'iE PEDALS

SLMC-4
SLMC-6 '

1 - Set travel control knob completely counter clockwise to "full"
position.

2 - Set minimum volume completely counter clockwise.

3 - Plug signals to be pedal-controlled into jacks on right side of
pedal marked input. The first jack (nearest to the input label)
turns on the battery power together with the toggle switch.

4 - controlled signals emerge from jacks directly opposite on left
side of pedal marked output.

Each signal remains completely separate. discrete from each other
and can be attenuated 70 dB. or 1000 times when the heel is down.
Signal increases as toe goes down. At toe down all the way, signals
are at maximum.

CONTRjM

Minimum loudness control does exactly that. As the knob is rotated
clockwise. the minimum signal at heel down position increases, Some
players find they prefer it set to just audibility. Others want it
set at some louder playing level so they can come back to it easily.
Whatever your preference. it can be met with a simple adjustment.

The travel control turned to "full" allows the pedal to gradually
increase the signal. reaching maximum volume at full travel.
Rotating the travel control to "short causes maximum volume to be
reached earlier in the pedal travel.

Designed for volume control of multi-keyboards, midi or rack mounted,
electric drums or similar applications.
