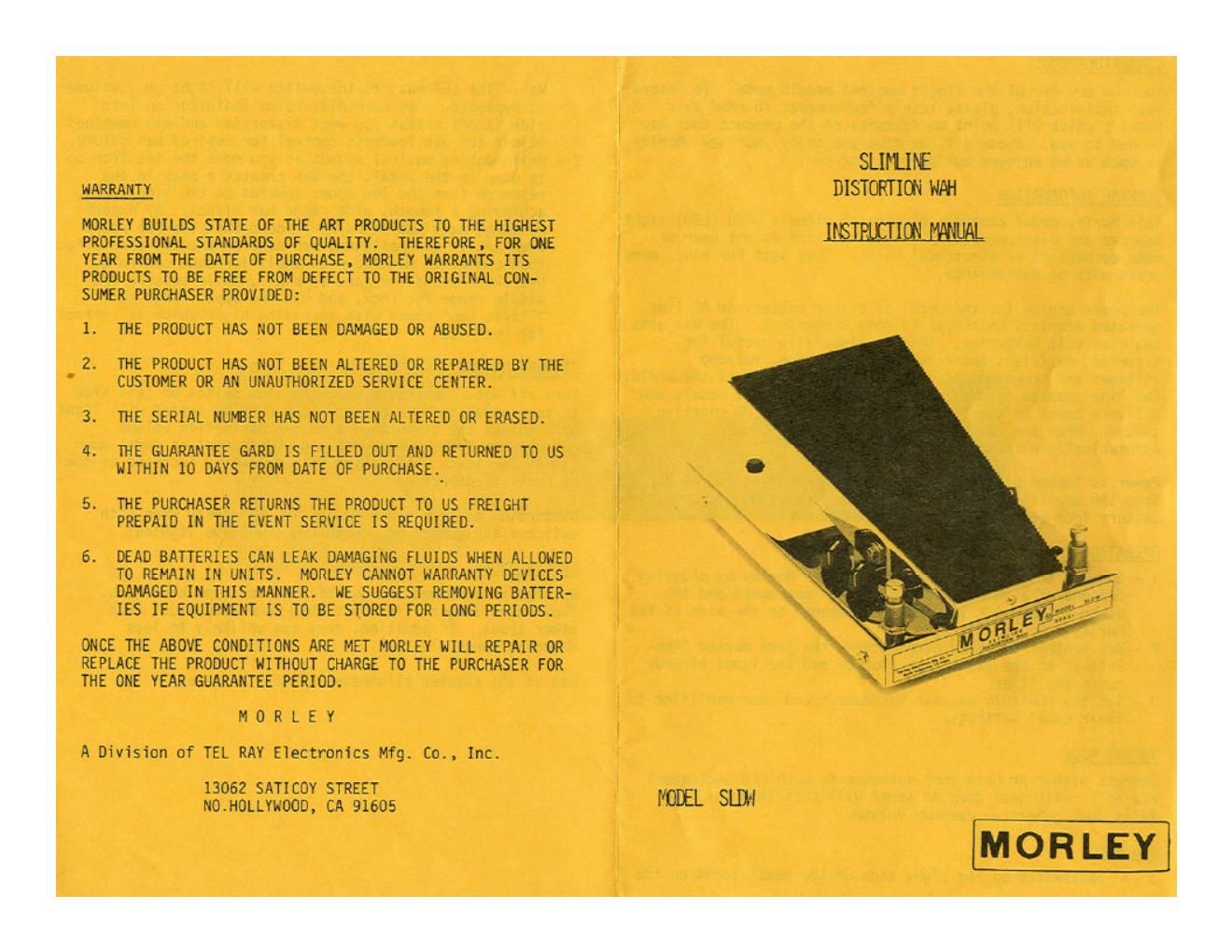

Page 1
WARRANTY
MORLEY BUILDS STATE OF THE ART PRODUCTS TO THE HIGHEST
PROFESSIONAL STANDARDS OF QUALITY. THEREFORE. FOR ONE
YEAR FROM THE DATE OF PURCHASE, MORLEY HARRANTS ITS
PRODUCTS TO BE FREE FROM DEFECT TO THE ORIGINAL CON-
SUMER PURCHASER PROVIDED:
THE PRODUCT HAS NOT BEEN DAMAGED OR ABUSED.
THE PRODUCT HAS NOT BEEN ALTERED OR REPAIRED BY THE
CUSTOMER 0R AN UNAUTHORIZED SERVICE CENTER.
THE SERIAL NUMBER HAS NOT BEEN ALTERED OR ERASED.
THE GUARANTEE GARD IS FILLED OUT AND RETURNED TO US
WITHIN 10 DAYS FROM DATE OF PURCHASEZ
THE PURCHASER RETURNS THE PRODUCT TO US FREIGHT
PREPAID IN THE EVENT SERVICE IS REQUIRED.
DEAD BATTERIES CAN LEAK DAMAGING FLUIDS HHEN ALLOWED
TO REMAIN IN UNITS. MORLEY CANNOT WARRANTY DEVICES
DAMAGED IN THIS MANNER. HE SUGGEST REMOVING BATTER-
IES IF EQUIPMENT IS TO BE STORED FOR LONG PERIODS.
ONCE THE ABOVE CONDITIONS ARE MET MORLEY HILL REPAIR OR
REPLACE THE PRODUCT HITHOUT CHARGE TO THE PURCHASER FOR
THE ONE YEAR GUARANTEE PERIOD.
M 0 R L E Y
A Division of TEL RAY Electronics Mfg. Co.. Inc.
13062 smcov STREET .
N0.HOLLYNO0D, CA 91605 IUIEL SLIM
SLIIUIE
DISTORTIOI RAH
W
Page 2
CONGRATULATIONS
You now own one of the finest musical pedals made.
your satisfaction. please take a few moments to read this
booklet which will point up features of the product that may
be new to you. Above all, we hope you enjoy your new Morley
as much as we enjoyed building it for you.
GENERAL INFORMATION
This Morley pedal controls electrical signals with (LED) light
sources and electro-optical resistors which do not wear or
make mechanical or electrical noise. They last for many, many
years with no maintenance.
The power source for the pedal is either battery or AC line
operated adapter, whichever is more convenient. The Nah uses
two nine volt batteries. This is especially useful for
traveling nusicians who encounter line noise, varying
voltages and power conditions in different parts of the world.
The line adapter.is available in 120 and 240 volt models and
delivers power to the Morley at 12-to 16 volts DC negative
ground. when the adapter is plugged in. the batteries are
automatically disconnected.
Power is turned off with a switch or by removing the plug
from the anplifier jack. This double precaution prevents the
battery from being inadvertently run.down.
OPERATING INSTRUCTIONS
1 - Connect the musical instrument to the Morley by plugging
one end of a shielded cable to the instrument and the
other to the jack labeled "Instrument" on the side of the
Morley.
2 - Use another shielded cord between the jack marked "Amn-
lifier" on the side of the Morley and the input of your
music amplifier.
3 - Set the controls on your instrument and your amplifier to
their usual settings.
VQLUME MODE
Depress either or both foot switches so both LED indicators
are off. Hith heel down no sound will pass through. Toe
fully down generates maximum volume.
MAM nope
I - A footswitch on the right side of the pedal turns on the
To insure 5
Nah. The LED next to the switch will light up. Volume
is bypassed. Be sure distortion indicator on left
side is off unless you want distortion and wah combined.
Adjust the web loudness control for desired wah volume.
While making musical sounds as you nave the toe from up
to down on the pedal, the Nah creates a peak in the
response from the low tones upwards to the high tones.
achieving a smooth, wide range Nah effect. By experi-
menting, many musicians have found that the Nah pedal
when set_in one position. can make an unusual tone effect
that cannot be matched with amplifier tone controls.
Use the low end for jazz or blues. while setting the
middle range for rock. and use the upper range for
"little amp" sound with screaming highs which is perfect
for rock lead.
DISTORTION MODE
Turn off Hah. Depress distortion foot switch on left side
to turn on distortion effect. LED next to switch will light
up. Adjust the distortion tone and distortion volume
controls on left side as desired. with heel of pedal down
signal is clean. Distortion will gradually increase as toe
of pedal is depressed. ~
Distortion and web can be used simultaneously when both
switches are turned on. Both LED's will be lighted.
§PECIAL NOTE
We highly reconnend the use of alkaline type batteries.
Their much longer life makes them more economical than
other types. In addition. they are unlikely to leak
damaging chemicals.
Use of the adapter eliminates battery expense.
