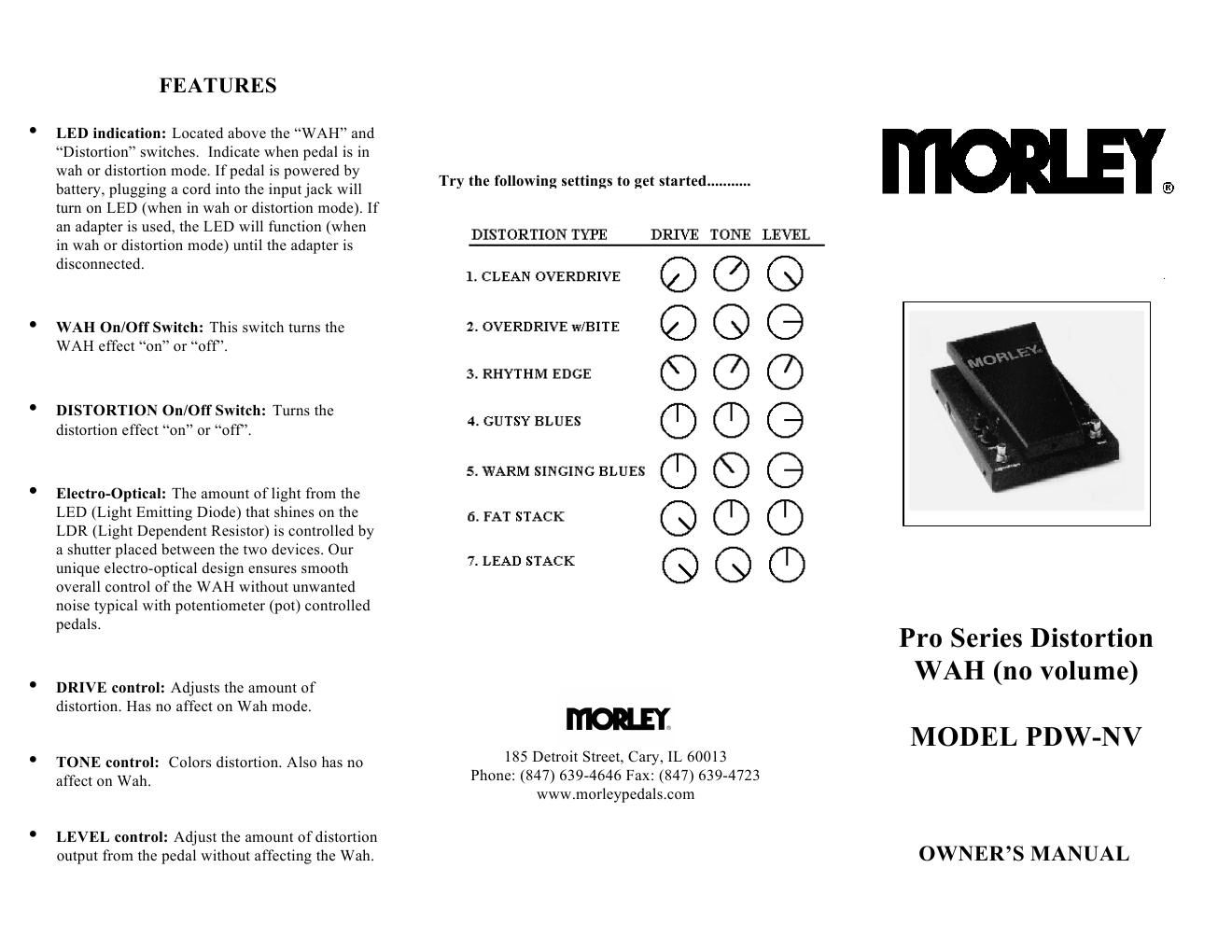

Morley pdw nv pro series distortion wah no volume

Page 1

THANK YOU! For purchasing a Morley® pedal. You now own the best Wah pedal made! Please take a few minutes to familiarize yourself with the features of your new pedal. With common sense handling, it should last for years. We know you will appreciate the rugged construction of your Morley®. Most of all, we hope you enjoy using it as much as we enjoyed building it. OPERATION WAH MODE: The Wah Mode is activated by pushing the Wah switch (a red LED, located above the WAH switch, will light when its on). With this new series, weve maintained the full, thick sound and wide bandwidth of previous Morley WAH pedals and added more reactive sound. Now you can make your guitar talk and sing similar to the sounds of Hendrix, Clapton and other greats of the 60s and early 70s. DISTORTION MODE: The Distortion is activated by pushing the Distortion switch (a red LED located above the switch will light when its on). Three controls - Drive, Tone and Level - allow you to dial in the right sound. While other tone controls cut out the highs, ours, with a 1.5K-Hz pivot point, varies the slope of the frequency responsive curve. Turning the tone control left from 12 oclock (mid) position will boost the lows and reduce the highs; turning the control right from mid position boosts the highs and slightly reduces the lows. COMBINATIONS: You can use the PDW-NV for the following combinations of effects: - WAH only - Distortion only - Distortion with WAH CONNECTIONS 9V: Use Morleys 9 VDC 300 milliamp regulated adapter only. IN: Input jack. Plug instrument into this jack using 1/4 guitar cable. OUT: Connect amplifier to this jack using a 1/4 guitar cable. NOTE: Youll find cords fit very tightly into our input and output jacks. The tight fit helps prevent the cord from becoming accidentally unplugged from the pedal. Make sure the cords are completely plugged in for best results. AC ADAPTER Use Morleys 9VDC 300 milliamp regulated adapter only. Using a non-regulated adapter could cause a low frequency hum in your amplifier and may damage the pedal. BATTERY The PDW-NV is designed to use one 9 volt battery when not using an adapter. We suggest you use a good quality alkaline battery. To prolong battery life, unplug your cord completely from the input jack when not using the pedal. When the pedal is not used for extended periods, we recommend you remove the battery from the pedal or replace it every six months to prevent leakage problems. BATTERY REPLACEMENT When the battery becomes weak, the overall wah and distortion effects will become weak. Remove the battery door located on the bottom of the pedal (a short cord is attached to the door to help prevent loss). Once the door is off, the old battery can be removed from the battery snap and a new battery plugged in. Make sure the polarity (+/-) is correct before inserting the new battery. When you replace the battery door , you will notice it fits very tightly against the battery. This prevents the battery from rattling inside the pedal. WARRANTY All Morley® pedals are warranted for two years from date of purchase. To obtain warranty service contact the store where purchased, or call 1-800-639-4668. NOTES: 1. Using the PDW-NV distortion mode at maximum setting when your amp is in distortion or high gain may cause uncontrolled feedback or a high pitched squeal.. 2. If the TONE control is set to full when using both the Wah and distortion modes, the overall sound will be particularly bright and brittle. SPECIFICATIONS POWER: 9 Volt Battery or Morleys 9VDC 300 milliamp regulated adapter (center pin is negative) CURRENT DRAW: 15 mA @ 9 VDC WEIGHT: 3.1 lb./ 1.36 kg INDICATOR: Wah mode; Wah LED on Distortion mode; Distortion LED on Bypass; Both LEDs off Here is a general recommendation for hooking up a WAH with other effects: - - NOTE: This pedal is not intended for use through an effects loop (send and return).
