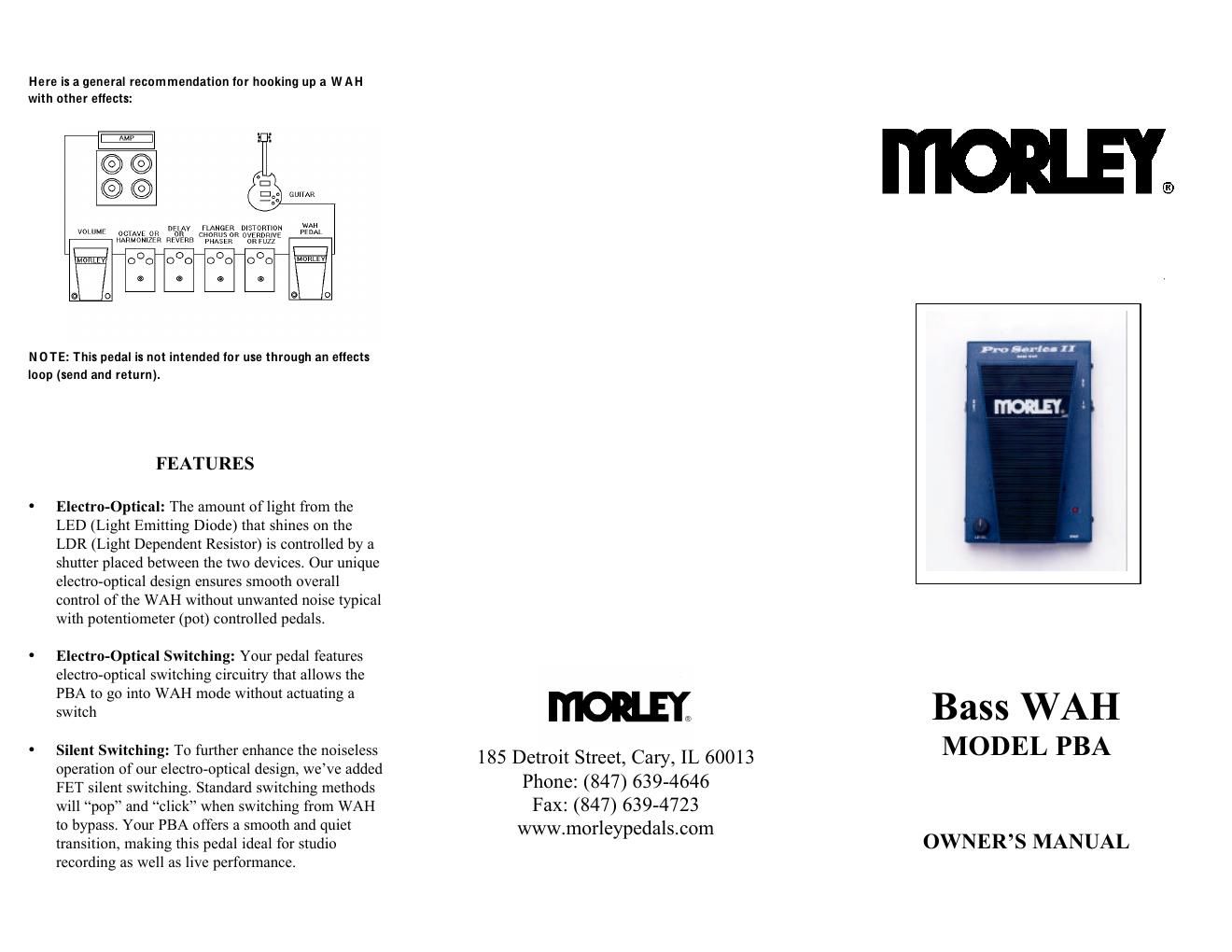

morley pba bass wah

Extracted text from morley pba bass wah (Ocr-read)


Page 1

THANK YOU! For purchasing a Morley® pedal. You now own the best Bass Wah pedal made! Please take a few minutes to familiarize yourself with the features of your new pedal. With common sense handling, it should last for years. We know you will appreciate t he rugged construction of your Morley®. Most of all, we hope you enjoy using it as much as we enjoyed building it. AC ADAPTER Use only Morleys 9 -volt 300 milliamp regulated adapters. Using a non -regulated adapter could cause a low frequency hum in your amplifier and may damage the pedal. BATTERY The Bass Wah is designed to use one 9 volt battery when not using an adapter. We suggest you use a good quality alkaline battery. To prolong battery life, unplug your cord completely from the input jack when n ot using the pedal. When the pedal is not used for extended periods, we recommend you remove the battery from the pedal or replace it every six month to prevent leakage problems. CONNECTIONS 9V: Connect Morleys 9 volt 300 milliamp regulated AC ada pter to this jack. IN: Input jack. Plug instrument into this jack using 1/4 guitar cable. OUT: Connect amplifier to this jack using a 1/4 guitar cable. NOTE: Youll find cords fit very tightly into our input and output jacks. The tight fit helps preven t the cord from becoming accidentally unplugged from the pedal. Make sure the cords are completely plugged in for best results. CONTROLS WAH LEVEL CONTROL: Dial in exactly the amount of WAH you need. Setting this control at 10 oclock position is great f or subtle wah changes and enhancements to your tone. Set the control at the 12 oclock (mid) position for standard wah tones. For full on WAH funk fest, turn the level control full up. BATTERY REPLACEMENT When the battery becomes weak, the overall w ah will become weak and your signal may become slightly distorted. Remove the battery door located on the bottom of the pedal (a short cord is attached to the door to help prevent loss) Once the door is off, the old battery can be removed from the batt ery snap and a new battery plugged in. Make sure the polarity (+/ -) is correct before inserting the new battery. When you replace the battery door , you will notice it fits very tightly against the battery. This prevents the battery from rattling inside th e pedal. WARRANTY All Morley® pedals are warranted for two years from date of purchase. To obtain warranty service contact the store where purchased, or call 1 -800 -284 -5172. SPECIFICATIONS POWER: 9 Volt Battery CURRENT DRAW: 12 mA @ 9 VDC WEIGHT: 3.2 lb./ 1.46 kg INDICATOR: Wah mode LED on Bypass mode LED off
