Morley morley 2014 catalog

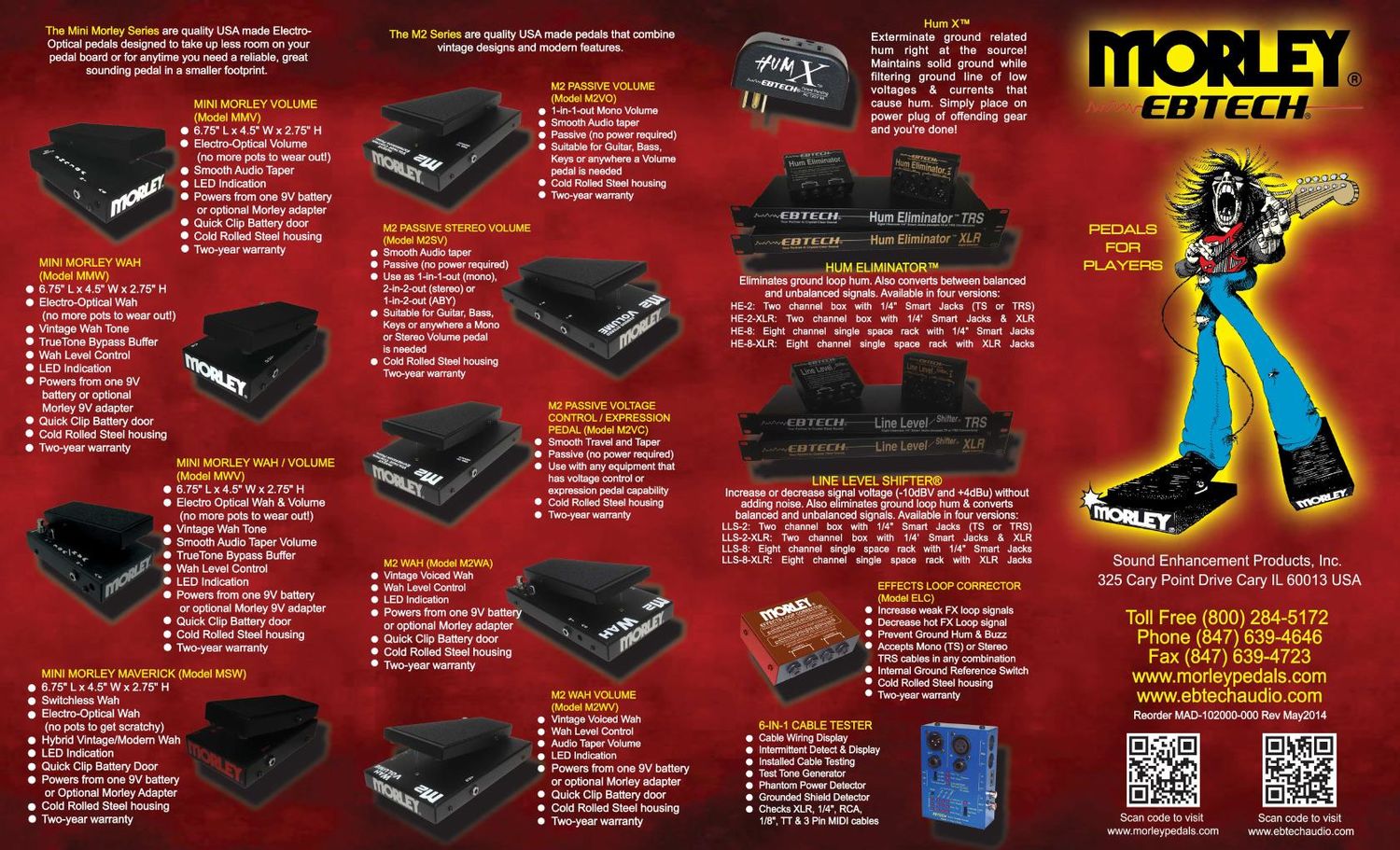

Page 1

The Mini Morley Series are quality USA made Electro-
Optical pedals designed to take up less room on your
pedal board or for anytime you need a reliable, great

sounding pedal in a smaller footprint.

MINI MORLEY VOLUME
(Model MMV)
O 6.75" L x 4.5" W x 2.75" H
O Electro-Optical Volume
~.. . (no more pots to wear outl)
°r 0 Smooth Audio Taper

" . 0 LED Indication
3 0 Powers from one 9V battery
or optional Morley adapter

0 Quick Clip Battery door
0 Cold Rolled Steel housing
0 Two-year warranty
MINI MORLEY WAH
(Model MMW)
I 6.75" L x 4.5" W x 2.75" H
0 Electro-Optical Wah
(no more pots to wear out!)
0 Vintage Wah Tone
0 TmeTone Bypass Buffer _e
0 Wah Level Control
0 LED Indication
0 Powers from one 9V
battery or optional
Morley 9V adapter
0 Quick Clip Battery door
0 Cold Rolled Steel housing
0 Two-year warranty
MINI MORLEY WAH / VOLUME
(Model MWV)
O 6.75" Lx 4.5" W x 2.75" H
0 Electro Optical Wah 8i Volume
. (no more pots to wear out!)
o I' i O \fintage Wah Tone
' ~ 0 Smooth Audio Taper Volume

:r O TmeTone Bypass Buffer
r O Wah Level Control
3 0 LED Indication

0 Powers from one 9V battery
or optional Morley 9V adapter

C Quick Clip Battery door

0 Cold Rolled Steel housing

0 Two-year warranty

MINI MORLEY MAVERICK (Model MSW)
O 6.75" L x 4.5" W x 2.75" H
. Switchless Wah
. Electra-Optical Wah
(no pots to get scratchy)
. Hybrid \fintagelModem Wah
0 LED Indication
0 Quick Clip Battery Door
0 Powers from one 9V battery
or Optional Morley Adapter
0 Cold Rolled Steel housing
I Two-year warranty

The M2 Series are quality USA made pedals that combine
vintage designs and modern features.

M2 PASSIVE VOLUME
(Model M2V0)

O 1-in-1-out Mono Volume

0 Smooth Audio taper

0 Passive (no power required)

$3", ~ w 0 Suitable for Guitar, Bass,
% 0 Keys or anywhere a Volume
pedal is needed

0 Cold Rolled Steel housing
0 Two-year wananty

M2 PASSIVE STEREO VOLUME
(Model MZSV)

0 Smooth Audio taper

0 Passive (no power required)

0 Use as 1-in-1-olit (mono),
2-in-2-out (stereo) or

1-in-2-out (ABY) .. 4s»
0 Suitable for Guitar, Bass, 3 _. '
Keys or anywhere a Mono $497
or Stereo Volume pedal
is needed
0 Cold Rolled Steel housing
Two-year warranty
M2 PASSIVE VOLTAGE
CONTROL / EXPRESSION
PEDAL (Model MZVC)
0 Smooth Travel and Taper
% . a 0 Passive (no power required)

0 Use with any equipment that
has voltage control or
expression pedal capability

0 Cold Rolled Steel housing

0 Two-year warranty

Q

"he?

M2 WAH (Model MZWA)

0 Vintage Voiced Wah I
O Wah Level Control 1 (-
0 LED Indication
I Powers from one 9V battery . ' 4,9
or optional Morley adapter § v- .5 '
0 Quick Clip Battery door 3
0 Cold Rolled Steel housing
9 Two-year warranty
M2 WAH VOLUME
(Model Mzwv)
0 Vintage Voiced Wah
O Wah Level Control
0 Audio Taper Volume
. LED Indication
, _ I Powers from one 9V battery
4 " or optional Morley adapter
% 0 a Quick Clip Battery door
0 Cold Rolled Steel housing
0 Two-year warranty

Hum XI

Exterminate ground related
hum right at the source!
Maintains solid ground while

I filtering ground line of low

7%me voltages & currents that
I,IM cause hum. Simply place on
power plug of offending gear
and you're done!

'Qu'm Ellmmatol

wwearggflgmmglimmatar 37:55

Margy-Ii H-Ium Eliminator XLR

HUM ELIMINATORT"
Eliminates ground loop hum. Also converts between balanced
and unbalanced signals. Available in four versions:
HE-2: Two channel box with 1/4' Smart Jacks (TS or TRS)
HE-Z-XLR: Two channel box with 1/4 Smart Jacks & XLR
HE-B: Eight channel single space rack with 1/4" Smart Jacks
HE-8-XLR: Eight channel single space rack with XLR Jacks

. flames Line Level

LII'I»

LINE LEVEL SHIFTER®
Increase or decrease si nal voltage (-1DdBV and +4dBu) without
adding noise. Also a iminates ground loop hum & converts
balanced and unbalanced signals. Available in four versions:
LLS-Z: Two channel box with 1/4" Smart Jacks (TS or TRS)
LLS-Z-XLR: Two channel box with 1/4' Smart Jacks 8i XLR
LLS-8: Eight channel single space rack with 1/4" Smart Jacks
LLS-B-XLR: Eight channel single space rack with XLR Jacks

EFFECTS LOOP CORRECTOR
(Model ELC)

0 Increase weak FX loop signals

0 Decrease hot FX Loop signal

0 Prevent Ground Hum & Buzz

0 Aocepk Mono (TS) or Stereo
TRS cables in any combination

. Internal Ground Reference Switch

' Cold Rolled Steel housing

. Two-year warranty

6-IN-1 CABLE TESTER
Cable Wiring Display
Intermittent Detect 8. Display
Installed Cable Testing

Test Tone Generator
Phantom Power Detector
Grounded Shield Detector
Checks XLR, 1/4, RCA,
1/8", 'I'l' & 3 Pin MIDI cables

' t
I
If

7']

vii?

Sound Enhancement Products, Inc.
325 Cary Point Drive Cary IL 60013 USA

Toll Free (800) 284-5172
Phone (847) 639-4646
Fax (847) 639-4723
www.morleypedals.com
www.ebtechaudio.com
Reorder MAD-102000000 Rev May2014

Scan code to visit
www.ebtechaudio.com

Scan code to visit
www.morleypedalsoom

Page 2

GEORGE LYNCH DRAGON 2 WAH
(Model GLW2)
0 Switchless E. Electra-Optical
0 THREE foot-selectable Wah modes;
° Traditional Wah. WOW and Wah Lock
. . Control Wah Level in any Wah mode
. Wah Lock lets you use pedal as tone
filter. NOTCH dials in Wah "position'
1 __ TrueTone Bypass bulfsr circuit
LED indication. Quick Clip battery
L door and two-year warranty.
For GUITAR, BASS or KEYSI

STEVE VAI BAD HORSIE WAH
(Model VAI-1)
O Switchless and ElectroOptloal
Wah set to Steve Val's
precise specifications
. TrueTone Bypass butter circuit a
0 LED indication, Quick Clip battery
door and two»year warranty.
' For GUITAR. BASS or KEYS!

STEVE VAI BAD HORSIE 2
CONTOUR WAH (Model VAI~2)
O 2 toot-selectable Wah modes:
7] Bad Horsie & Contour Wah
l 0 In Contour mode. adjust the
Web frequency and level
0 Switchless & Electro-Optical
. TrueTone Bypass buffer circuit
' LED indication. Quick Clip
battery door and two-year
. wananty.
For GUITAR. BASS or KEYSI

MARK TREMONTI WAH
(Model MARK 1)
9 Switcnless & EIectro-Optical
0 zone of Wah Boost , ,
I TrueTone Bypass butler circuit MY ,
. LED indication. Quick Clip
battery door and two-year

. warranty.
For GUITAR. BASS or KEYS!

POWER WAH (Model FWD)
0 Electro«0ptical circuitry
I . O Wntage Wah tone
0 TrueTone Bypass buffer circuit
. LED indication. Quick Clip
battery door and Mo-year
wananty.
. For GUITAR. BASS or KEYS!

CLASSIC WAH (Model CLW)

. Wah tone at Morley pedals
of 70's & 60's

. LED indication. Quick Clip n
battery door and two
year warranty.

. For GUITAR, BASS or KEYS! '

DUAL BASS WAH (Model PEA-2)
O Switchless & Electra-Optical
0 Two Wah modes; Traditional
Wah and Funk Wah
. Control Wah level in either mode
. TrueTone Bypass buffer circuit
' LED indication. Quick Clip battery
door and owner warranty
. For GUITAR. BASS or KEYS!

3M:

PRO SERIES ll DISTORTION
WAH VOLUME (Model PDW-II)
O Wah. Volume and Distortion in one pedal
' Wah and Volume are EIectro-Optical
. High Q Wah Tone (More low/high)
' Classic analog distortion with
Drive. Level 8. Tone control
' Use any afiect individually or
use dist w/ Wah or dist w/volume
TrueTone Bypass buffer circuit
LED indication. Quick Cllp battery
door and two-year warranty.
For GUITAR. BASS or KEYSI

POWER WAH VOLUME (Model PWOV)
O EIectro-Optiml Wait 8: Volume

' ' Intage Wah tone
0 Smooth Audio taper
. TmeTona Bypass buffer circuit
LED indication. Quick Clip

battery door and two

year warranty.

For GUITAR, BASS or KEVSI

STEVE VAI LITTLE ALLIGATOR
VOLUME (Model FLA)
' Electra-Optical olrcultry
C Smooth linear taper
' Designed for use in efiects loop
or In front amp input
' Minimum Volume for balancing
between rhythm/lead volumes 9
LED indication, Quick Clip
battery door and two-year
warranty.
For GUITAR, BASS or KEYS!

VOLUME PLUS
(Model PVO+)
« O Eledro-Optical Circuitry
" 0 Smooth Audio taper
Switchable Mlnlmum Volume
. Minimum Volume for Rhythm
4' 8 Lead Volume control
0 LED indication. Quick Clip
battery door and two-year
warlanty.
For GUITAR, BASS or KEYS]

OPTICAL VOLUME (Model EOV)

Professional Grade Volume

pedal at affordable price

Elem-Optical circuitry v ~

Studio-Quiet Audio taper b ,7
LED indication, Quick Clip 322%, a
battery door and two-year m
warranty '
For GUITAR. BASS or KEYSI

ABY MIX (Model ABY Mix)
0 Route 2 guitars to 2 amps
0 Select] combine amps
0 Independent input level
controls for the perfect mix
(Up to ZOdB otclean boost)
° Active. Eufler Circuit
0 LED Indication
. Powers from 9V battery
. or Money 9V Adapter
Cold Rolled Steel housing
with Quick Clip battery door
0
Two-year warranty

TWIN MIX (Model Twin Mix)
0 Route 2 guilars to 2 amps
0 Input Mute Switches
0 Use only OutputAto
combine Inputs. Use both
A El B Outputs to split inputs
. Independent input level
controls for the perfect mix
(Up to 20:13 of Clean boost)
Active. Butler Circuit
LED Indlcatlon
Powers from 9V battery or adapter
Cold Rolled Steel housing with
. Quick Clip battery door
Two-year wananty

BUFFER BOOST (Model MBB)
- 0 Our "Two-Tone buffer circuit
maintains level at tone
0 Handy ZOdB boost
. Power 8r Boost LEDs
. Cold Rolled Steel housing
with Quick Clip battery door
0 Powers from 9V battery or
optional Morley 9V adapter
Two

DISTORTION BOOST
(Model MDB)

0 Analog Overdrive Distortion

. Great as stand alone distortion
or to enhance ampe distortion

0 Foot Selectable zoop aoosl

. TrueTone Bypass butter circuit
LED indication. Quick Clip
battery door and two-year
warranty.

. For GUITAR. BASS or KEYS!

ACCU-TUNER (Model AC-I)
0 Combo strobe & Chromatic
in Stomp Box Format
0 True Bypass
. Choose Note & Calibration
. Large easy to read LEDs
Dual Outputs (mule 8i through)
. Durable die cast housing
' Powers from 9V battery or
optional Morley 9V adapter
Two-year warranty

GAS STATION (Modal GS-t)

O 9 Volt Regulated Multi power supply

C Power up to eight FX pedals. up to
250 mA per outtet

. Center Polarity negative

0 Each outlet has fault LED to show
short or overload - remaining outlets
continue to work!

. Induces main power adapter and
eight 2 It connector cables
Compatible with most other FX brands

ABY (Model ABY)

0 Route one signal to two outputs
or two inputs to one output.

0 Choose A. B orA 8x a combined.

U LEDs show which signal is active

' Passive 5i True Bypass

Cold Rolled Steel housing and
Quick Clip battery door

' Power from 9V battery or adapter
Two-year warranty

ABC (Model ABC)
0 Route 1 guitar to 3 amplifiers.
Select/combine amps as needed.
0 Route 3 guitars to 1 amplifier.
Select guilars with footswitcnes.
' LEDs show which signal is active
' Passive and True Bypass
Powers from 9V battery (for LEDs)
or optional Morley 9V Adapter
Gold Rolled Steel Housing and
Quick Clip battery door
Two-year wananty

GEORGE LYNCH TRIPLER
41» (Model Tripler)
Route 1 guitar to 3 amps
Select/combine as needed
LED Indication
Up to ZOdB of clean boost
Powers from 9V battery
or Morley 9V Adapter
Cold Rolled Steel housing
and Quick Clip battery door
Two-year warranty

QUAD BOX (Model QUAD)
I Route 2 guitars to 2 amps
U Select between either guitar
' Use any combination of
both amplifiers
' LED's show you which guitars
and ampe are on/otf
Powers from 9V battery (for
LEDs) or Morley 9V Adapter
Passive and True Bypass
Cold Rolled Steel housing and
Quick Clip battery door
Two-year wananty

t ADAPTER (Model Money 9v)
/ , O 9 Volt 300 mARegulated power supply
/ in US and European Versions
/» . Center Polarity negative
Handy LED shows adapter is working
\ ' Morley pedals require the use of Morley
adapter. Using other brand adapters
/ , may cause your Morley to hum.
. Compatible with most other FX brands
