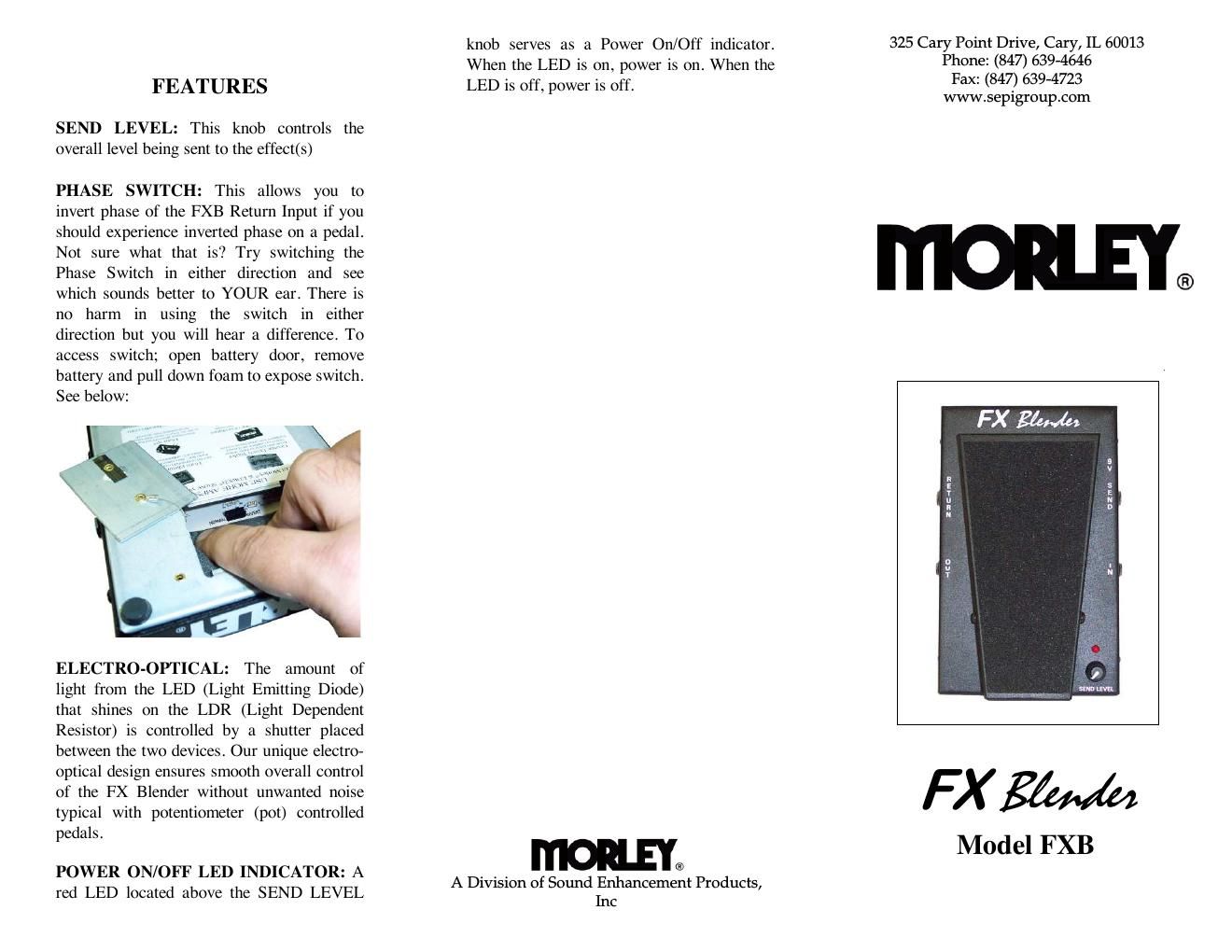

THANK YOU! For purchasing a Morley® pedal. You now own one of the best pedals made! Please take a few minutes to familiarize yourself with the features of your new pedal. With common sense handling, it will last for years. We know you will appreciate the rugged construction of your Morley®. Most of all, we hope you enjoy using it as much as we enjoyed building it. OPERATION The FX Blender is designed to blend an effected signal with your bypassed guitar signal. Rather than simply turning on/off an effect, you can blend in any mix of that effect. CONNECTIONS 9V: Use Morleys 9 VDC 300 milliamp regulated adapter only. IN: Input jack. Plug instrument into this jack using standard 1/4 guitar cable. OUT: Connect amplifier to this jack using a standard 1/4 guitar cable. SEND: Connect this jack to the INPUT of an effect pedal using standard 1/4 guitar cable. Plugging a cable into the SEND jack also turns on the pedals when using battery power. OUT: Connect this jack to the OUTPUT of the same effect pedal using a standard 1/4 guitar cable. NOTE: Youll find cords fit very tightly into the FX Blender jacks. The tight fit helps prevent the cord from becoming accidentally unplugged from the pedal. Make sure the cords are completely plugged in for best results. CONNECTIONS (continued) Below are a few examples of hooking up the FX Blender with one or more effects: Set Up #1 - Using a single effect unit This set up would allow user to blend a dry guita r signal (toe-up or no echo) to a wet guitar signal (toe-down or full echo) or any level in-between. Set Up #2 – Using 2 (or more) effect units This set up would allow user to blend in echo or di stortion with the dry guitar signal individually or together. Since the e ffects can be turned on or off with their own footswitch, this allows even more flexibility than simply switching the effects on or off. AC ADAPTER Use Morleys 9VDC 300 milliamp regulated adapter only. Using a non-regulated adapter could cause a low frequency hum in your amplifier and may damage the pedal. BATTERY The FXB is designed to use one 9 Volt battery when not using an adapter. We suggest you use a good quality alkaline battery. To prolong battery life, unplug your cord completely from the SEND jack when not using the pedal. When the pedal is not used for extended periods, we recommend you remove the battery from the pedal to prevent leakage problems. BATTERY REPLACEMENT When the battery becomes weak, the overall signal of the instrument may become weak and your signal may become slightly distorted. Remove the battery door located on the bottom of the pedal (a short cord is attached to the door to help prevent loss). Once the door is off, the old battery c an be removed from the battery snap and a new battery plugged in. Make sure that the polarity (+/-) is correct before inserting the new battery. When you replace the battery door, you will notice it fits very tightly against the battery. This prevents t he battery from rattling inside the pedal. WARRANTY All Morley® pedals are warranted for 2 years from date of purchase. To obtain warranty service contact the store where purchased or call 1-800- 284-5172 ext 14. SPECIFICATIONS POWER: 9 Volt Battery or 9VDC 300 milliamp regulated adapter (center pin is negative) CURRENT DRAW: 10 mA @ 9 VDC WEIGHT: 3.3 lb./ 1.51 kg INDICATOR: LED On = Power On LED Off = Power Off
