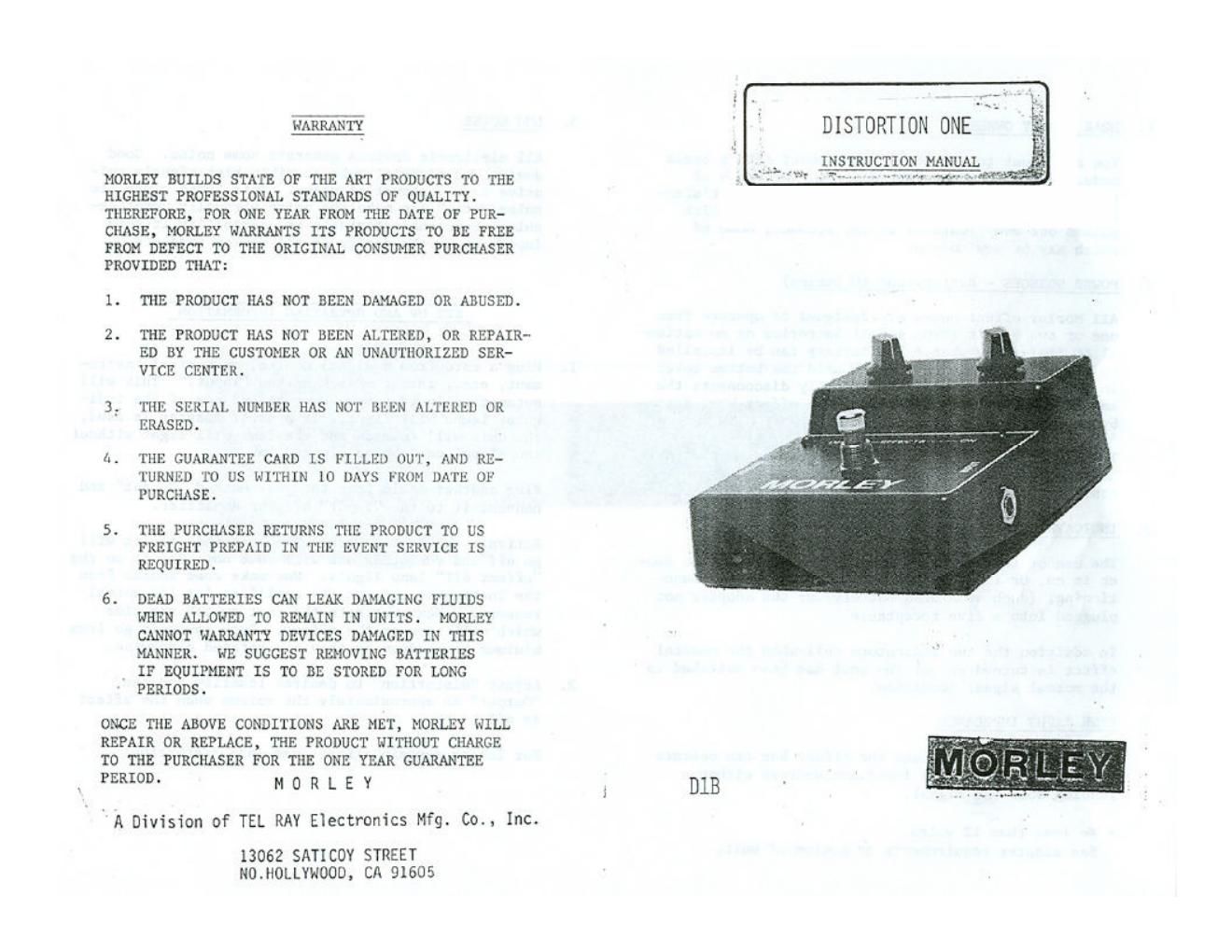

Page 1
AMT-Y; ' DISTORTIDN ONE.-
INSTRUCTION MANUAL
MORLEY BUILDS STATE OF THE ART PRODUCTS TO THE ~ m " "W" "W .
HIGHEST PROFESSIONAL STANDARDS OF QUALITY.
THEREFORE, FOR ONE YEAR FROM THE DATE OF PUR-
CHASE, MORLEY WARRANTS II's PRODUCTS T0 RE FREE
FROM DEFECT TO THE ORIGINAL CONSUMER PURCHASER
PROVIDED THAT:
1. THE PRODUCT HAS NOT BEEN DAMAGED OR ABUSED.
2. THE PRODUCT HAS NOT BEEN ALTERED, 0R REPAIR"
ED BY THE CUSTOMER OR AN UNAUTHORIZED SER-
VICE CENTER.
3: THE SERIAL NUMBER HAS NOT BEEN ALTEREU OR
ERASED.
4. THE GUARANTEE CARD IS FILLED OUT, AND RE-
TURNED TO US WITHIN 10 DAYS FROM DATE OF
PURCHASE.
5. THE PURCHASER RETURNS THE PRODUCT TO US
FREIGHT PREPAID IN THE EVENT SERVICE IS
REQUIRED.
6. DEAD BATTERIES CAN LEAK DAMACINC FLUIDS
WHEN ALLOWED TO REMAIN IN UNITS. MORLEY
CANNOT WARRANTY DEVICES DAMAGED IN THIS
MANNER. WE SUGGEST REMOVING BATTERIES
IF EQUIPMENT IS TO BE STORED FOR LONG
PERIODS.
ONCE THE ABOVE CONDITIONS ARE NET, MORLEY WILL
REPAIR OR REPLACE, THE PRODUCT WITHOUT CHARGE
TO THE PURCHASER FOR THE ONE YEAR GUARANTEE
PERIOD. M 0 R L E y BIB
' A Division of TEL RAY Electronics Mfg. Co., Inc.
13062 SATICOY STREET
N0.HOLLYNOOD. CA 91605
Page 2
1.
DEAR MORLEY OHNER: 5.
You are about to use one of the finest effect boxes
made. Morley products are designed for years of
trouble free operation. To insure maximum satisfac-
tion, please take time to read this booklet which
points out many features of the product, some of
which may be new to you.
POWER SOURCES - Batter and AC mains
All Morley effect boxes are designed to operate from
one or two 9 volt (NEDA 1604A) batteries or an option-
al AC (mains) adapter.* The battery can be installed
by removing the 4 screws which hold the bottom cover 1.
in place. The adapter automatically disconnects the
battery when it is plugged into the effect box, there-
by prolonging battery life.
The adapter is more economical to use than batteries,
however there are times when using the battery is more
convenient. Morley therefore provides both capabilites.
INDICATORS SLED} Lamps
The use of two indicator lamps tells you when the pow-
er is on, or if either or both sources are not func-
tioning; (such as a dead battery) or the adapter not
plugged into a live receptacle.
In addition the two indicators tell when the musical
effect is turned on, or the unit has been switched to
the normal signal condition. 2.
HIGH INPUT IMPEDANCE
This is important because the effect box can operate
from very weak or high impedance sources without
leading down th,'signal.
. * Noless than 12 volts.
See adapter requirements on bottom of unit.
LOH NOISE
All electronic devices generate some noise. Good
design and material make possible high signals rel-
ative to the amount of noise. This "high signal to
noise ratio can\make the noise virtually unnotice-
able. This characteristic and capability is very
important in the design of all Morley products."
SET UP AND OPERATING INFORMATION
Plug a cord from a signal source, or musical instru-
ment, etc., into the jack marked "Input." This will
automatically turn the power on and one of the indi-
cator lamps will light. If a power adapter is used,
the unit will turn on and the lamp will light without
the signal cord being plugged in.
Plug another cable from the jack marked "Output" and
connect it to the "Input" of your amplifier.
Activate the foot switch. The lamp that is lit will
go off and the other one will come on. Set it so the
"effect off" lamp lights. Now make some sounds from
the instrument and set the amplifier for its normal
response. Next activate the foot switch one time
which will turn on the effect. Both controls so from
minimum to maximum as they are rotated clockwise.
Adjust "Distortion" to desired tonality and the
"Output" to approximately the volume when the effect
is off.
For longer sustain effects use more distortion.
