® User Instructions Page I
For warranty service, tech support or customer service
1-800-284-51 72 ext IS or tech@morleypeclals.com

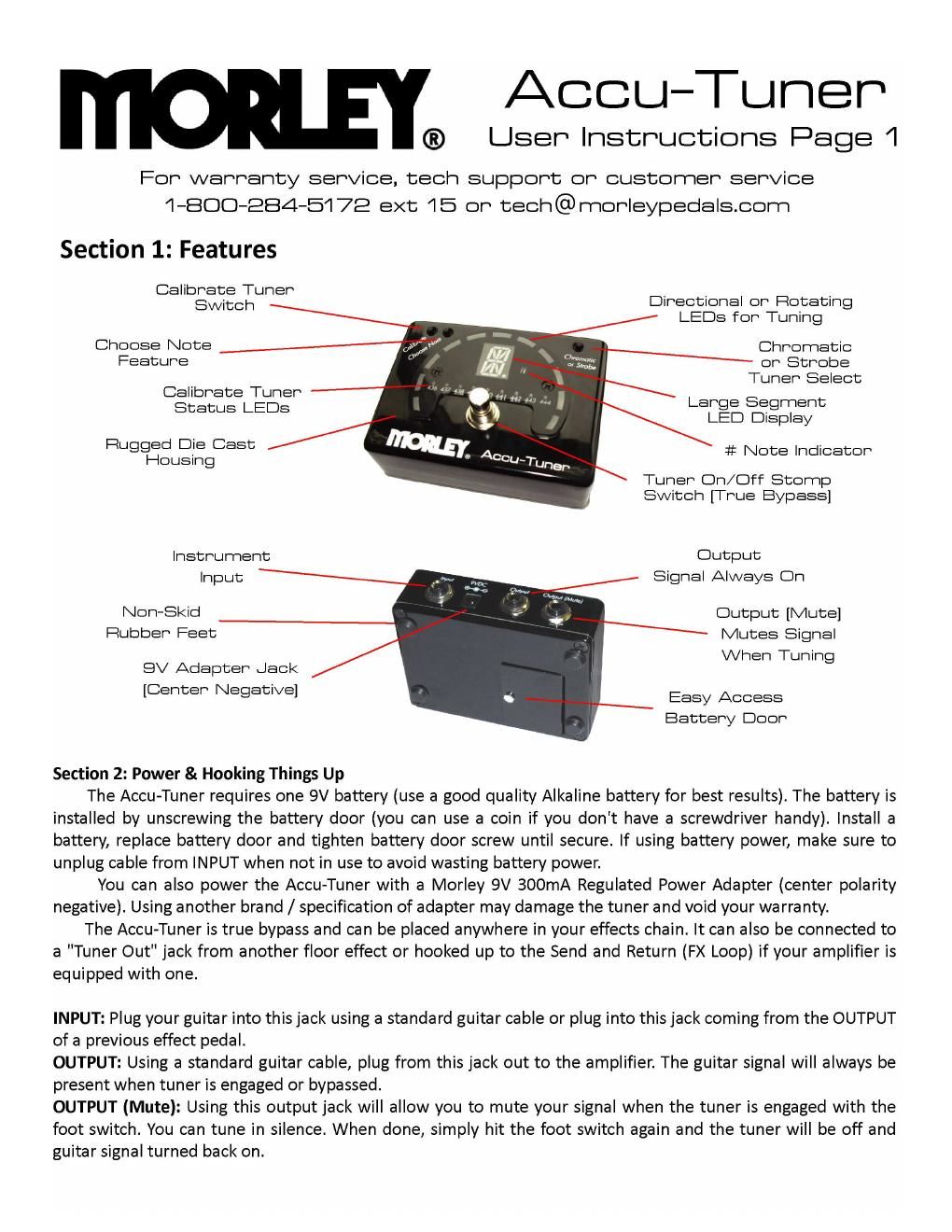

Section 1: Features

Calibrate Tuner

Switch Directional or Rotating

LEDs for Tuning

Choose Note
Feature

Chromatic
or Strobe
Tuner Select
Calibrate Tuner

Statug LEDs Large Segment

LED Display

Plugged Die C8513 # Note Indicator

Housing
Tuner Dn/fo Stomp
Switch [True Bypass]
Instrument Dutput
Input Signal Always On

Non-Skid
Rubber Feet

Output [Mute]
IVlutes Signal

When Tuning
SV Adapter Jack

[Center Negative] Easy Access

Battery Door

Section 2: Power & Hooking Things Up

The Accu-Tuner requires one 9V battery (use a good quality Alkaline battery for best results). The battery is
installed by unscrewing the battery door (you can use a coin if you don't have a screwdriver handy). Install a
battery, replace battery door and tighten battery door screw until secure. If using battery power, make sure to
unplug cable from INPUT when not in use to avoid wasting battery power.

You can also power the Accu-Tuner with a Morley 9V 300mA Regulated Power Adapter (center polarity

negative). Using another brand / specification of adapter may damage the tuner and void your warranty.

The Accu-Tuner is true bypass and can be placed anywhere in your effects chain. It can also be connected to
a "Tuner Out" jack from another floor effect or hooked up to the Send and Return (FX Loop) if your amplifier is
equipped with one.

INPUT: Plug your guitar into thisjack using a standard guitar cable or plug into this jack coming from the OUTPUT
of a previous effect pedal.

OUTPUT: Using a standard guitar cable, plug from this jack out to the amplifier. The guitar signal will always be
present when tuner is engaged or bypassed.

OUTPUT (Mute): Using this output jack will allow you to mute your signal when the tuner is engaged with the
foot switch. You can tune in silence. When done, simply hit the foot switch again and the tuner will be off and
guitar signal turned back on.

Page 2

Aoou-Tuner

® User Instructions Page 2

Section 3: Using the tuner

The Accu-Tuner has two tuning modes: Chromatic or Strobe. The Chromatic mode is quicker but tends to not be as
precise. The Strobe mode is very precise but takes longer to use as a result. The Chromatic or Strobe Selection switch is
located at the upper right hand corner of the tuner. The Accu-Tuner remembers the last mode it was in and stays there
until switched (even when unplugged and turned off).

CHROMATIC MODE TUNING: Simply pluck a string and let it ring; the Accu-Tuner automatically senses which string and
tells you what note it is and whether you are flat (LED lights on the left side of center), sharp (LED lights on right side of
center) or in tune (center LED lit). See diagram #1.

STROBE MODE TUNING: Again, pluck a string and let ring. In strobe mode, the LEDS rotate indicating flat (LEDs rotating
counter-clockwise), sharp (LEDs rotating clockwise) or in tune (LEDs stop rotating and stay still). See diagram #2.

ln tune
| when LEDa
n tune stop rotating
LED to left LED to right LEDS LEDe
means 51$an means string rotating rotating
IS flat is sharp counter- clockwise
clocKWIee means
$95
is flat ls sharp
Diagram #1 Dia ram #2
Chromatic Mode Tuning Strobe ?\/lode Tuning

Section 4: Special Features
The Accu-Tuner is equipped with two special features that will come in handy for detuning or open tunings or when
you need to tune with another instrument (like an old piano that is slightly out of tune).

CHOOSE NOTE: This features allows you to select the note you would like to tune to. Each time you press the Choose Note
button, the note selection goes up a half step starting at A. (A, A#, B, C, C#, D, D#. E, F, F# & G). Lets say you wanted to
detune your low E to Eb (same as D#), you simply engage the tuner and press the Choose Note button 8 times). The
readout shows D#, the readout will blink three time and now you can tune your string to this note. Holding the CHOOSE
NOTE button for 3 seconds will read 0 and reset the tuner to standard tuning mode. See diagram #3.

IMPORTANT: When tuning guitar to an open tuning, you must repeat the above procedure for each string.

CALIBRATE: This feature allows you to calibrate the Accu-Tuner sharp or flat. This can be useful when tuning to an
instrument that is slightly out of tune. readings higher than 440 are slightly sharp and readings lower than 440 are slightly
flat. See diagram #4.

RETURNING TO STANDARD TUNING MODE: When using either CHOOSE NOTE or CALIBRATE modes, to RESET to standard
default tuning you can either:

1) Press footswitch twice to turn tuner off and on again or

2) Press and hold CHOOSE NOTE button for 3 seconds.

Press

# indicator Calibrate LED shows

Chose ' button calibration
D# Note to advance setting
[same as Eb] tuning
by pressing callbratro
Calibrate
Button

Diagram #3 Diagram #4
Choose Note Calibrate
