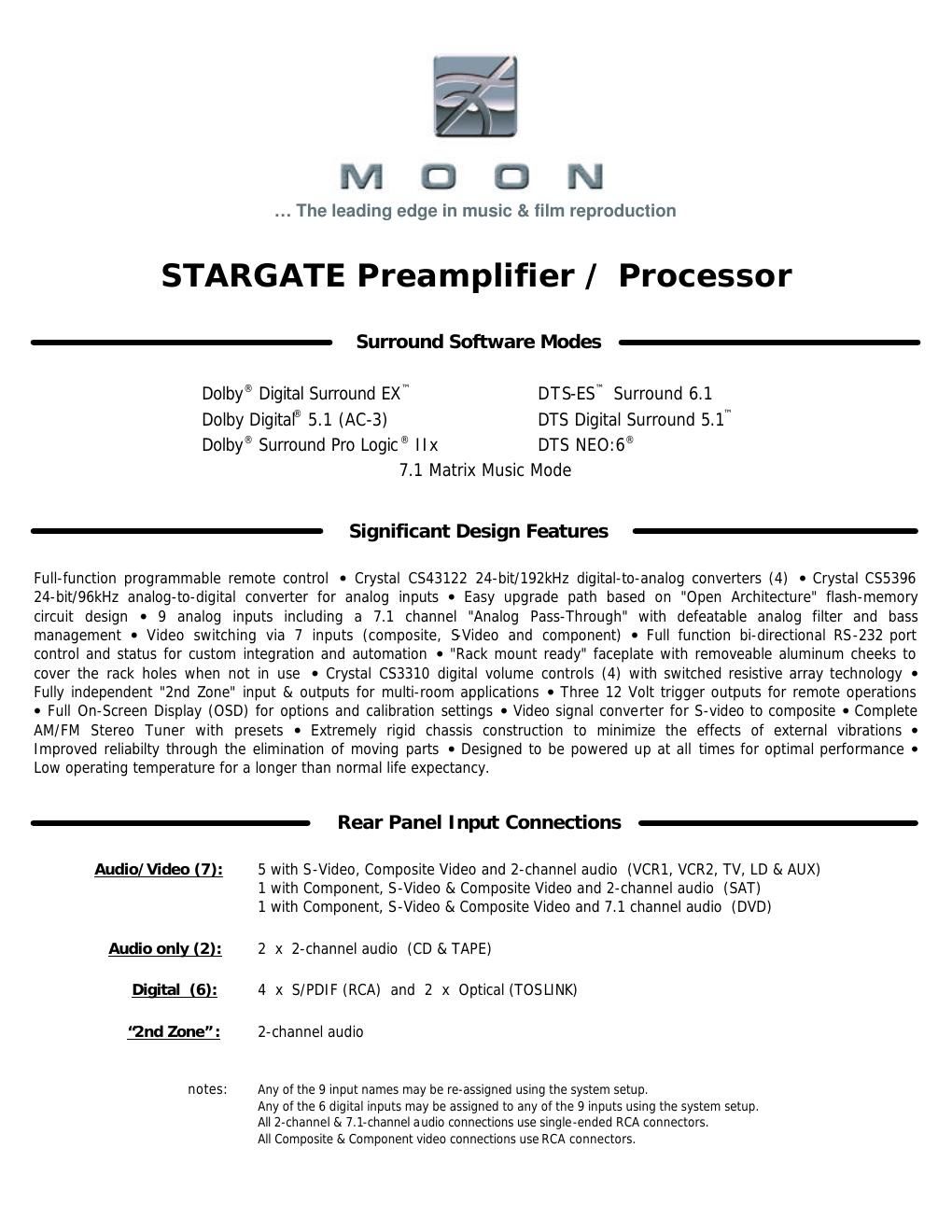

Moon stargate brochure

Page 1

Rear Panel Output Connections Main Out: 7.1 channel audio (center, LFE, front L+R, surround L+R, rear L+R) 1 x Component Video, 1 x S-Video and 2 x Composite Video Record Out: 1 x 2-channel audio, 1 x Optical Digital audio (TOSLINK), 2 x S-Video, 1 x Composite Video. 2nd Zone: 2 x 2-channel audio (1 fixed output & 1 variable output) 12V Triggers: 3 (Main Zone, 2nd Zone & Amplifier) Specifications Analog input Digital input Analog CS5396 1 CS43122 2 pass-through Frequency response .................. 10hz-20kHz ±0.25dB ................ 10hz-20kHz ±0.035dB ............... 2Hz-96kHz ±3.0dB Signal-to-noise ratio.................. 120dB ..................................... 120dB ..................................... 112dB Dynamic range ......................... 120dB ..................................... 120dB ..................................... 114dB THD+N @ 0dB .......................... < -105dB ................................ < -100dB ................................ < -112dB Crosstalk.................................. < -98dB .................................. < -104dB ................................ < -108dB Stop-band attenuation................ <-117dB ................................. < -102dB ................................ n/a Pass-band ripple........................ ±0.005dB................................. ±0.0008dB............................... n/a Phase linearity .......................... ±0.5° @20kHz ......................... ±0.3° @20kHz.......................... n/a High freq. jitter @ 20kHz ........... < 100 picoseconds rms ............ < 100 picoseconds rms ............ n/a Note 1: EIAJ, A-weighted, f S = 24-bit/96kHz in 128X oversampling mode Note 2: EIAJ, A-weighted, f S = 24-bit/96kHz Front Panel Display: VFD (Vacuum Fluorescent Display) Front Panel Controls: Stand by, Volume +, Volume -, Mute, Input -, Input +, Zone-2, Seek -, Seek +, AM/FM, Stereo, Surround (mode) Miscellaneous: Remote control ..................................... Full-function (Optional SRC-2000) Volume Adjustment .............................. 1.0dB increments Maximum overall gain ........................... 12dB Analog input impedance......................... 15k ohms Analog input sensitivity........................... 200mV – 3.0V Maximum analog output @ 0dBFS........... 3.5V @ 600 ohms Available faceplate finishes .................... Black and Silver Rack-mount size ................................... 3 spaces Power consumption @ idle..................... 24 watts Warranty ............................................. 5 years Shipping weight .................................... 24 lbs. Dimensions (w x h x d) ......................... 19" x 6-1/2" x 14" Preliminary specifications; subject to change without notice. Simaudio Ltd., 95 Chemin du Tremblay, Unit 3, Boucherville, Quebec, J4B 7K4 Canada Simaudio U.S.A., 21 Lawrence Paquette Industrial Park, Champlain, NY, 12919 U.S.A. Tel: 1-877-980-2400 www.simaudio.com Fax: 450-449-9947
