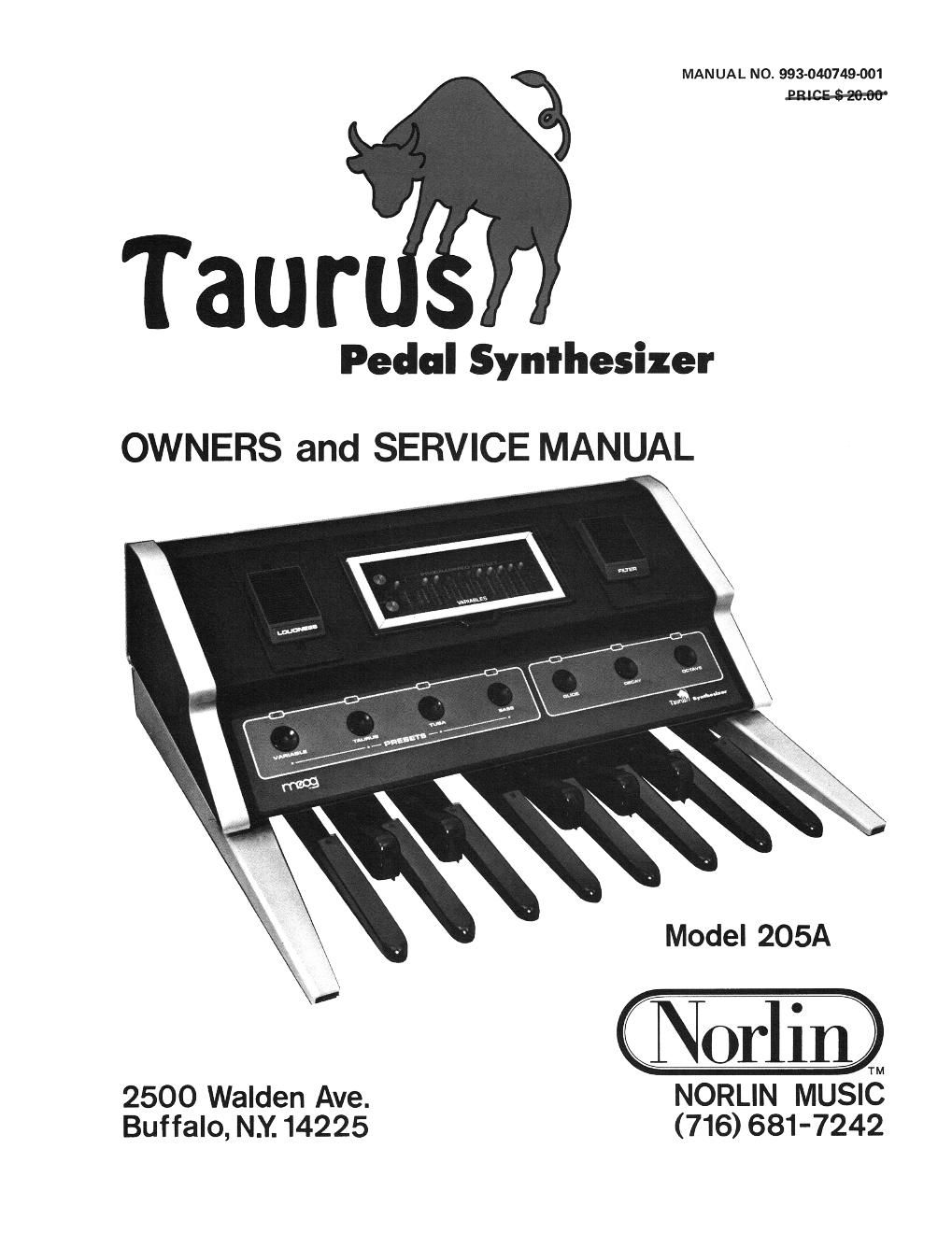

Page 1
3 MANUAL N0. 993-0110749001
W
Taur
Pedal Synthesizer
OWNERS and SERVICE MANUAL
Model 205A
Norlin m
2500 Walden Ave. NORLIN MUSIC
Buffalo, N.Y. 14225 (716) 681-7242
Page 2
contents
Introduction 1
Description ........... 1
Simplified block diagram 2
Specifications......................... 4
lnitialsetup.. ....... 5
Operating controls..................... 6
Operation............................. 8
Setting upvariablepreset 9
Maintenanceandservice 10
Technicalsection 11
THESE DRAWINGS AND SPECIFICATIONS ARE THE PROPERTY
OF MOOG MUSIC INC. AND SHALL NOT BE HEPRODUCED OH
COFIED IN WHOLE OFI IN PART AS THE BASIS FOR MANUFAC-
TURE OFI SALE OF THE ITEMS.
