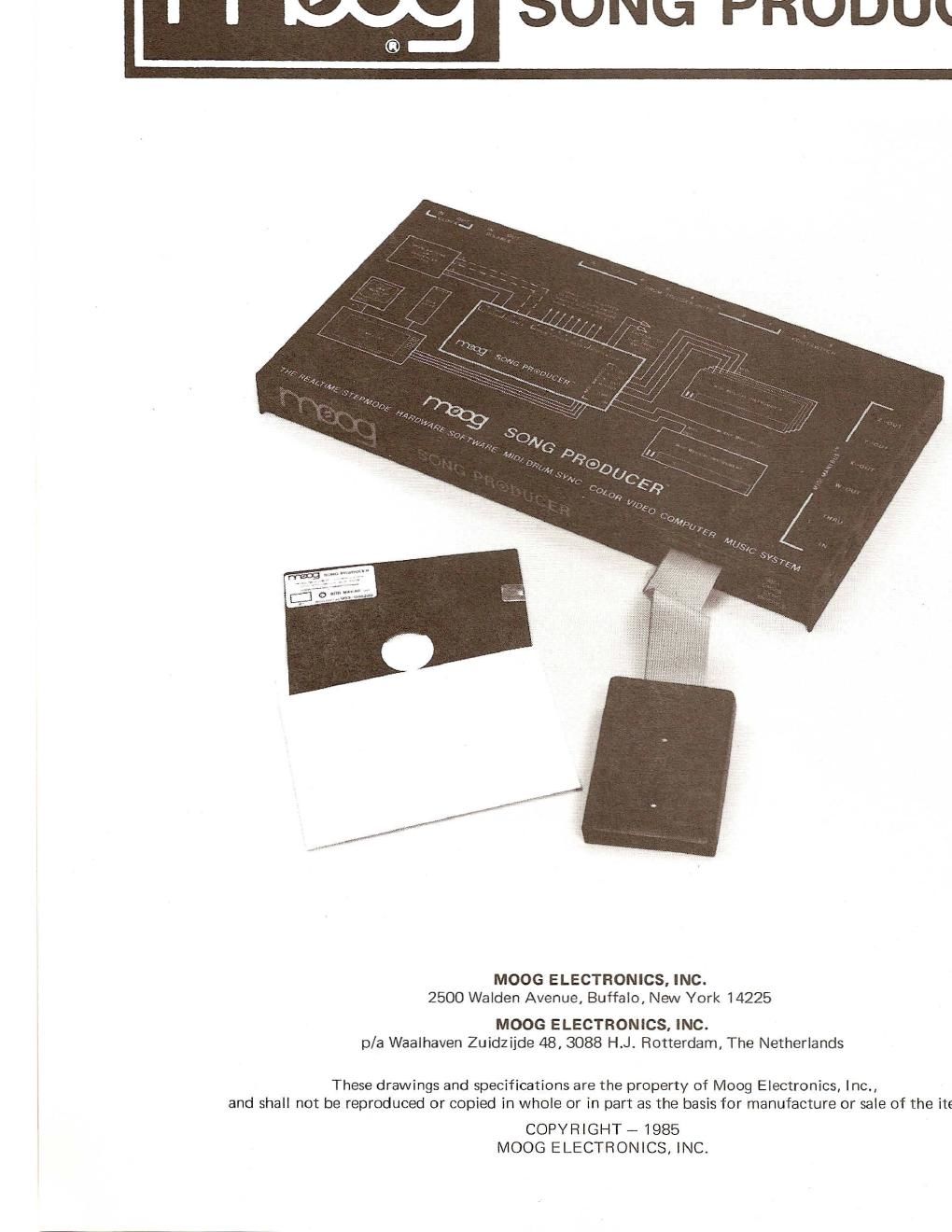

Moog song producer service manual
This is the 13 pages manual for moog song producer service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from moog song producer service manual (Ocr-read)
Page 1
ELECTRICAL SPECIFICATIONS Operati.g Te mper atur e R ange M ax' P ower Con surt ption 15 degrees C to 40 degrees C 320 millia r tps Tr iggeri: 9 Inn t _lIDedance Input Th reshold V oltage Positi ve edge l O OK shunted by .Oluf +1 volt TTL cortpatible 100 microseconds 1 Hertz to 5 00 Hertz Mini .:::! seWidth C lod < Rate outp t D::- ':ve Puse ~;i 'th Clock Rate LSTTL cortpatible 665 microseconds nominal 1 H ertz to 300 H ertz Lo gic Inp ~ Ir:;>eeance I ut es r.old olt age L ogic O U tput Dri ve Active Low = Disabled l O OK shunted by .Oluf 1 volt minimum' T TL compatible A ctive Low = Disabled LSTTL cortpatible Logic Ou tput rivePu se "dd-=." 0 tp ts . .he se_ ected A cti ve H igh = Trigger LST T L cortpatible 2 00 millisecond s n ominal. S oftware selectable for latched or pulsed outputs . M EMORY MAP ;, RESS H EX =:c MAL READ/WRIT E FUNC TION W RIT E U17 IlWIl CONTR OLREGIS TER R EAD Ul7 IIWll STATUS DATAREGISTER WRI TE U1 7 "WI! TRAN SMIT DATA R EGISTER R E AD U17" WI ! RECEIVE DATA REGISTER ' f."RITE U1 8 " XII C R R EAD U18"X II SD R WRITE U18" X" TD R RE AD U1 8 IIX" RDR W RIT E U 19 "yll CR READ U 19 "yl1 SDR w "RIT E U 19 "yll TDR ~ D U19 llyn RDR i'l' TITE U20 "Zll CR READ U2 0 IIZI1 SDR I '.XI E U20 "ZI1 TDR REA U 20 HZ" RDR W RITE DR UM TRIGGE R lATCH W RI E DRUMTR IGG ER lAT CH ' f.~':'E C ONTRO LlA TCH '3L E CONTROL lAT CH ~ D F O OTSWITCH I NPU S Ri'7I. D FOOTSWITCH IN PUTS
Page 2
SONG PRODUCER TESTIADJUSTMENT ITROUBLESHOOTI NG I ncluded on the master diskette is a complete menu-driven program for testing the Song Producer hardware module . All th at is needed to run the test program are ~wo standard "guitar" cables, one MIDI cable and a footswitch. (Guitar cables may be used to simulate the footswitch.) To access the test program, insert the S Ong Producer disk and type the following, W hen the program finishes loading . the co mputer will proMPt "READY". N ext . type RUN (RETURN) and follow the enu-driven instructions displayed on the screen . IF THE TEST PROGRAM RUNS SUCCESSFULLY. IT V ERIFIES PROPER OPERATION OF THE SONG PRODUCER HARDWARE. Therefore, any problems encountered are probably related to user e rror and the associated portion of the o wner's manual should be reread carefully. If calibration becomes necessary the program will prompt the necessary a d justments. Use a 1/8" (3 mm) flat blade screwdriver for the only two Song Producer a djustments - CLOCK PULSE WIDTH and DRUM P ULSE WI DTH I f troubleshooting becomes necessary, the program will proMPt appropriately .The co v er must then be removed using a #1 P hillips screwdriver and a 1/4" phone plug-to-test probe cable used to complete the procedure. Tro ubleshooting is best l eft to qualified service personnel. Please consult the authorized service center listo r factory service department for assistance . lif-G~= -::-:: 1L it!) 0J ~ !':----C~==n"0I '-" .:..J .-~-~~ TEST P ROBE CABLE SONG PRODUCER C I RCU IT DE SCR IPT ION THE SONG PR ODUCER CONSISTS HARDWARE CIRCUITS : 1. The Dat a and Address Bus Buffer 2 . Address Decoder 3 . Control Latch Driver 4. Drum Output Circuit 5. Clock In and Clock In Disable Circuit 6. Clock Out and Clock OUt Disable Circuit 7. Fo o tswitch Inputs NOTE :ALL ADDRESSES ARE IN HEX AND ARE FOLLO W ED PARENTHETICALLY BY THEIR DECIMAL EQUIVALENT. 8 . MIDI Input and Output Circuits 9. Interrupt Disable Circuit The bus buffers consist of U8 and U9. U8 is a bi-directional bus transceiver connected to the data bus to buffer outgoing and incoming data signals to and from the Commodore 64. The enable and data direction on U8 is controlled from the 1/01 line and the R/W line from the Commodore 64. The 1/01 line sets the memory map boundaries to DEOO ( 56832) to DEFF (5708 7 ). U9 buffers th e 1/01 line and R/WQ line, the ~ 2 clock and the first three address lines from the Commodore 64. The address decoder consists of UII and U3 and decodes addresses in the range of DEOO (56832) to DEOF (568 4 7). UII sel ects one of eight lines by pulling that line low. Since the least significant address bit is AI , UII decode s e verysecond address. For example, DEOO w ill stay low for both DEOO (56832) and DEO I (5683 3).U3 inhibits any address decoding above DEOF (568 4 8).The decoded address for each one of the subsections may be found on the schematic. The Co n trol Latch Driv er consists of U7 and U2B a n d is memory mapped at DEOA (56842). A me m oryw rite to thi s address causes a logic "1" to appear at U7 Pin 3. T his signal is " NANDED" by U2B to provide a control latch clock which results in data bus transfer to the appropriate latches on the falling edge of the ~ 2 clock. DO =Clock Disab le Output (U4B) "0" = Dis able Clock Disable Inp u t (USB) " 1" = Disable Interrupt Disable (USA) "0" = Disable Drum Trigger Pulse / Latch Select " 0" = Latch . " 1"= Pulse
