Moog slim phatty owner manual
This is the 75 pages manual for moog slim phatty owner manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from moog slim phatty owner manual (Ocr-read)
Page 1

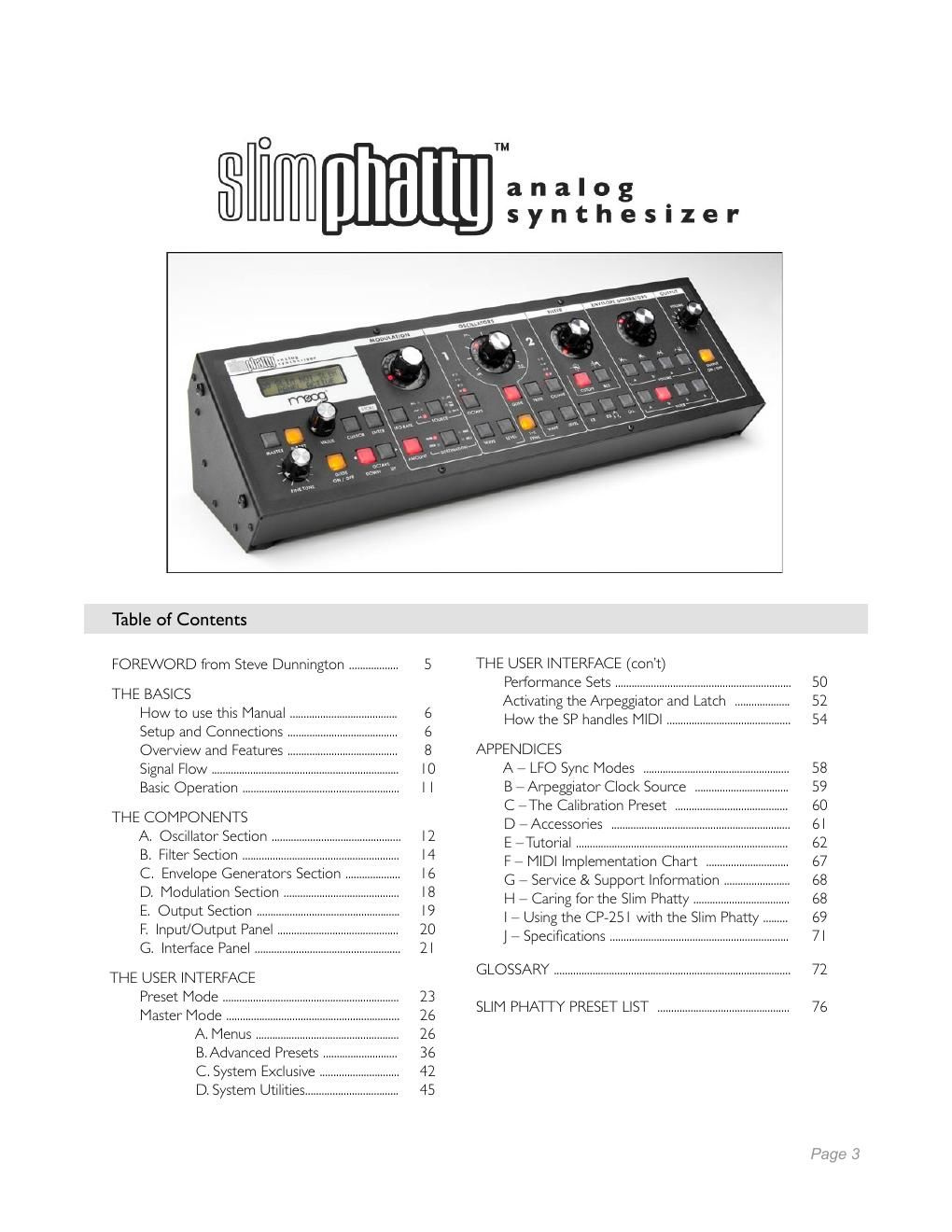

Table of Contents SAFETY INFORMATION 4 FOREWORD 5 THE BASICS 6 How to Use this Manual 6 Setup and Connections 6 Overview and Features 8 Signal Flow 10 Basic Operation 11 THE COMPONENTS 12 A. The Oscillator Section 12 B. The Filter Section 14 C. The Envelope Generators Section 16 D. The Modulation Section 18 E. The Output Section 19 F. Input/Output Panel 20 G. Interface Panel 21 THE USER INTERFACE 23 Preset Mode 23 Master Mode 26 A. Master Mode Menus 26 B. Advanced Preset menus 36 C. SYSEX (System Exclusive) Menus 42 D. System Utilities Menus 45 Performance Sets 50 Activating the Arpeggiator and Latch 52 How the SP handles MIDI 54 APPENDICES 58 Appendix A - LFO Sync Modes 58 Appendix B - Arpeggiator Clock Source 59 Appendix C - The Calibration Preset 60 Appendix D - Accessories 61 Appendix E - Tutorial 62 Appendix F - MIDI Implementation Chart 67 Appendix G - Service and Support Information 68 Appendix H - Caring for the Slim Phatty 68 Appendix I - Using the CP-251 with the Slim Phatty 69 Appendix J - Specifications 71 GLOSSARY 72 SLIM PHATTY PRESETS 76 SAFETY INFORMATION *** Important Safety Instructions - Please Read *** WA R N I N G - W h e n u s i n g e l e c t r i c p r o d u c t s , b a s i c p r e c a u t i o n s s h o u l d a lw ay s b e fo l l owe d , i n c l u d i n g t h e following: 1) Read all the instructions before using the product. 2) Do not use this product near water – for example, near a bathtub, washbowl, kitchen sink, in a wet basement, or near a swimming pool or the like. 3) This product should be used only with a car t or stand that is recommended by the manufacturer. 4) This product, in combination with an amplifier and headphones or speaker s, may be capable of producing sound levels that could cause per manent hear ing loss. Do not operate for a long period of time at a high volume level or at a level that is uncomfor table. If you experience any hearing loss or ringing in your ear s, you should consult an audiologist. 5) The product should be located so that its location does not interfere with its proper ventilation. 6) The product should be located away from heat sources such as radiators, heat registers, or other products that produce heat. 7) The product should be connected to a power supply only of the type described in the operating instructions or as marked on the product. 8) The power supply cord of the product should be unplugged from the outlet when left unused for a long period of time. 9) Care should be taken so that objects do not fall upon and liquids are not spilled into the keyboard or front panel. 10) The product should be ser viced by qualified personnel when: a) The power supply cord or the plug has been damaged b) Objects have fallen, or liquid has been spilled onto the product c) The product has been exposed to rain d) The product does not appear to operate normally or exhibits a marked change in performance e) The product has been dropped or the enclosure damaged. 11) Do not attempt to ser vice the product beyond that described in the user-maintenance instructions. All other ser vicing should be referred to qualified service personnel. DA N G E R – I N S T RU C T I O N S P E RTA I N I N G TO RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO P E R S O N S : Do not open the chassis. There are no user ser viceable par ts inside. Refer all ser vicing to qualified personnel only. GROUNDING INSTRUCTIONS: T h i s p r o d u c t m u s t b e g r o u n d e d . I f i t s h o u l d m a l f u n c t i o n o r breakdown, grounding provides a path of least resistance for electrical current to reduce the risk of electric shock. This product is equipped with a cord having an equipment grounding connector and a grounding plug. The plug must be plugged into an appropriate outlet that is properly installed and grounded in accordance with all local codes and ordinances. DA N G E R – Improper connection of the equipment-grounding connector can result in a risk of electric shock. Check with a qualified electrician or ser viceman if you are in doubt as to whether the product is properly grounded. Do not modify the plug provided with this product – if it will not fit in the outlet, have a proper outlet installed by a qualified electrician.
Page 2
Foreword We here at Moog Music are grateful that you have chosen the Slim Phatty® analog synthesizer for your musical pursuits, and hope you find it to be an inspiring instrument for years to come. Good things can come in small packages – and the Slim is no exception. Making the Slim Phatty has been a labor of love, transforming the electronic workings of the Little Phatty® into a package that is easily used as a desktop or a 3U rack-mount unit. Its small stature doesnt take away from the massive sounds it can produce. This should come as no surprise as it is a direct descendant of the Little Phatty, Minimoog Voyager®, as well as the original Minimoog® Model D synthesizers. These are all instruments that bear the stamp of Bob Moogs creative genius for designing analog synthesizer technology with soul. It is our honor and pleasure to bear his torch forward into the future. Id like to thank the team who helped bring this instrument from the drawing board to reality: Cyril Lance, Amos Gaynes, Rick Shaich, Eric Church, Dean Cavnaugh, Chris Stack, and of course, our fearless leader, Mike Adams. Special thanks are due to Greg Kist who authored this fine manual. Also, thanks to you, our customer, for using our products and pushing the boundaries of music forward. Finally Id like to pay tribute to my friend, Bob Moog. We remember you not only for your genius as an instrument designer, but for your genius at living with passion, generosity, humility, and mirth. The only thing more gratifying than making excellent musical tools for our customers is hearing what they think of our instruments and hearing the music they create. Take a moment to register your Slim Phattys warranty. This can be done either on our website Moogmusic.com, or by regular mail with the enclosed warranty card. Visit our website to learn the latest information about the Slim, and our other products, many of which make great playmates for your new instrument. Our forum is filled with enthusiasts who are always willing to share knowledge, tips, ideas, and music with their fellow forum members. It is a remarkable on-line community. If you have a moment, drop us a line and let us know how you are enjoying your Slim Phatty. Most important – make some music! May your sonic adventures with your Slim Phatty be full of disco ver y and enjoyment. Steve Dunnington Product Development Specialist Moog Music Inc. FOREWORD
