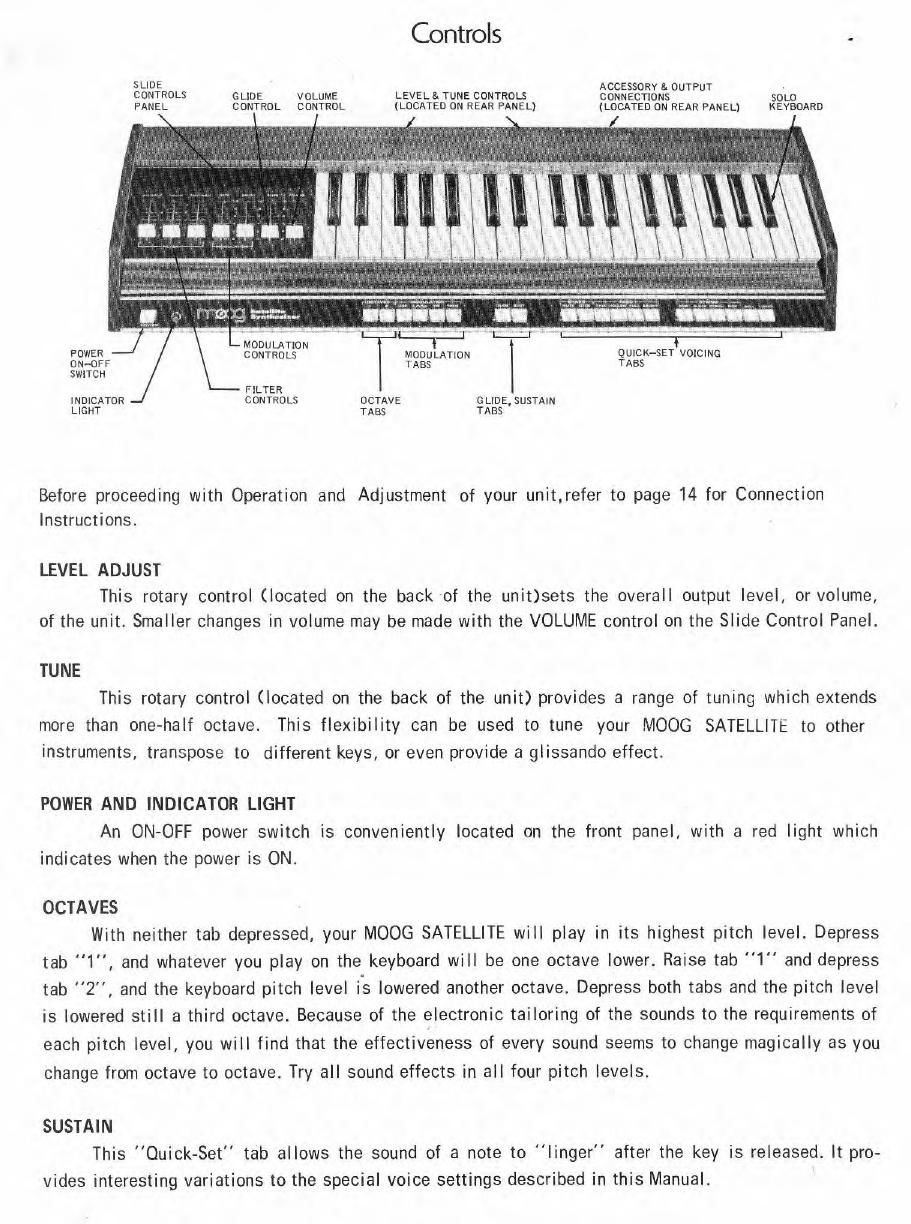

Controls .

SLIDE ACCESSORY & OUTPUT
CONTROLS GLIDE VOLUME LEVEL& TUNE CONTROLS CONNECTIONS

SOLO
PANEL CONTROL CONTROL (LOCATED ON REAR PANEL) (LOCATED ON REAR PANEL) KEYBOARD

MODU LATION

1
POWER CONTROLS MODULATION QUICK-SET VOICING
DN-OFF TABS TABS
SWITCH
FILTER
INDICATOR CONTROLS OCTAVE G LIDE, SUSTAIN
LIGHT TABS TABS

Before proceeding with Operation and Adjustment of your unit,refer to page 14 for Connection
Instructions.

LEVEL ADJUST
This rotary control (located on the back of the unit)sets the overall output level, or volume,
of the unit. Smaller changes in volume may be made with the VOLUME control on the Slide Control Panel.

TUNE

This rotary control (located on the back of the unit) provides a range of tuning which extends
more than one-half octave. This flexibility can be used to tune your IVIOOG SATELLITE to other
instruments, transpose to different keys, or even provide a glissando effect.

POWER AND INDICATOR LIGHT

An ON-OFF power switch is conveniently located on the front panel, with a red light which
indicates when the power is ON.

OCTAVES

With neither tab depressed, your MOOG SATELLITE will play in its highest pitch level. Depress
tab ",1 and whatever you play on the keyboard will be one octave lower. Raise tab "1" and depress
tab 2, and the keyboard pitch level is lowered another octave. Depress both tabs and the pitch level
is lowered still a third octave. Because of the electronic tailoring of the sounds to the requirements of
each pitch level, you will find that the effectiveness of every sound seems to change magically as you
change from octave to octave. Try all sound effects in all four pitch levels.

SUSTAIN
This Quick-Set" tab allows the sound of a note to linger" after the key is released. It pro-
vides interesting variations to the special voice settings described in this Manual.
